- Product Details
- {{item.text}}
Quick Details
-
OS:
-
ANDROID,IOS, WINDOWS
-
Screen Type:
-
NA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
TK666
-
Car Make:
-
Universal
-
Product name:
-
GPS Tracking Devices
-
Name:
-
TK666 Automotive GPS Tracker
-
Tracking system:
-
WWW.18GPS.NET
-
Application:
-
Car Motorcycle Ebike Electric Car Fleet
-
Network:
-
GSM
-
Usage:
-
Vehicles Real Time Monitoring
-
Battery capacity:
-
120mA
-
Certification1:
-
ce
-
Certification2:
-
FCC
-
Certification3:
-
RoHS
Quick Details
-
Car Fitment:
-
Universal
-
Resolution:
-
NA
-
Function:
-
Real Time Tracking, ACC Detection, GeoFencing etc.
-
OS:
-
ANDROID,IOS, WINDOWS
-
Screen Type:
-
NA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
TK666
-
Car Make:
-
Universal
-
Product name:
-
GPS Tracking Devices
-
Name:
-
TK666 Automotive GPS Tracker
-
Tracking system:
-
WWW.18GPS.NET
-
Application:
-
Car Motorcycle Ebike Electric Car Fleet
-
Network:
-
GSM
-
Usage:
-
Vehicles Real Time Monitoring
-
Battery capacity:
-
120mA
-
Certification1:
-
ce
-
Certification2:
-
FCC
-
Certification3:
-
RoHS

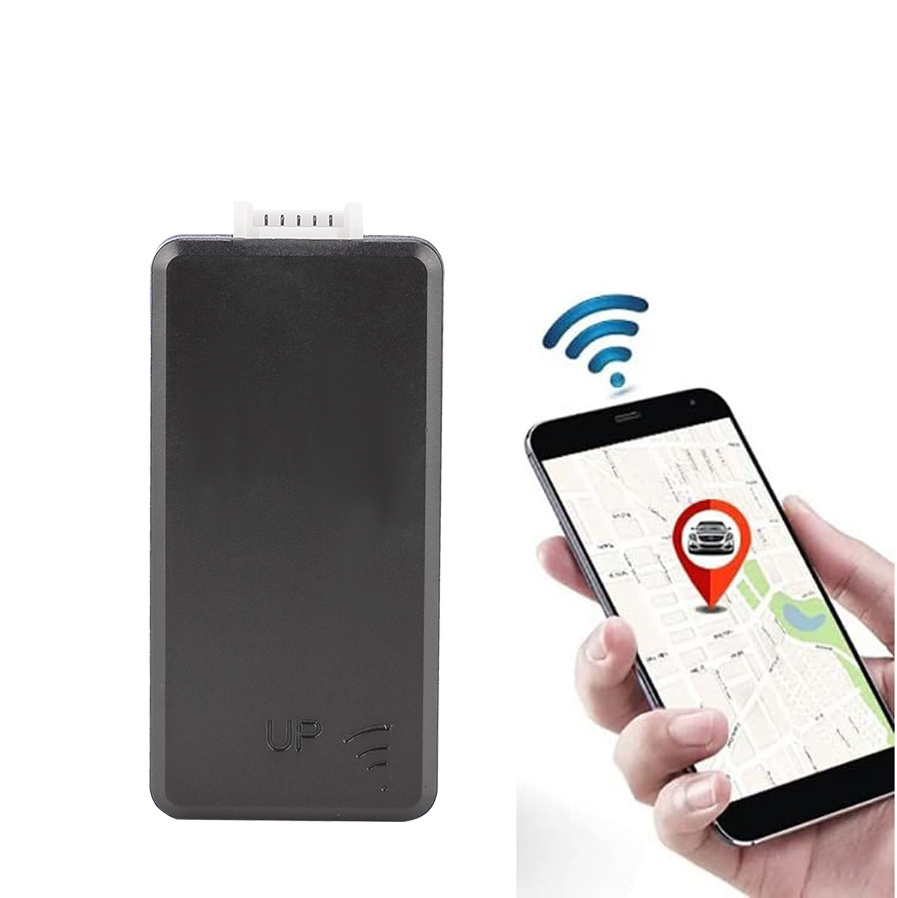

GPSSKY 2G GPS Tracker for Vehicles No Monthly Fee Platform with Fuel Sensor
Track Any Thing that Has A Battery
Products Specifications
|
GSM Specifications
|
|
|
|
GSM Channel
|
GSM
|
|
|
GPRS Class
|
12
|
|
|
GSM Band
|
850/900/1800/1900MHz
|
|
|
Communication Protocol
|
TCP/IP
|
|
|
GPS Specifications
|
|
|
|
GPS Chipset
|
AT6558
|
|
|
Positioning Mode
|
GPS/BDS/LBS
|
|
|
Number of Channels
|
64
|
|
|
Positioning Accuracy
|
10m
|
|
|
Tracking Sensitivity
|
-160dbm
|
|
|
Capture Sensitivity
|
-148dBm
|
|
|
GPS Signal
|
L1,1575.42MHz C/A
|
|
|
Working Parameters
|
|
|
Device Agreement
|
GT06/JT080/HY
|
|
Working Voltage
|
7-90V DC
|
|
Working Current
|
≈55mA(12vDC)
|
|
Standby Current
|
<2.5 mA
|
|
Battery
|
80mA
|
|
Dimensions
|
72mm×36mm×15mm
|
|
Net Weight
|
36g
|
|
Working
Temperature
|
-20℃～+70℃
|
|
Working Humidity
|
5%～90%RH
|
Product Functions
Real-time Tracking Anywhere and Anytime
Enjoy your real-time tracking and check the 180 Days historical traces at anytime you want.
For fleet management purposes, the historical data is a key to help reduce fuel cost and CO2 emissions. Check the historical routes together with the reports, get your fleet in control.
For fleet management purposes, the historical data is a key to help reduce fuel cost and CO2 emissions. Check the historical routes together with the reports, get your fleet in control.
Anti-theft Alerts & Geofencing — Detect Suspicious Activity & Attempted Theft
With built in G-Sensor and ACC detection , tracker could detect motion of vehicle and send to cloud server via 2G network in time. At the same time, user could receive instant alerts via APP, PC or SMS. Excellent for instantly alerting you to vandalism, attempted theft, or accidental damage these alerts can save you a trip to the mechanic or help you notify the police before it’s too late. With advanced Geofencing, create custom safe areas via the app or PC.
With built in G-Sensor and ACC detection , tracker could detect motion of vehicle and send to cloud server via 2G network in time. At the same time, user could receive instant alerts via APP, PC or SMS. Excellent for instantly alerting you to vandalism, attempted theft, or accidental damage these alerts can save you a trip to the mechanic or help you notify the police before it’s too late. With advanced Geofencing, create custom safe areas via the app or PC.
OVERSPEED ALERTS
You can't always be there to make sure your drivers are driving at safe speed. With software in PC or Phone you can monitor in time driving speed or enable instant overspeed a lerts on your phone or PC.
You can't always be there to make sure your drivers are driving at safe speed. With software in PC or Phone you can monitor in time driving speed or enable instant overspeed a lerts on your phone or PC.
Optional Alerts
Power Off Alert, Anti-Thieft Alert, GEO Fence Alert and m
any other optional alerts are available on tracking platform.
Remotely Cut Off Fuel and Electricity
When user need to cut off vehicle Fuel/ Electricity/ Engine remotely, user could easily send vehicle a command via SMS/APP in phone or software platform in PC. After receiving this command, the vehicle engine will stop within 10s-20s. Once stop, vehicle will not move until receiving a Recover Command from user.
Note : Only when vehicle's running below 20KM/h, then the vehicle could stop after receiving this command. If the vehicle's running above 20KM/h, then vehicle engine can't be shut down.
When user need to cut off vehicle Fuel/ Electricity/ Engine remotely, user could easily send vehicle a command via SMS/APP in phone or software platform in PC. After receiving this command, the vehicle engine will stop within 10s-20s. Once stop, vehicle will not move until receiving a Recover Command from user.
Note : Only when vehicle's running below 20KM/h, then the vehicle could stop after receiving this command. If the vehicle's running above 20KM/h, then vehicle engine can't be shut down.
Optional Accessories
*SOS Panic/Emergency Button
(Addtional Cost Required )
Smartly Call/SMS/App Alert user after driver press this button
*MIC/Voice Monitor
(Addtional Cost required)
Voice Monitor
Product Features
Small and Light
Super mini in size: L78.0mm*W26.0mm*H15.0mm. NET weight only 42g! Easy for carry and hidden installation.
2G Wide Coverage & Unlimited Distance
Supports countries in Asia, and Africa.
Track cars, Vehicles, trucks,business assets, motorcycles, fleets,
eBikes, Mopeds and Scooters
Access Anywhere
This tracker is accessible on your smartphone or any computer. There is no limit on the number of devices you can use!
Tracking Reports & Trip Replay
It will save complete trip history for all your vehicles!
We offer various kinds of reports to track the performance of your vehicles and the driver.
Utilizing any spreadsheet application, trip details can be retained and analyzed. Manage what matters!
Does NOT Drain the Battery
Support smart
battery save mode.
This device does NOT drain the vehicle battery. It consumes less than 0.3 percent of the vehicle battery per day. Furthermore, it periodically detects the input voltage to assure that the battery has enough power for vehicle functions. The device will automatically power off before the input voltage goes too low (optional settings via SMS command: range 9~87 Volts) to protect the vehicle battery.
Route Fitting Algorithm
We implemented unique Route Fitting Algorithm (RFA) to make the routes be more accurate and precise.
Connecting location points on the map has been out of date, and sometimes the GPS error brings you incorrect trace on the map. Now with RFA, we can show you real routes, no missing details, and more accurate mileage, which are crucial for the driving performance reports.
We implemented unique Route Fitting Algorithm (RFA) to make the routes be more accurate and precise.
Connecting location points on the map has been out of date, and sometimes the GPS error brings you incorrect trace on the map. Now with RFA, we can show you real routes, no missing details, and more accurate mileage, which are crucial for the driving performance reports.
Monitor Multiple Devices in One Account
If you’re a Fleet manager who needs to manage many vehicles, we will offer you a manage account so that you could monitor all devices you have on one APP/Web platform. You can check vehicles status/location and monitor driver behavior anywhere .
If you’re a Fleet manager who needs to manage many vehicles, we will offer you a manage account so that you could monitor all devices you have on one APP/Web platform. You can check vehicles status/location and monitor driver behavior anywhere .
Tracking platform
|
Compatible Protocols
|
GT06/JT808/HY
|
|
Compatible Public Tracking Platforms
|
GPS Server, Trackway, Ruhavi
|
|
GPSSKY Platform:
http://www.18gps.net
App :YUNZHIXING |
Platform Demo:
http://www.18gps.net/dealer/?mds=d630165c65834293bb27ac1460d75e68
|
|
FREE, Accurate, Powerful
|
18GPS.net
is the first choice platform of car positioning which performs functions:
Vehicle Networking Monitoring Center Platform
WAP Query Platform Service Provider Value Added Service System Mobile Vehicle Networking Social Account |
Packaging
Why Choose Us
14 YEARS
R&D experience in GPS Tracking Industry
ORIGINAL DEVELOPER
and Patent Owner of TK003 Series
TOP R&D TEAM
and Ability in GPS Tracking Industry in Shenzhen, China
A PROFESSIONAL GPS SOLUTION PROVIDER
