• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time
• Lowest guaranteed frst year and annual degradation;
• Designed for compatibility with existing mainstream system components
• Higher return on Investment

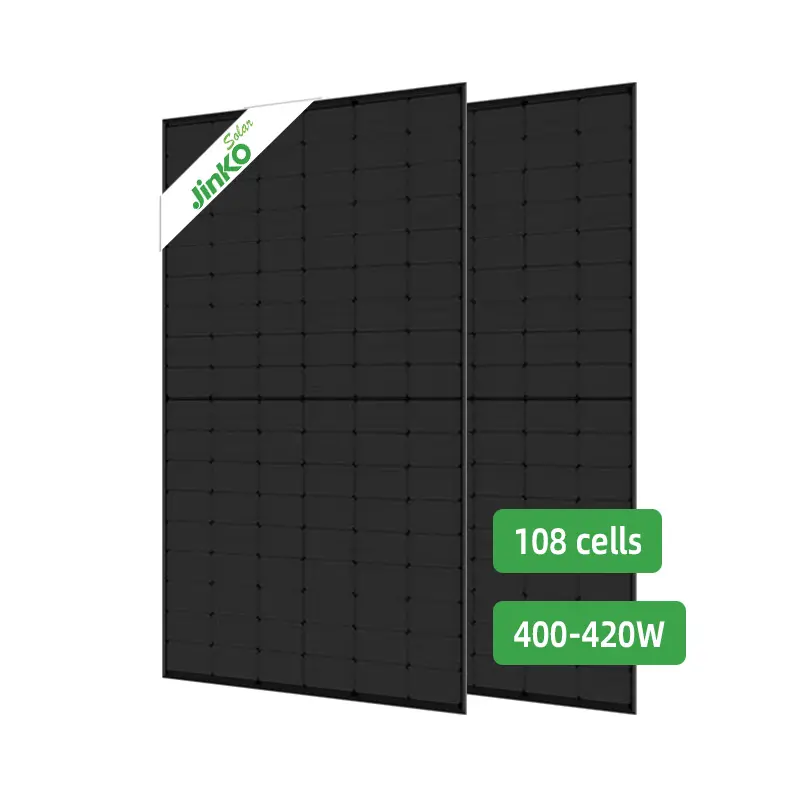

High power up to 420W
• Up to 21.51% module efciency with high density interconnect technology
• Multi-busbar technology for better
light trapping efect, lower series resistance and improved current collection
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
30Years
-
Brand Name:
-
Jinko
-
Model Number:
-
JKM420N-54HL4-B
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1722*1134*30mm
-
Frame:
-
Anodized Aluminium Alloy
-
Cell Type:
-
N type Mono-crystalline
-
Weight:
-
22kg
-
Solar cell:
-
108
-
Certificate:
-
CE TUV, CE TUV
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, All Black, N-TYPE
-
Panel Efficiency:
-
21.51%
-
Warranty:
-
30Years
-
Brand Name:
-
Jinko
-
Model Number:
-
JKM420N-54HL4-B
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1722*1134*30mm
-
Frame:
-
Anodized Aluminium Alloy
-
Cell Type:
-
N type Mono-crystalline
-
Weight:
-
22kg
-
Solar cell:
-
108
-
Certificate:
-
CE TUV, CE TUV
Products Description
High customer value
High reliability
• Minimized micro-cracks with innovative non-destructive cutting technology • Ensured PID resistance through cell process and
module material control • Resistant to harsh environments such as salt,ammonia, sand, high temperature and high humidity areas •Mechanical performance up
to 5400 Pa positive load and 2400 Pa negative load
module material control • Resistant to harsh environments such as salt,ammonia, sand, high temperature and high humidity areas •Mechanical performance up
to 5400 Pa positive load and 2400 Pa negative load
High energy yield
•
Excellent IAM (Incident Angle Modifer) and low irradiation performance, validated by 3rd party certifcations • The unique design
provides optimized energy production under inter-row shading conditions • Lower temperature coefcient (-0.34%) and operating
temperature
• Up to 21.51% power.
provides optimized energy production under inter-row shading conditions • Lower temperature coefcient (-0.34%) and operating
temperature
• Up to 21.51% power.
Product Paramenters
|
Mechanical Characteristics
|
|
|
|
|
||||
|
Cell type
|
|
monocrystalline silicon cell
|
|
|
||||
|
Number of half Cell
|
|
108(54×2)
|
|
|
||||
|
Module Dimension
|
|
1722×1134×30mm
|
|
|
||||
|
Module Weight
|
|
22kg
|
|
|
||||
|
Front Glass
|
|
3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
|
|
|
||||
|
Frame
|
|
Anodized aluminium alloy
|
|
|
||||
|
Junction Box
|
|
IP68 Rated
|
|
|
||||
|
Output wire
|
|
TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
|
|
|
||||
Performance
|
STC
|
|
|
|
|
|
|||||
|
Module Number
|
JKM400M-54HL4-V
|
JKM405M-54HL4-V
|
JKM410M-54HL4-V
|
JKM415M-54HL4-V
|
JKM420M-54HL4-V
|
|||||
|
Maximum Power(Pmax)
|
400Wp
|
405Wp
|
410Wp
|
415Wp
|
420Wp
|
|||||
|
Optimum Operating Voltage(Vmp)
|
30.42
|
30.52
|
30.62
|
30.79
|
30.91
|
|||||
|
Optimum Operating Current(Imp)
|
13.15
|
13.27
|
13.39
|
13.48
|
13.59
|
|||||
|
Open-circuit Voltag(Voc)
|
36.98
|
37.06
|
37.14
|
37.31
|
37.43
|
|||||
|
Short-circuit Voltage(Isc)
|
13.78
|
13.85
|
13.92
|
14.01
|
14.12
|
|||||
|
Module Efficiency(%)
|
20.48%
|
20.74%
|
21.00%
|
21.25%
|
21.51%
|
|||||
|
Operating Temperature(℃）
|
-40℃~+85℃
|
|
|
|
|
|||||
|
Maximum System Voltage
|
1000/1500VDC (IEC)
|
|
|
|
|
|||||
|
Maximum Rated Fuse Current
|
20A
|
|
|
|
|
|||||
|
Output Power Tolerance
|
0~+3%
|
|
|
|
|
|||||
|
Pmax Temperature Coefficient
|
-0.35%/℃
|
|
|
|
|
|||||
|
Voc Temperature Coefficient
|
-0.28%/℃
|
|
|
|
|
|||||
|
Isc Temperature Coefficient
|
0.048%/℃
|
|
|
|
|
|||||
|
NOCT
|
45±2℃
|
|
|
|
|
|||||
Production Details
IP68 Water proof Junction BoxInnovative full-glue-filled junction box
Outstanding sealability
Outstanding sealability
Sliver and Black Color OptionalAluminum Alloy
120N Tensile Strength Frame
120N Tensile Strength Frame
4mm2 Qualified cable with MC4
500N Tensile Strength
500N Tensile Strength
100% Solar Cells Sorting
Color and performance selection
To ensure the production of high-quality cells, sort out unqualified products such as appearance defects, internal defects, and
lack of process performance.
To ensure the production of high-quality cells, sort out unqualified products such as appearance defects, internal defects, and
lack of process performance.
Middle Test
EVA and appearance inspection
Ensure PT / EVA size meets technical requirements
Ensure that the product is free of scratches, creases, debris, etc.
Ensure PT / EVA size meets technical requirements
Ensure that the product is free of scratches, creases, debris, etc.
Overall inspection
PV Module appearance
Ensure that the product has no color difference and no burrs.Make its reach Grade A standard.
Ensure that the product has no color difference and no burrs.Make its reach Grade A standard.
EL Testing
Solar panel power inspection
Ensure that there are no cracks or defects inside the module.
Ensure that the power meets customer standards.
Ensure that there are no cracks or defects inside the module.
Ensure that the power meets customer standards.
