Quick Details
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SIDITE
-
Model Number:
-
SS-M1
-
Solar collector color:
-
siliver, white etc.
-
Solar collector frame:
-
aluminium alloy
-
Solar collector insulation:
-
rock wool
-
Solar collector angle:
-
up to user
-
Solar collector glass tube:
-
tri-element vavuum tube
-
Solar collector logo:
-
can be customized
-
Solar collector working temperature:
-
-40degree to 300 degree
-
Solar collector tubes:
-
15 to 50 tubes
-
Solar collector tubes efficiency:
-
up to 95%
-
Solar collector work pressure:
-
0.6MPa
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Outdoor, Hotel, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SIDITE
-
Model Number:
-
SS-M1
-
Solar collector color:
-
siliver, white etc.
-
Solar collector frame:
-
aluminium alloy
-
Solar collector insulation:
-
rock wool
-
Solar collector angle:
-
up to user
-
Solar collector glass tube:
-
tri-element vavuum tube
-
Solar collector logo:
-
can be customized
-
Solar collector working temperature:
-
-40degree to 300 degree
-
Solar collector tubes:
-
15 to 50 tubes
-
Solar collector tubes efficiency:
-
up to 95%
-
Solar collector work pressure:
-
0.6MPa

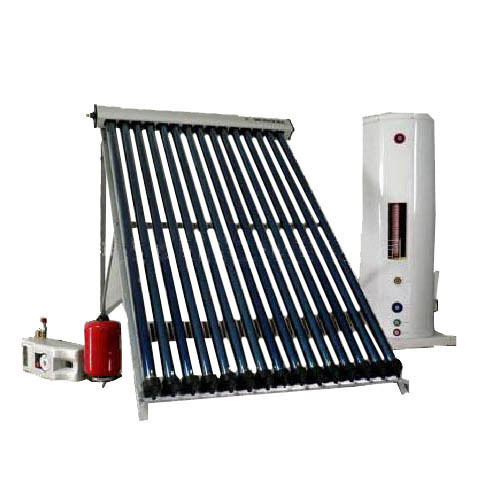

200L Vacuum Tubes Heat Pipe Flat Roof Split Solar Water Heater System
1 Description
The split solar water heater is an active system, because it uses a pump with a controller to circulate
the fluid in the system. Storage tank and solar collector are separate, while the collector is integrated in to
the roof of the building, the tank and the pump station can be installed anywhere of the building.
The piping between the main components is made of brass and a special insulation with high temperature resistance
for solar systems. This system is especially suit able for cold area, even 35 o C.
Now, the split solar water heater is more and more popular in the world.
2 Advantages of SIDITE split solar water heater
1) No disorder water tank on your roof
SIDITE split solar water heater is using a high efficiency solar collector on your roof
and a high ly pressurized storage tank in the house. I ntegrated into the roof of the building perfectly ;
2) Anti-freezing, perfect for cold climate
Heat pipe evacuated tubes collector do not carry the risk of freezing which will destroy other systems.
Importantly, preventing them from freezing and bursting in cold climates and it can be used all year round in the cold climate ;
3) The perfect solar collector for domestic hot water heating system can be combined with existing energy source,
such as your gas water heater, electric water heater, boiler, etc ;
4) There is an auxiliary heating device-electric heater booster in the tank which can help to provi de hot water in case of cloudy or rainy days,
you will no t need to worry about it ;
5) No water inside the tube s , the system can still in service even with several tubes breakage ;
6) Completely automatic ;
7) Cut out your energy bills .
Hot water heating (on average) accounts for 26% of your annual energy bill.
With a SIDITE solar water heater you could generate enough solar energy to heat 70% of your hot water, FREE , year after year!
Technical Data:
| Split solar water heater(with one copper coil ) | |||||||
| Model | SS-M1-15 | SS-M1-20 | SS-M1-25 | SS-M1-30 | SS-M1-40 | SS-M1-50 | |
| Split water tank | volume of water tank | 150L | 200L | 250L | 300L | 400L | 500L |
| Insulating Layer | Polyurethane Foaming ,Thickness:55mm-60mm | ||||||
| Outer Tank | Color Steel Plate(enamal white),Thickness:0.55mm | ||||||
| Inner tank | tank: stainless steel 304; Thickness:1.2-1.5mm; Normal working pressure: 6 bar; Test pressure: 10 bar | ||||||
| Copper coil | 15m | 15m | 15m | 20m | 20m | 30m | |
| Solar collector | Tube quantity | 15 | 20 | 25 | 30 | 40 | 50 |
| Vacuum tube | Length 1800mm, diameter 58mm; three-target tube;High boron and silicon content 3.3 | ||||||
| Heat Pipe | red copper TU1+water;transfer power:>=150W;Working pressure:4Mpa;welding pressure:4Mpa | ||||||
| Frame | Aluminum Alloy,Thickness:2.0mm | ||||||
| Working station (Pump station) | Controller | SR961S | |||||
| Pump | RS15/6(WILO) | ||||||
| Expansion tank | Italy | 8 Liter | 8 Liter | 8 Liter | 12 Liter | 12 Liter | 18Liter |
