API 6A Expanding Gate Valves consists of one gate body and related gate segment. The contact surface between are designed to
milled V structure. API 6A Expanding Gate Valves are available in sizes 2-1/16 "through 4-1/16". working pressure of 2000 psi
through 5000 psi.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
WKM
-
Brand Name:
-
JinGao
-
Material:
-
Alloy Steel
-
Applicable Industries:
-
Energy
-
Usage:
-
Oil Gas Industrial
-
Working pressure:
-
2000 psi ~ 5000 psi
-
Size:
-
2-1/16'-7-1/16'
Quick Details
-
Port Size:
-
2-1/16'-7-1/16'
-
Warranty:
-
1 years
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
WKM
-
Brand Name:
-
JinGao
-
Material:
-
Alloy Steel
-
Applicable Industries:
-
Energy
-
Usage:
-
Oil Gas Industrial
-
Working pressure:
-
2000 psi ~ 5000 psi
-
Size:
-
2-1/16'-7-1/16'
Flowline Products

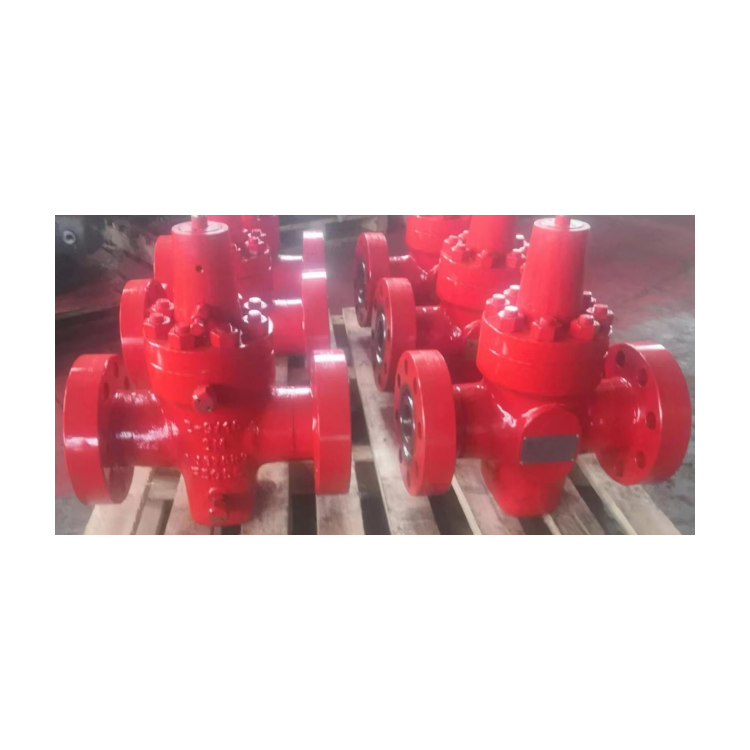

Oilfield API 6A 2-1/16' to 7-1/16' 2000 3000 5000PSI WKM Expanding Gate valve
API 6A Expanding Gate Valves Features
1.The upper/lower roller thrust bearing minimizes operation torque;
2.Seats can be lubricated from grease injection fitting to reduce abrasion and promote long life;
3.Non-rising stem design minimize operation space
Dimensions for Flanged End Expanding Valve
A: Range face to face
B: Bore centerline to bottom of valve
C: Bore centerline to handwheel top
D: Hand wheel Diameter
A: Range face to face
B: Bore centerline to bottom of valve
C: Bore centerline to handwheel top
D: Hand wheel Diameter
2000 psi Working Pressure
|
Size
|
Bore(mm)
|
A(mm)
|
D(mm)
|
B(mm)
|
C(mm)
|
Weight(kg)
|
|
2-1/16'
|
52.4
|
295
|
280
|
125
|
470
|
45
|
|
2-9/16’
|
65.1
|
233
|
330
|
150
|
475
|
60
|
|
3-1/8'
|
79.4
|
359
|
330
|
190
|
550
|
100
|
|
4-1/16’
|
103.2
|
435
|
405
|
435
|
425
|
160
|
3000 psi Working Pressure
|
Size
|
Bore(mm)
|
A(mm)
|
D(mm)
|
B(mm)
|
B(mm)
|
Weight(kg)
|
|
2-1/16'
|
52.4
|
371
|
330
|
125
|
475
|
50
|
|
2-9/16'
|
65.1
|
422
|
330
|
150
|
490
|
95
|
|
3-1/8’
|
79.4
|
435
|
400
|
190
|
550
|
150
|
|
4-1/16'
|
103.2
|
511
|
480
|
240
|
635
|
260
|
|
7-1/16’
|
179.4
|
714
|
760
|
355
|
615
|
260
|
5000 psi Working Pressure
.
|
Size
|
Bore(mm)
|
A(mm)
|
D(mm)
|
B(mm)
|
C(mm)
|
Weight(kg)
|
|
2-1/16’
|
52.4
|
371
|
330
|
130
|
470
|
75
|
|
2-9/16’
|
65.1
|
422
|
330
|
150
|
550
|
105
|
|
3-1/8’
|
79.4
|
473
|
400
|
190
|
555
|
150
|
|
4-1/16’
|
103.2
|
549
|
480
|
240
|
635
|
280
|
|
7-1/16’
|
179.4
|
813
|
760
|
355
|
715
|
600
|
