- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WellPower
-
Model Number:
-
WP-C50GF
-
Speed:
-
1800RPM
-
Engine model:
-
4BT3.9-G2
-
Alternator:
-
Stamford/Marathon/Leroy-Somer
-
Control panel:
-
DeepSea/ComAp/SmartGen
-
Battery brand:
-
Camel
-
Soundproof:
-
Powder coated
-
Noise level:
-
65dBA@7m(no Load)
-
Fuel consumption:
-
0.22L/KW.H
-
Fuel Tank:
-
6-8 Hours
-
Certification:
-
ISO/CE/COC/SASO
Quick Details
-
Rated Voltage:
-
208/220/230/240V
-
Rated Current:
-
138.8A
-
Frequency:
-
60HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WellPower
-
Model Number:
-
WP-C50GF
-
Speed:
-
1800RPM
-
Engine model:
-
4BT3.9-G2
-
Alternator:
-
Stamford/Marathon/Leroy-Somer
-
Control panel:
-
DeepSea/ComAp/SmartGen
-
Battery brand:
-
Camel
-
Soundproof:
-
Powder coated
-
Noise level:
-
65dBA@7m(no Load)
-
Fuel consumption:
-
0.22L/KW.H
-
Fuel Tank:
-
6-8 Hours
-
Certification:
-
ISO/CE/COC/SASO

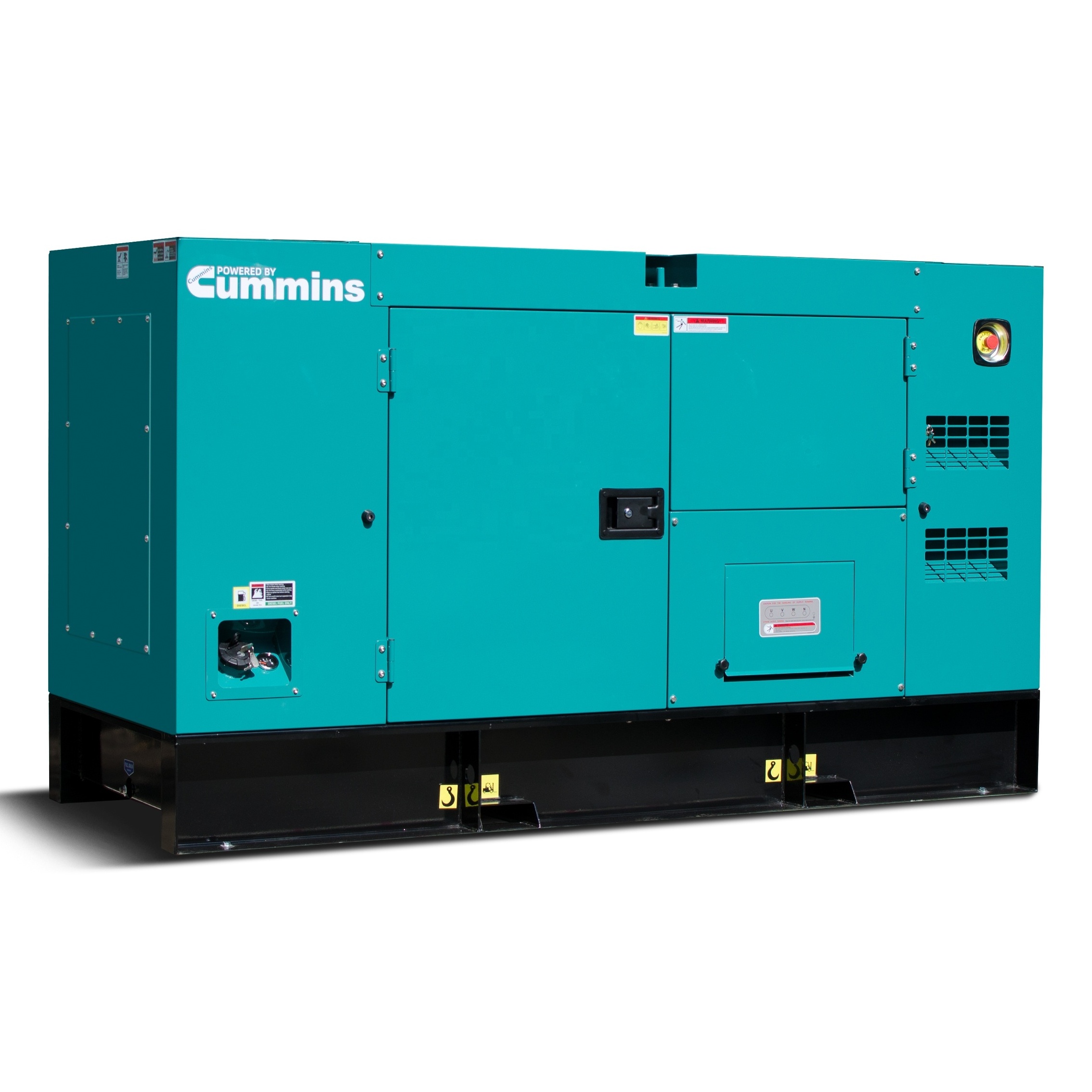

Powered by Cummins Stamford super silent diesel generator 50 kva
Product Description
Cummins Diesel Generator 50KVA
| Genset Technical Data | |
| Genset Model | WP-C50GF |
| Rated Voltage | 208/220/230/240V |
| Rated frequency | 60HZ |
| P.F(COS) | 0.8 |
| Prime Power | 45KVA |
| Standby Power | 50KVA |
| Diesel Engine Technical Data | |
| Engine Model | Cummins 4BT3.9-G2 |
| No. of Cylinders | 6 cylinders, Vertical in line |
| Aspiration | Turbocharged |
| Bore×Stroke | 102mm x120mm |
| Displacement | 3.9L |
| Compression ratio | 17.3:1 |
| Prime/Standby Power/Speed | 40KW/44KW / 1800rpm |
| Speed Governor | electrical |
| Cooling System | Forced water cooling cycle |
| Fuel Consumption at 100% Load | 221g/kwh@1800rpm |
| Alternator Data | |
| Optional brands | Stamford/Leroy Somer/Marathon/WellPower |
| Prime power | 45KVA |
| Frequency/speed | 60Hz/1800RPM |
| Exciter type | Single bearing, Brushless, Self-excited with AVR |
| Power factor | 0.8 |
| Voltage adjust range | ≥5% |
| Voltage regulation NL-FL | ≤±1% |
| Insulation Grade | H |
| Protection Grade | IP23 |
| Control Panel | |
| Optional brands | Deespea/Smartgen/ComAp |
Powered by Cummins Stamford super silent diesel generator 50 kva with 8 hours standard fuel tank
Powered by Cummins Stamford super silent diesel generator 50 kva with 150 gallons big fuel tank
Powered by Cummins Stamford diesel generator 50 kva open type
Trailer type diesel generator 50 kva
