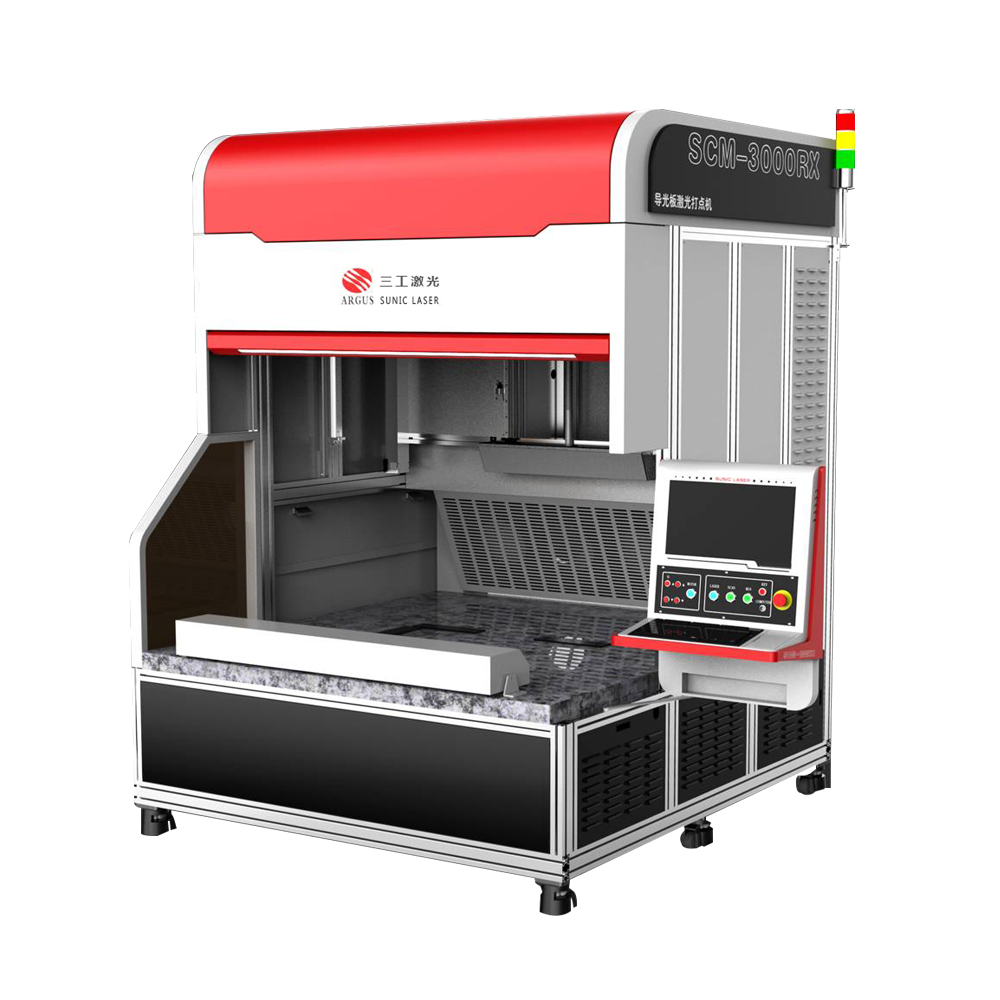

ARGUS galvo laser marking jeans SCM3000 Dynamic CO2 Laser Marking Machine

ARGUS galvo laser marking jeans SCM3000 Dynamic CO2 Laser Marking Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $40000

≥10 Sets

US $30000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cooling Mode:: WATER COOLING

Control Software:: 3X

Place of Origin:: China

Brand Name:: ARGUS

Control System Brand:: ARGUS

Marking Head Brand:: ARGUS

Weight (KG):: 800 KG

Marking Area:: 800mm*800mm

Core Components:: laser source

Laser Wavelength:: 10.64μm

Laser Power:: 150W 250W 350W 500W

Max.Marking Area:: 1500x1500mm

Marking Speed:: ≤7000mm/s

Repetition Precision:: 0.01mm

Laser Frequency:: 20kHz~200kHz

Min.Letter Size:: 0.3mm

Power Consumption:: ≤7kW

Laser Source:: Coherent Laser Tube

Quick Details

Working Accuracy:: 0.03mm

Graphic Format Supported:: AI, BMP, PLT, Dwg, DXP

Laser Type:: CO2

Cooling Mode:: WATER COOLING

Control Software:: 3X

Place of Origin:: China

Brand Name:: ARGUS

Control System Brand:: ARGUS

Marking Head Brand:: ARGUS

Weight (KG):: 800 KG

Marking Area:: 800mm*800mm

Core Components:: laser source

Laser Wavelength:: 10.64μm

Laser Power:: 150W 250W 350W 500W

Max.Marking Area:: 1500x1500mm

Marking Speed:: ≤7000mm/s

Repetition Precision:: 0.01mm

Laser Frequency:: 20kHz~200kHz

Min.Letter Size:: 0.3mm

Power Consumption:: ≤7kW

Laser Source:: Coherent Laser Tube

Main Features

1. This machine adopts 3D dynamic galvanometer control system. Original imported 250/350/500W metal RF laser tube. Laser power and cutting speed can be adjustable, maximally energy saving.

2. 3D dynamic galvanometer head, one time scan area could reach to 1500*1500mm. 3D dynamic galvo control system and automatic up&down Z axis ensure the best processing results.

3. Equipped with foot switch for easy operation. Exhaust fans ensure good exhaust suction effects and environment friendly processing.

4. Fully enclosed laser optical system,no adjustment or maintenance needed,can be used directly after installation.
5. Professional industrial thermostatic circulation of water cooling system ensures more stable running and lower consumption.
6 . Equipped exhaust fans ensure good exhaust suction effects and environment friendly processing.

7. Strict multiply protection control system can be applied in wild operation temperature, to make sure the stable continuous working of 24h of laser marking system.

8. High precision and speed performance with jeans washing working, 20% higher efficiency than the similar models in the market.

Product Parameter

Model	SCM3000
Max working Area	1500x1500mm
Laser power	>350W
Power Consumption	≤ 7 kWh
Life Span	Over 20000 Hours
Marking Speed	≤10000mm/s
Worktable	MDF/Strip/Honeycomb Worktable
Laser Source	US Coherent RF Metal Laser Source
Laser Wavelength	10.64μm
Laser Frequency	20kHz~200kHz
Focusing method	3D Dynamic Focusing System
Repetition Precision	0.01mm
Min.Line Width	0.5mm(1100x1100mm), 0.7mm(1500x1500mm)
System Support	Windows 7
Output Compatibility	Auto CAD, Photoshop, CorelDRAW etc
File Formats	PLT, DXP, BMP, JPG, AI etc
Software Character	Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting
Power Supply	380V/50Hz~60Hz
Cooling Way	Circulation of Water Cooling

Galvo Scanning System

3D dynamic Galvo head ,
one time scan area could
reach to 800*800mm.
3D dynamic galvanometer
control system ensure the
best processing results .

RF Laser Metal Tube

Original imported metal RF

laser tube with high laser

power , excellent laser spot .

Stable laser generation and life

time of more than 20000hrs.

Self - Developed Software

Sunic Laser self - developed software supports multiple formats to meet your needs . Application under Windows interface , AutoCAD, PLT , Al Photoshop compatible , ect supportive.

Marking Area

Large marking area : Max

marking area 1500*1500mm

Can realize marking , cutting ,

punching , carving process.

Top 1 Jeans Denim Laser Washing Machine SCM1400L Model

CO2 Dynamic Laser Marking Machine adopts dynamic focusing technology, make the laser dot more fine, faster marking speed, better effect, suitable for a wide range of engraving or cutting, here listed advantages as followings:

1. Permanent ：Mark will not subside because of environmental reasons (touch,acidic or reducing gas,

high or low temperature etc), 20% higher efficiency than the similar models in the market.

2. Non-contact ：Laser marking is a non-mechanical “light knife” for processing, the work piece will not produce stress after marking.The working surface will not produce corrosion, non-toxic, non-polluting.

3. High precision for engraving & marking ：CO2 Dynamic laser marking machine can engrave fine pattern , the minimum line width can reach to 0.2mm. Engraving&Marking result is clear, durable and beautiful.

4. Low operating costs ：Low energy consumption, no consumptive materials, and therefore lower operating costs.

5. High efficiency ：CO2 Dynamic Laser Marking Machine’s Engraving & Marking speed can reach to

7-10m/s, three times than that of traditional laser marking machine, marking process can be completed

in seconds.

6. Large marking area ：With the high power laser tube and the 3D Scanner technology, the CO2 Dynamic Laser Marking Machine can work on large size materials such as the clothes/leather/LGP processing.

About Sunic Group

Wuhan Sunic Group are a professional laser machines and solar panel products lines equipment manufacturer since 1998.We are specialized in design, research, manufacture, sales and service for laser machines. Sunic Group would like to be customer's technical consultant,support in laser&solar equipment to make further development and progress together.

We supply customized solution for different materials processing , such as invitation cards, wedding cards, pop up cards, Pop up books,candy box,paper products,acrylic, PMMA, LGP, jeans wash,leather, Fabric,textiles,wood,MDF,laminate materials,marble, package film, metal, plastic products and so on.

What kind of laser machine and model should I choose?

You can tell us your processing material, working size and detail requirement, detail work by picture or video so that we can judge whether our machine can meet your need.

What kind of materials does the laser machine can process?

We have different laser machines, such as Fiber laser, CO2 Laser, UV Las- er Green Laser. Normally Fiber laser can process metal and plastic. CO2 laser is for processing non metallic materials, such as Acrylic, PMMA,Wood, Glass, Leather, Jeans, Paper, Textiles Garments and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass, crystal and some special processing job.

Is it easy to operate?

We will send you manual and guide video in English, I can teach you how to operate the machine. lf you still can not learn how to use it, we can help you by Team viewer online help software. Or we can talk by phone email or other contact ways.

What s your guarantee. in case the machine breaks down?

The machine has one year guarantee. If it breaks down, generally speaking our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

How will you do the after- sale service?

We will firstly check your problems online through Team viewer, E-mail, Whatsapp or other contact way, if it is easy to handle it, we will guide you online to fix it or send you the spare parts for replacement.

What is your equipment lead time?

Fiber laser marking machine lead time is around 7 working days. CO2 laser engraving&cutting machine lead time is around 2-3 weeks. 3D dynamic CO2 laser marking machine lead time is around 10 working days.
