Quick Details
-
Warranty:
-
18 Months
-
Loading Capacity:
-
3600kg/4000kg
-
Lifting height:
-
1800mm/1900mm/2000mm
-
Driving system:
-
one cylinder&cables
-
Unlocking release:
-
24V electrical unlocking system
-
Lifting speed:
-
1.8m/min
-
Control system:
-
Button on electrical control box
-
Package size:
-
4700*550*1100mm*1370kg
-
Power supply:
-
220V/380V,50HZ/60HZ,1PH/3PH,2.2KW
-
Useful platform width:
-
3914mm
-
Power pack:
-
2.2KW
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OEM
-
Model Number:
-
DFPP
-
Warranty:
-
18 Months
-
Loading Capacity:
-
3600kg/4000kg
-
Lifting height:
-
1800mm/1900mm/2000mm
-
Driving system:
-
one cylinder&cables
-
Unlocking release:
-
24V electrical unlocking system
-
Lifting speed:
-
1.8m/min
-
Control system:
-
Button on electrical control box
-
Package size:
-
4700*550*1100mm*1370kg
-
Power supply:
-
220V/380V,50HZ/60HZ,1PH/3PH,2.2KW
-
Useful platform width:
-
3914mm
-
Power pack:
-
2.2KW
Product Description

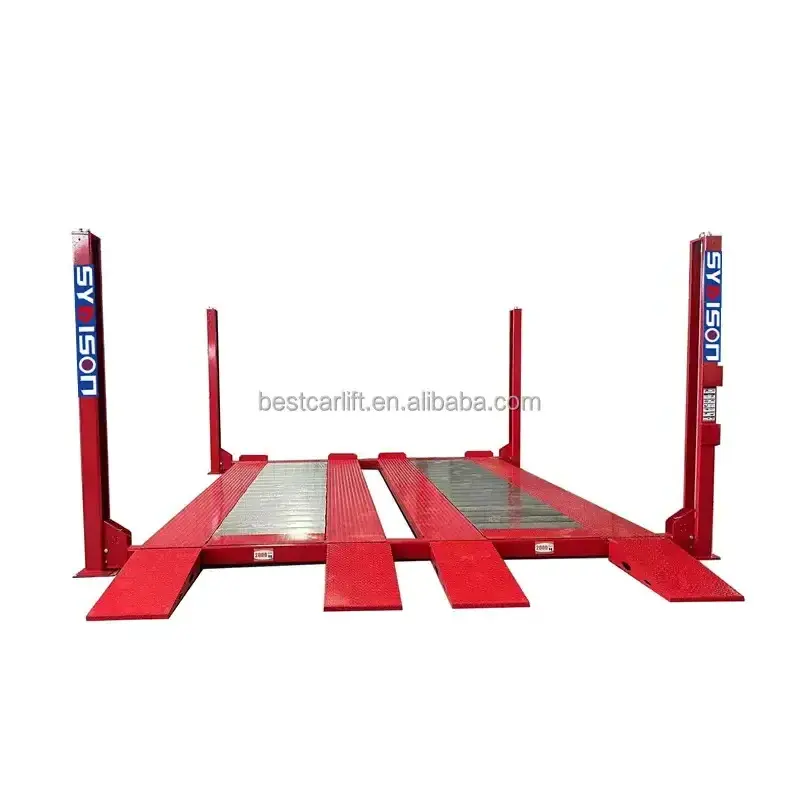

This type is used for parking pick-up trucks and equivalent vehicles. With the unique tire protect side beam design, the driver doesn’t need to worry about running off the platform by mistake anymore. In the center of the platform, 6 pieces plastic oil drip tray or full wave plates or full steel plates are optional. The user can easily take them off and turn the lift from a parking lift into a service lift instantly.provides maximum opportunities for parking & storing up to 4 cars. Multiple safety devises ensure reliable and stable operation and the elimination of middle posts makes it a great space-saver.
Product Details
Product Features
– Double-wide design for 4 vehicles
– Dependent parking
– 4000kg overall lifting capacity
– Ground car height: 1750mm/1850/1950/2050
– single hydraulic cylinder
– Mechanical anti-falling locks allow multiple stopping heights
– Low wear, proven hydraulic technology
– Position of control panel is adjustable
– Protective device against loosening and breaking of steel rope
– Surface treatment: powder coating
– Dependent parking
– 4000kg overall lifting capacity
– Ground car height: 1750mm/1850/1950/2050
– single hydraulic cylinder
– Mechanical anti-falling locks allow multiple stopping heights
– Low wear, proven hydraulic technology
– Position of control panel is adjustable
– Protective device against loosening and breaking of steel rope
– Surface treatment: powder coating
Production Data
|
Model
|
DFPP
|
|
Type
|
Parking Lift
|
|
Lifting capacity
|
3600kg/4000kg
|
|
Lifting height
|
1800mm/1900mm/2000mm
|
|
Useful platform width
|
3914mm
|
|
Unlocking release
|
24V electrical unlocking system
|
|
Driving system
|
one cylinder&cables
|
|
Power pack
|
2.2KW
|
|
Operation mode
|
Key Switch
|
|
Operation voltage
|
24V
|
|
Lock release
|
Multi stages lock position
|
|
Lifting speed
|
1.8m/min
|
|
Lifting time
|
55S
|
|
Control system
|
Button on electrical box
|
|
Package size
|
4700*550*1100mm*1370kg
|
|
Power supply
|
220V/380V,50HZ/60HZ,1PH/3PH,2.2KW
|
|
Treatment
|
Powder coating standard, hot galvanized optional
|
Size Drawing
