Automatic self cleaning screen Water Filter Waste Water Treatment/Water Filter

Automatic self cleaning screen Water Filter Waste Water Treatment/Water Filter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2000

≥10 Pieces

US $1400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 100 kg

Product Name:: self cleaning filter

Model:: DLD-FL-100

Body/Pipe material:: Carbon steel/SS304

Colour:: Green/Blue/Red

Maximum flow (m³/h):: 50

Inlet size (DN):: 100

Minimum working pressure (Mpa):: 0.2

Maximum pressure (Mpa):: 1

Control method:: Automatic

Pressure loss:: 0.2bar

Quick Details

Place of Origin:: Hunan, China

Brand Name:: CDFS

Material:: Metal

Weight (KG):: 100 kg

Product Name:: self cleaning filter

Model:: DLD-FL-100

Body/Pipe material:: Carbon steel/SS304

Colour:: Green/Blue/Red

Maximum flow (m³/h):: 50

Inlet size (DN):: 100

Minimum working pressure (Mpa):: 0.2

Maximum pressure (Mpa):: 1

Control method:: Automatic

Pressure loss:: 0.2bar

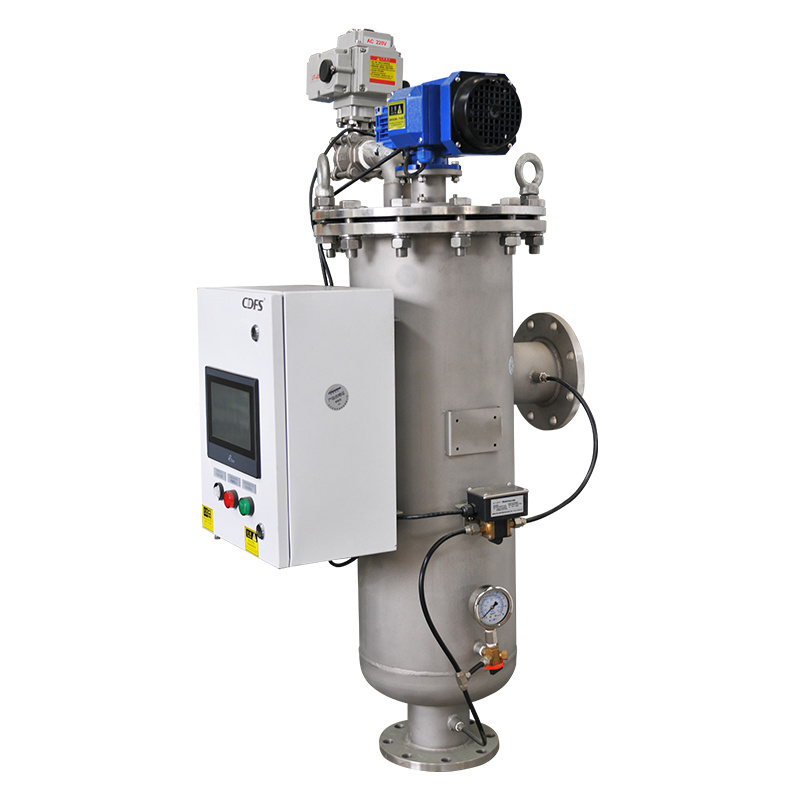

Brush Self Cleaning Filter

Products Description


           The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered

           water then flows out through the outlet.

           When the particles accumulated to a certain number and the pressure differential increases to the pre-determined level, the

           flushing cycle starts.

           It include two steps: First, the automatic drain valve opens on the drainage outlet. Then, electronic motor drives the cleaning

           brushes which are inside the screen, the solids are expelled through the drain valve.

           Filters continue to supply filtered water even during the flushing cycle.The whole working system is controlled by a smart box

           which has several control modes: pressure differential, time, manual and PLC.

Self Clean Filter As Fine Filtration


              Protection water treatment system nozzle from blockage.

             Use

            a stainless steel screen mesh to remove the silt, sand and scale dirt from the water. Irrigation water containing few organics could also be filtered.

              The available flow rate is from 20m3/h to 1500m3/h.

Features


           1

            .  Filtration precision:

            120 micron standard in irrigation.(20-400 micron)

           2.

            Material:

           carbon steel with

            pickling phosphating inside and outside with good

             antiseptic effect

            3.

             Screen:

            SS304 with good

             antiseptic

             4.

              Space

             :  Small with large flowrate

              5.

               Backwash:

              Automatic and the

               water supply won't stop when cleaning

              6.

               Water consumption:

              Less than 1% of filtering water,pressure loss don't over 0.02 Mpa

             7.

              Customzied service:

             Pressure,material and power if there are specialized requirements,welcome to contact us
