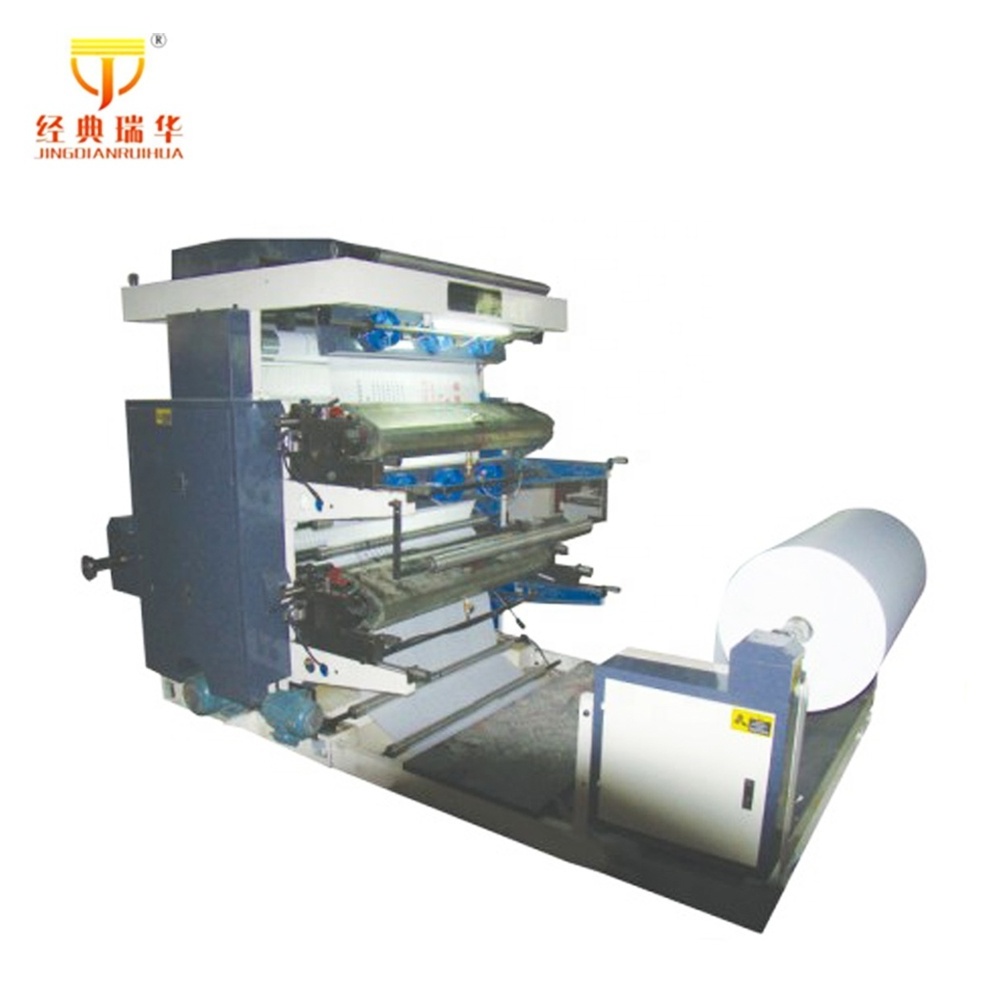

Two Color Paper Cup Printing Machine for Printing Plastic Bag Good Sale

Two Color Paper Cup Printing Machine for Printing Plastic Bag Good Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $6200

≥2 Sets

US $6150

≥3 Sets

US $6100

≥4 Sets

US $6000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimensions(L*W*H):: 2.8m*2.2m*2.2m

Weight:: 1700 KG

Print Dimension:: 800*1000mm

kind:: Two Color Paper Cup Printing Machine

color:: 2color

max diameter of roller materials:: 450mm

thickness:: 1.7-2.38mm

Tension sensor:: include

power brakes:: include

inking motor:: include

Brands:: JINGDIANRUIHUA

EPC:: include

speed:: high speed 2 colour flexo printing machine

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: JINGDIANRUIHUA

Voltage:: 380V 50Hz 3Phase 4Line

Dimensions(L*W*H):: 2.8m*2.2m*2.2m

Weight:: 1700 KG

Print Dimension:: 800*1000mm

kind:: Two Color Paper Cup Printing Machine

color:: 2color

max diameter of roller materials:: 450mm

thickness:: 1.7-2.38mm

Tension sensor:: include

power brakes:: include

inking motor:: include

Brands:: JINGDIANRUIHUA

EPC:: include

speed:: high speed 2 colour flexo printing machine

Two Color Paper Cup Printing Machine for Printing Plastic Bag Good Sale

Product Description

Professional Manufacturer

1. Safety first, quality first .

2. Strict and advanced workshop management system .

3. The human production, people-oriented .

4. High quality products to provide high quality environment

The main features:

1. Take it easy, accurate color, long life.

2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.

3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink.

4. Use special synchronous belt drive, accurate printing size.

5. Two sets of heating devices, including central heating and constant temperature control system for group control.

6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium.

7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced.

8 With cold wind bellows, and can effectively prevent produce with ink adhesion after printing

9. Print produce are clear and good arrangement quality.

Main Technical Variables

Type	YT-2600	YT-2800	YT-21000	YT-21200
Max. Effective Printing Width	560mm	760mm	960mm	1160mm
Max. Web Width	600mm	800mm	1000mm	1200mm
Max. Printing Speed	50m/min	50m/min	50m/min	50m/min
Max. Mechanical Speed	60 m/min	60 m/min	60 m/min	60 m/min
Max. Diameter of Roll Material	450mm	450mm	450mm	450mm
Internal Diameter of Roll Core	76mm	76mm	76mm	76mm
Rang of Repeat Printing Length	191-914mm	191-914mm	191-914mm	191-914mm
Accuracy of Registration	±0.2mm	±0.2mm	±0.2mm	±0.2mm
Plate Thickness(Both side adhesive included)	2.38mm	2.38mm	2.38mm	2.38mm
Heating Power	4Kw	6Kw	8Kw	10Kw
Total Power	8Kw	10Kw	12Kw	14Kw
Weight of Machine	1800kg	2000kg	2200kg	2600kg
Overall Dimension(LWH) mm	2500×1700×2200	2500×1900×2200	2500×2100×2200	2500×2300×2200

Printing Samples

Packaging & Shipping

1. Machine will be tested before shipping

2.Packing : If shipped FCL, stretch Film wrapping with anti rust treatment; if shipped LCL, stretch film wrapping with anti rust treatment, wooden case package.
