12V 220V High Speed Wire Rope Mini Used Wakeboard Trawl Boat Fishing

12V 220V High Speed Wire Rope Mini Used Wakeboard Trawl Boat Fishing

FOB Reference Price: Get Latest Price

≥1 Sets

US $100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 110v-460v 50hz/60hz 1.85kw 2.3kw or 2ph/3ph

Model:: A Type B Type C Type

Usage Way:: Vertical Lifting/Horizontal Lifting

Loading Weight:: 300/400/500/750kg for Single-Rope 600/800/1000/1500kg for Double-Rope

Diameter of Steel Wire Rope:: 5.0mm/6.0mm Of Oily/Galvanized Airline Noni-Rotation Steel Wire Rope

Lifting Height:: 25m-60m 25m for Standard

Lifting Speed:: 15-24m/min

Cover Material:: Aluminum and Electrostatic Spraying

Clutch:: Without Clutch

Quick Details

Warranty:: 1 Year

Place of Origin:: Hebei, China

Product Name:: 12V 220V High Speed Wire Rope Mini Used Wakeboard Trawl Boat Fishing

Voltage:: 110v-460v 50hz/60hz 1.85kw 2.3kw or 2ph/3ph

Model:: A Type B Type C Type

Usage Way:: Vertical Lifting/Horizontal Lifting

Loading Weight:: 300/400/500/750kg for Single-Rope 600/800/1000/1500kg for Double-Rope

Diameter of Steel Wire Rope:: 5.0mm/6.0mm Of Oily/Galvanized Airline Noni-Rotation Steel Wire Rope

Lifting Height:: 25m-60m 25m for Standard

Lifting Speed:: 15-24m/min

Cover Material:: Aluminum and Electrostatic Spraying

Clutch:: Without Clutch

12V 220V High Speed Wire Rope Mini Used Wakeboard Trawl Boat Fishing

Product Description

Production Description of 12V 220V High Speed Wire Rope Mini Used Wakeboard Trawl Boat Fishing

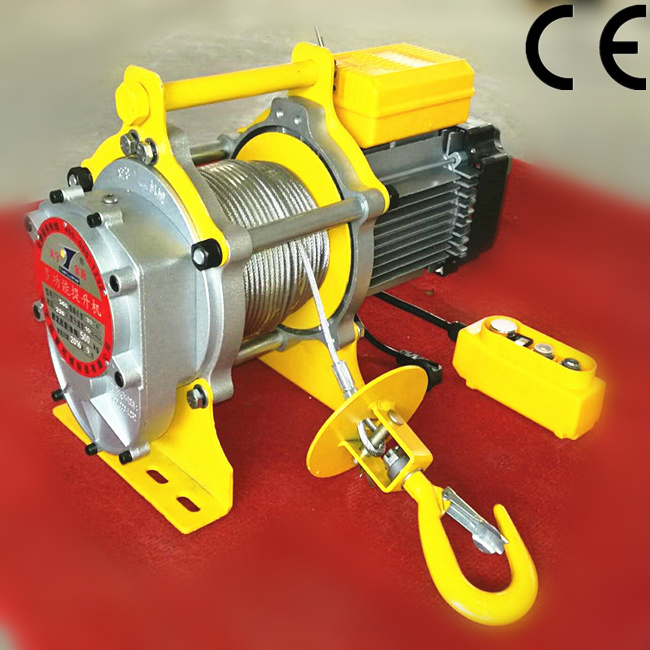

Models of Aluminum Electric Winch

Aluminum Electric Winch A Type

500kg for single rope

1000kg for double rope

Aluminum Electric Winch B Type (380V)

750kg for single rope

1500kg for double rope

Aluminum Electric Winch B Type

300kg for single rope

600kg for double rope

Production Details of Aluminum Electric Winch

1. Item			12V 220V High Speed Wire Rope Mini Used Wakeboard Trawl Boat Fishing
2. Voltage			110v-460v Single Phase/3 Phases Customized
3. Power			1.85kw/2.3kw 2ph/3ph
4. Loading Weight			Single-Rope for 300kg Double-Rope for 600kg Single-Rope for 500kg Double-Rope for 1000kg Single-Rope for 750kg Double-Rope for 1500kg
5. Diameter of Steel Wire Rope			5.0mm or 6.0mm of 19*7 galvanized non-rotation steel wire rope
6. Lifting Height			25m for standard maximum is 60m
7. Lifting Speed			15-24m/min
8. Clutch			Without Clutch
9. IP			IP52
10. H.S Code			8428909090
11. Warranty of electric cable pulling winch			A. 12 months guarantee for main body of the electric hoist; B. We provide free maintenance for spare parts, but the new components replaced should be paid; C. Delivery with English version user manual, parts manual, test certificates, class certificate and all other related documents; E. Technique support: within 24 hours response, lifelong technical consulting support.
For Customer:			1.Loading capacity? (kg) 2.Working speed? (m/min) 3.Wire rope length or lifting height? (m) 4.Power supply? (110V--460V). Or customized. 5.Where does it use? 6.What does the winch use for? (For horizontally pulling or vertically lifting? ) 7.QTY?(set) 8.FOB/CFR/CIF or air transportation or express price?(If needs, please tell us your nearest destination port.) 9.Any other special demands?

Production Flow

Packaging & Shipping

Exhibition & Fair

CE & ISO Certificate

Why Choose Us?

Why Choose Us?

FAQ

1.Q: Are you the direct factory?

A: Y es, we are the direct factory for 24 years even though we registered as a foreign trading company.

The address of our factory is: No. 18 South Road, No. 2 West Ring, Donglv Industry Zone, Qingyuan District, Baoding City, Hebei Province, China. Sincerely welcome to come and visit!

2.Q: MOQ?

A: One set is ok.

3.Q: Can you accept payment terms?

A: Alibaba Trade A ssurance , T/T, Western U nion, Credit C ard, etc.

4.Q: Delivery time?

A: If in stock,1~3 days;If not in stock,normal 5~15 days; Or according to the order.

5.Q: Warranty?

A: One year for the electric engine . We can also provide permanent accessories repair and replacement services.

6.Q: Do your products can be customized?

A: Yes,our all kinds of electric winch can be customized design according to each client's demands. And we can provide label and company name customized services.

7.Q: What kinds of certificates about your products?

A: Normally,we have CE,BV,SGS,CUTR certificates,of course our products make some other certificates according to our clients' specific requirements.

8. Q: How to guarantee the quality and operation when the products leave factory?

A: We test each parts of all products before products leave factory and guarantee the successful operation. No-test or failure-test products are prohibited leaving factory.

9. Q: We have a container in other factory or supplier, can you send cargos there?

A: Yes, we will as long as you send us the detailed address of the place you want to send. Or it is also ok when you want to send other cargos to our factory.

10. Q: How can I get a accurate quotation?

A: Tell and send us the product photo you want, electricity voltage, lifting height(length of the steel wire rope), lifting weight, quantities, FOB/CFR/CIF price or other detailed requirements.

11. Q: What is your HS code?

A: 8428909090 for mini crane and aluminum electric winch; 8425110000 for mini electric hoist

12. Q: How about the installation?

A: First, easy installation. Then, along with the cargos packages, we enclose the detailed installation and operation instructions; we can also send you the detailed installation videos.

13. Q: What can be customized about your products?

A: Length and material of the steel wire rope; the electricity voltage; the plug pin; the color and so on.
