Quick Details
-
Weight (KG):
-
50
-
Type:
-
EXTRACTOR
-
Product name:
-
concentrator extractor tank
-
Usage:
-
essential oil herb tea ethanol
-
Name:
-
extraction machine
-
Material:
-
SS304 SS316L
-
Capacity:
-
10L-20T
-
certificate:
-
CE ISO
-
Extraction Type:
-
vaccum pressure Extraction
-
voltage:
-
120V-480V
-
Origin:
-
China wenzhou Lenotank
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LENO
-
Model Number:
-
LNT-7202
-
Weight (KG):
-
50
-
Type:
-
EXTRACTOR
-
Product name:
-
concentrator extractor tank
-
Usage:
-
essential oil herb tea ethanol
-
Name:
-
extraction machine
-
Material:
-
SS304 SS316L
-
Capacity:
-
10L-20T
-
certificate:
-
CE ISO
-
Extraction Type:
-
vaccum pressure Extraction
-
voltage:
-
120V-480V
-
Origin:
-
China wenzhou Lenotank

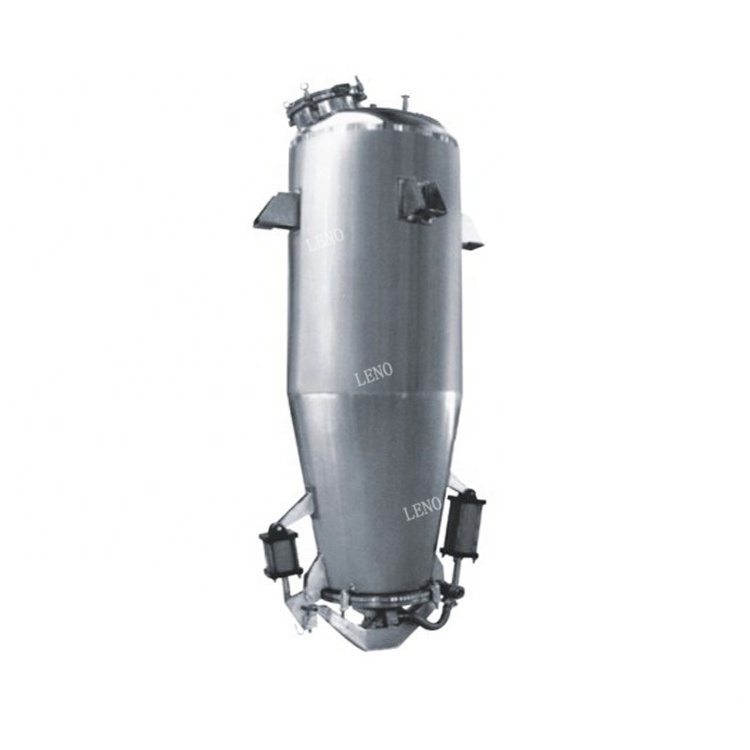

SS304 SS316L ultrasonic herb extract machine
| SS304 SS316L ultrasonic herb extract machine | |
| Profile type | Extractor |
| material | SS304 or SS316L |
| Volume | 10L-20T (Customized) |
| Pressure | Vacuum-1Mpa |
| Structure | inner layer+jacket+insulation |
| heating mode | electric/steam heating |
| Agitator type | customized |
| PARTS DETAILS | 1.Quick open manhole / Pressure manhole |
| 2.Various types of CIP cleaners | |
| 3.Sterile respirator | |
| 4.Adjustable Legs | |
| 5.Inlet and Outlet sanitary valve. | |
| 6.Thermometer (According to customer requirements ). | |
| 7.Paddle blender .(According to customer requirements). | |
| 8.Liquid level meter and lever controller (According to customer requirements) . | |
| 9.Platform | |
Extractor is applicable to the project operations of water decoating under normal and compressed pressure, temperature dipping, thermal refluxing, forced circulation, diacolation, extraction of aroma oil and reclamation of organic solvent,etc, which are in such industries as plants, food and chemistry.
| Specifications |
Volume (L) |
Design pressure tank(Mpa) | Design pressure jacket(Mpa) | Diameter of residue discharging door(mm) |
heating area (m2) |
condensing area (m2) |
cooling area (m2) |
Filtering area (m2) |
| LNT-1T | 1200L | 0.09 | 0.3 | 600mm | 3 | 6 | 1 | 3 |
| LNT-2T | 2300L | 0.09 | 0.3 | 800mm | 4.7 | 10 | 1 | 3 |
| LNT-3T | 3200L | 0.09 | 0.3 | 1000mm | 6 | 12 | 1.5 | 3 |
| LNT-6T | 6300L | 0.09 | 0.3 | 1200mm | 7.5 | 15 | 2 | 5 |
| LNT-8T | 8500L | 0.09 | 0.3 | 1200mm | 9.5 | 18 | 2 | 5 |
| LNT-10T | 11000L | 0.09 | 0.3 | 1200mm | 12 | 20 | 2 | 6 |
| We can customize the equipment according to customer requirements. | ||||||||
| Q1 | Are you trade or manufacturer? |
| A |
We are a factory with an international sales company specialized in support for global distributors. |
| Q2 | Can you provide instant technical consulting services? |
| A |
We are able to discuss technical details and offer suggestions over the phone in English.
You can get the answers in minutes, instead of days. |
| Q3 |
What's the difference between Ready-To-Ship and Customized products? |
| A |
Some of RTS standard products are in stock and ready to ship in 2-3 days.
|
| Q4 | What is the payment terms? |
| A |
We accept Alibaba Trade Assurance Order, also can T/T and L/C. |
| Q5 | How to choose the shipment way? |
| A |
It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) |
| Q6 |
How about the after-sales service? |
| A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. |
