Quick Details
-
Dimension(L*W*H):
-
3500*1550*2300mm
-
Weight:
-
4800 KG
-
Drilling Depth:
-
200m, 200m
-
Mobility:
-
Move by crawler
-
Product name:
-

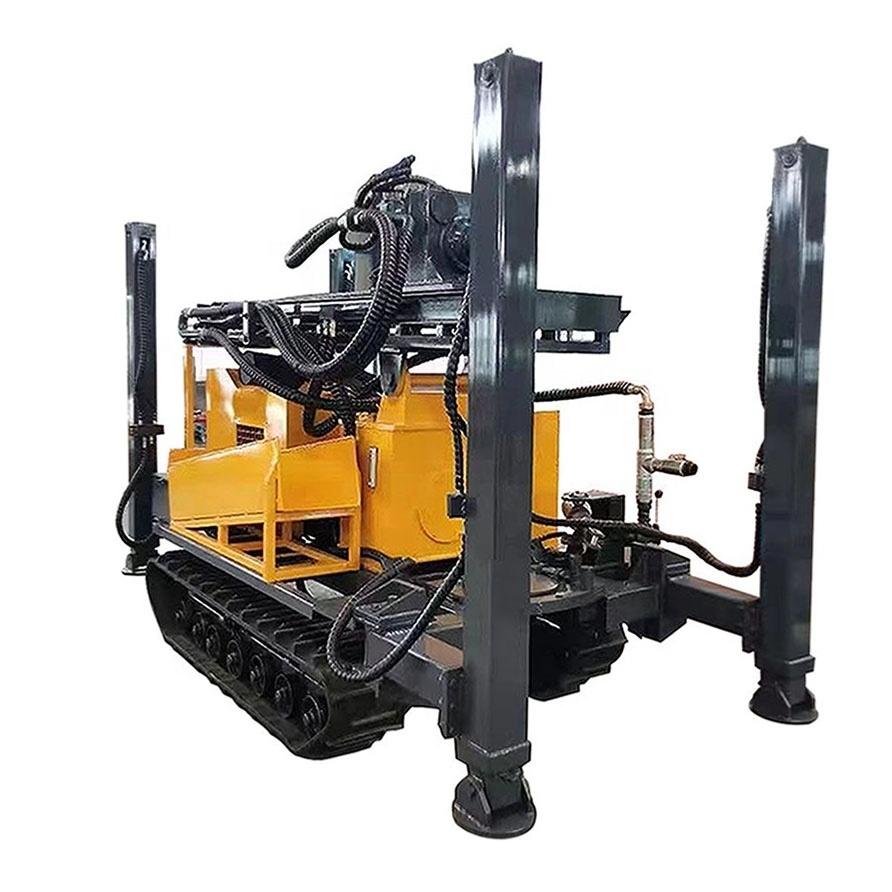

Crawler mounted pneumatic mining land rock blasting drilling rig
-
Application:
-
Drilling milling, water well drilling rig, water borehole drilling rig
-
Keyword:
-
DTH drilliing Rig
-
Drilling method:
-
Percussive
-
Working pressure:
-
1.05-2.46Mpa
-
Diameter:
-
115-350mm
-
Rated power:
-
58KW 2400r/min
-
Engine:
-
Disel Engine
Quick Details
-
Place of Origin:
-
Shandong
-
Brand Name:
-
Qiaochu, Qiao chu
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3500*1550*2300mm
-
Weight:
-
4800 KG
-
Drilling Depth:
-
200m, 200m
-
Mobility:
-
Move by crawler
-
Product name:
-
Crawler mounted pneumatic mining land rock blasting drilling rig
-
Application:
-
Drilling milling, water well drilling rig, water borehole drilling rig
-
Keyword:
-
DTH drilliing Rig
-
Drilling method:
-
Percussive
-
Working pressure:
-
1.05-2.46Mpa
-
Diameter:
-
115-350mm
-
Rated power:
-
58KW 2400r/min
-
Engine:
-
Disel Engine
TO CUSTOMERS
1. Recruiting agents, OA payment；
2. 24 months free maintenance service;
3. Free spare parts for 24 months；
4. Out-of-warranty service fee is 50% off；
5. Extended warranty for 1500 hours;
6. Accept OEM/ODM customization；
2. 24 months free maintenance service;
3. Free spare parts for 24 months；
4. Out-of-warranty service fee is 50% off；
5. Extended warranty for 1500 hours;
6. Accept OEM/ODM customization；
PRODUCTS DESCRIPTION
Introduction of t
op hammer hydraulic track drilling rig
:
QY200 water well drill is an efficient and multifunctional drilling equipment. It is mainly applicable to drilling wells, agricultural irrigation wells, ground source heat pump wells and other wells, especially for water intake projects in mountainous areas and rock formations.
The drill can drill in different formations, and the maximum drilling diameter can reach 350mm. The drilling rig adopts new hydraulic technology and is equipped with large torque hydraulic motor rotation and large diameter hydraulic cylinder propulsion. The famous engine provides power for the hydraulic system. The two-stage air filter and the intake design of connecting compressed air extend the service life of the diesel engine.
Features of
top hammer hydraulic track drilling rig
:
1.Work operate:
The console is simple and clear, easy to operate, reducing manpower and material resources.
2.Drilling diameter:
Large drilling diameters and depth, fast footage, flexible movement, wide application area, etc.
3.Multi-cylinder engine:
The multi-cylinder engine of the famous factory provides power for the hydraulic system, two-stage air filter and air compressor intake design.
4.Optional remote control device:
The use of electromechanical integration technology, through the solenoid valve assembly control, an external control line of 15 meters or more, the use of button-type keyboard remote drilling rig work.
PRODUCT SPECIFICATIONS
|
Technical
|
Data
|
|
|
|
Model of drilling machine
|
QY200
|
QY260
|
|
|
Drilling machine overall dimension
|
3400*1550*2300mm
|
4800*2100*2400mm
|
|
|
Weight of Drilling machine
|
4800kg
|
5800kg
|
|
|
Drilling diameter( mm )
|
115-350mm
|
115-350mm
|
|
|
Drilling depth (m)
|
200m
|
260m
|
|
|
Diameter of drilling pipe(mm)
|
Ø76/Ø89/ Ø102
|
Ø76/Ø89/ Ø102
|
|
|
Length of drilling pipe(mm)
|
3000
|
3000
|
|
|
One-time advance length of the drill (mm )
|
3000mm
|
3000mm
|
|
|
Drilling bit diameter(mm)
|
115-350mm
|
115-350mm
|
|
|
Traveling speed(km/h )
|
0~3km/h
|
0~3km/h
|
|
|
Climbing capacity(max )
|
20°
|
20°
|
|
|
Minimum ground clearance(mm )
|
250mm
|
250mm
|
|
|
Working Air Pressure(mpa )
|
1.05-2.46Mpa
|
1.05-2.46Mpa
|
|
|
Impactor
|
DHD360
|
DHD360
|
|
|
Air consumption(m3 /min )
|
15-35m3 /min
|
15-35m3 /min
|
|
|
Main machine power （HP）
|
YN33GB 58kW/2400rpm
|
YN38GBZ 76kW/2400rpm
|
|
|
Propulsive force(Ton)
|
8
|
8
|
|
|
Lifting force(Ton)
|
16
|
16
|
|
|
Rotary speed(Rpm)
|
High:140rom
|
High:160rom
|
|
|
Rotation speed (rpm)
|
Low:60rpm
|
Low:40rpm
|
|
|
Rotary torque(Nm )
|
400-2000Nm
|
400-4500Nm
|
|
|
Gear
|
Four advances and one retreat
|
Four advances and one retreat
|
|
|
|
Completed unit include of
drilling machine main machine,1 set of diesel engine, tools, 50 meter drill rod,1pcs alloy drilling bit,1pcs PDC drilling bit, 10 meter high pressure water pipe and English manual. |
Completed unit include of
drilling machine main machine,1 set of diesel engine, tools, 100 meter drill rod,1pcs alloy drilling bit,1pcs PDC drilling bit, 10 meter high pressure water pipe and English manual. |
|
