Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Satle
-
Voltage:
-
380V
-
Power:
-
3*4kw+2kw, 3*4kw+2kw
-
Dimension(L*W*H):
-
3670mm*1550mm*1870mm
-
Weight:
-
1400
-
Year:
-
2024
-
Model:
-
WSX-08
-
Usage:
-
wipe the wire surface and peel the scale and impurity
-
Raw material:
-
High,middle and low carbon steel wire and alloy wire
-
Diameter:
-
5.5mm-6.5mm
-
Speed:
-
100m/min
-
Brush speed:
-
1400r/min
-
Inhalation of air volume:
-
1060m3/h
-
Color:
-
Clients' Requirements
-
Certificate:
-
CE ISO
Quick Details
-
Inlet Diameter:
-
9mm
-
Outlet Diameter:
-
9mm
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Satle
-
Voltage:
-
380V
-
Power:
-
3*4kw+2kw, 3*4kw+2kw
-
Dimension(L*W*H):
-
3670mm*1550mm*1870mm
-
Weight:
-
1400
-
Year:
-
2024
-
Model:
-
WSX-08
-
Usage:
-
wipe the wire surface and peel the scale and impurity
-
Raw material:
-
High,middle and low carbon steel wire and alloy wire
-
Diameter:
-
5.5mm-6.5mm
-
Speed:
-
100m/min
-
Brush speed:
-
1400r/min
-
Inhalation of air volume:
-
1060m3/h
-
Color:
-
Clients' Requirements
-
Certificate:
-
CE ISO
Product Display

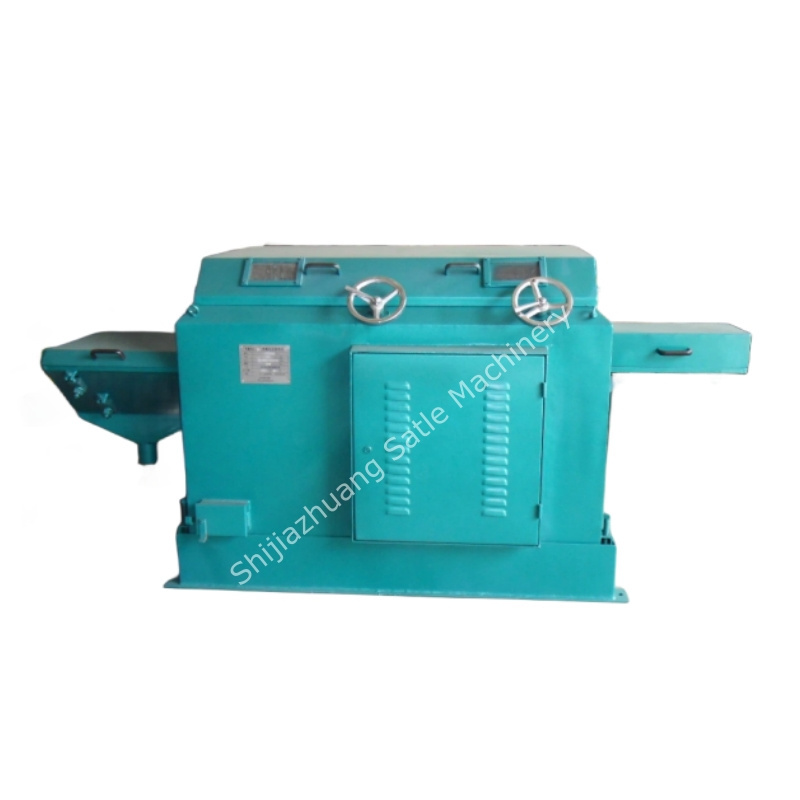

Environmentally Friendly Acid-Free Mechanical Derusting Machine Wire Cleaning Machine
![](https://cdn.bestsuppliers.com/seo_products_img/wiremachine/31a339f003e0337984758dd6854c03a2.jpg!/rotate/180)
Application:
Scaling and derusting of high, medium, low carbon steel wire and alloy steel wire.
The wire drawing and descaling machine solves
the problem of high operating cost, serious environmental pollution and poor working environment of the operating workers in the wire drawing industry in China for decades. It is a breakthrough in the scientific and technological achievements of the wire drawing machine industry.
Mechanical descaling instead of pickling improves the quality of derusting, promotes industrial upgrading, and achieves energy
saving and emission reduction.
![](https://cdn.bestsuppliers.com/seo_products_img/wiremachine/5974b4916abe3722ab61b2ef617a91e5.png!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/wiremachine/887e9066fa713fafa42fbee7b6ca5504.jpg!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/wiremachine/3af7b23fa6bd3e3198077499bcdc384b.jpg!/rotate/180)
Feature:
(1) High production efficiency
The application of the pickling-free wire drawing machine replaces the traditional multi-steps of shelling, pickling, washing, carbon coating, drying, etc. Continuous production greatly reduces the production process, shortens the production cycle, and significantly improves the production efficiency (most products can Substituting phosphating, saponification)
(2) Excellent product quality
Since there is no residual acid or salt on the surface of the steel wire, the problem of "hydrogen embrittlement" is fundamentally avoided. The surface of the steel wire is rust-free and has no oil stain, and the wire is bright and long-lasting, which is beneficial to the processing of the process.
(3) Easy to operate
The degree of derusting can be conveniently adjusted and controlled at any time during production. It can be adjusted by handwheel operation, and the instrument display can be displayed intuitively and quickly. It does not need to stop production experiments, which is conducive to timely control of quality. The descaling chamber is isolated from the transmission and adjustment mechanism.
(4) good environmental protection effect, low overall cost
Production does not consume acid, water, coal, acid mist, waste acid, waste water pollution to the environment, saves pollution control costs, workshop clean, no dust flying, does not endanger the health of workers, high production efficiency, use for several months After the savings, you can recover your investment.
Parameters
Processing wire diameter
|
5.5mm-6.5mm
|
|
Maximum line speed
|
100m/min
|
|
Derusting brush wheel speed
|
1400r/min
|
|
Rated power
|
3*4kw+2kw vacuum cleaner
|
|
Dimensions
|
2600mm*1250mm*1280mm
|
|
Machine steel brush specifications
|
420 * 250 * 80
|
|
Machine weight
|
1400-2800kgs
|
|
Dust collector weight
|
65kg
|
|
Each device can handle 6.5-8mm wire 8-10 tons in 8 hours, and so on.
|
|
|
The rust-resistant time of the light treated by this machine can reach more than 6 months in the general room.
|
|
|
The wire brush for each ton of material processed does not exceed 0.01, that is, 2500-3000 tons for a set of steel brushes.
|
|
|
Descaler shelling wheel service life 8000-10000 tons
|
|
