Quick Details
-
Weight:
-
According to the capacity
-
Size:
-
According to the capacity
-
Power:
-
According to the capacity
-
Weight (KG):
-
3000 kg
-
Product name:
-
Circular Dissolved Air Flotation for Wastewater Treatment
-
Application:
-
Wastewater Treatment
-
Type:
-
Water Filter Parts
-
Usage:
-
Solid-Liquid separation
-
Function:
-
Water Purification Plant
-
Certification:
-
ISO9001
-
Capacity:
-
5--800m3
-
Color:
-
Steel/blue/grey
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Gongyuan
-
Material:
-
wood case, Cabon steel/ Stainless Steel
-
Weight:
-
According to the capacity
-
Size:
-
According to the capacity
-
Power:
-
According to the capacity
-
Weight (KG):
-
3000 kg
-
Product name:
-
Circular Dissolved Air Flotation for Wastewater Treatment
-
Application:
-
Wastewater Treatment
-
Type:
-
Water Filter Parts
-
Usage:
-
Solid-Liquid separation
-
Function:
-
Water Purification Plant
-
Certification:
-
ISO9001
-
Capacity:
-
5--800m3
-
Color:
-
Steel/blue/grey
Company Info
Pragmatic, innovative Gongyuan Group will continuously apply decade's rich experience into various types of conventional or sophisticated water treatment projects flexibly.The group is composed by Wuxi Gongyuan Environmental Equipment & Technology Co., Ltd, Wuxi Gongyuan Machinery Co., Ltd and Wuxi Gongyuan Automation Technology Co., Ltd. It has set up an advanced water treatment craft lab and Environmental Innovation Centre with Jiangnan University, Changzhou University and Chinese Academy of Sciences to make renovation and provide total support solution for former and new clients. The successful achievements for Petro China, Sinopec, CNOOC, startlake Group, Wahaha Group, Yili Industrial Group, Qingmao Textile Corporation, Zhejiang Yinan Printing Corporation, Jinyu Textile Corporation, Tjoy Group, Kubota Corporation, PAQUES, Bluestar Group, Sujin Gas Group, Chia Tai Group ect. They witness our reputation and good identity by the designed and manufactured Dissolved Air Flotation with many patents.
We are looking forward to further innovative DAF products and service on global enviromental treatment solution.
Overview
Dissolved air flotation (DAF) is a water treatment process that clarifies wastewater (or other water) by the removal of suspended matter such as oil or solids. It is widely used in the wastewater treatment.
The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank basin.
The released air forms micro or nano bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by the skimming device.
2. Main Features
A. Shallow effective water depth: 600-750mm
B. Short time for hydraulic retention in the tank: 5-10 minuts.
C. Large purification capacity, namely with highly surface load.
D. Small footprint without operating room and all prefabricated assembling can be facilitated overhead or multi-layer combination.
E. Low cost for the installation and maintenance, easy to clean.
F. High degree of purification, algea and other suspended solids removal rate over 90%, sludge concentration can reach 35%.
G. Its unique dissolved air system with delicate structure can progress over 90% of dissolved air efficiency with stronger anti-clogging ability under its own numerous patents.
3. GQF type Superficial Shallow DAF Model Selection and technical paramter

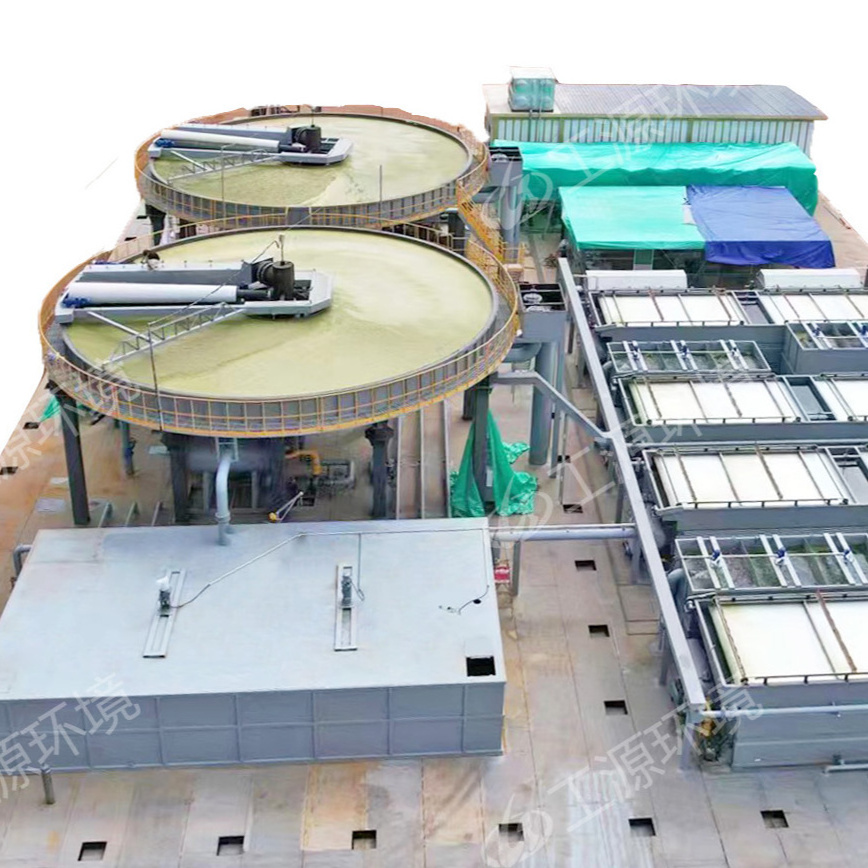

High efficiency Circular DAF unit Dissolved Air Flotation for electroplating wastewater treatment
