Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanforce
-
Product Name:
-
LED emergency power pack backup power supply
-
Input Voltage:
-
100V-240V 50/60HZ
-
Charge time:
-
24hrs
-
Warranty:
-
3 Years
-
Emergency Time:
-
2Hrs
-
Emergency Power:
-
6W
-
Output Voltage:
-
15~58V
-
inverter Size:
-
155*40*30mm
-
Battery:
-
Ni-cd Battery
-
Application:
-
Indoor Lighting
Quick Details
-
Battery Type:
-
Ni-CD
-
Material:
-
metal
-
Usage:
-
emergency lighting
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanforce
-
Product Name:
-
LED emergency power pack backup power supply
-
Input Voltage:
-
100V-240V 50/60HZ
-
Charge time:
-
24hrs
-
Warranty:
-
3 Years
-
Emergency Time:
-
2Hrs
-
Emergency Power:
-
6W
-
Output Voltage:
-
15~58V
-
inverter Size:
-
155*40*30mm
-
Battery:
-
Ni-cd Battery
-
Application:
-
Indoor Lighting
Product Description

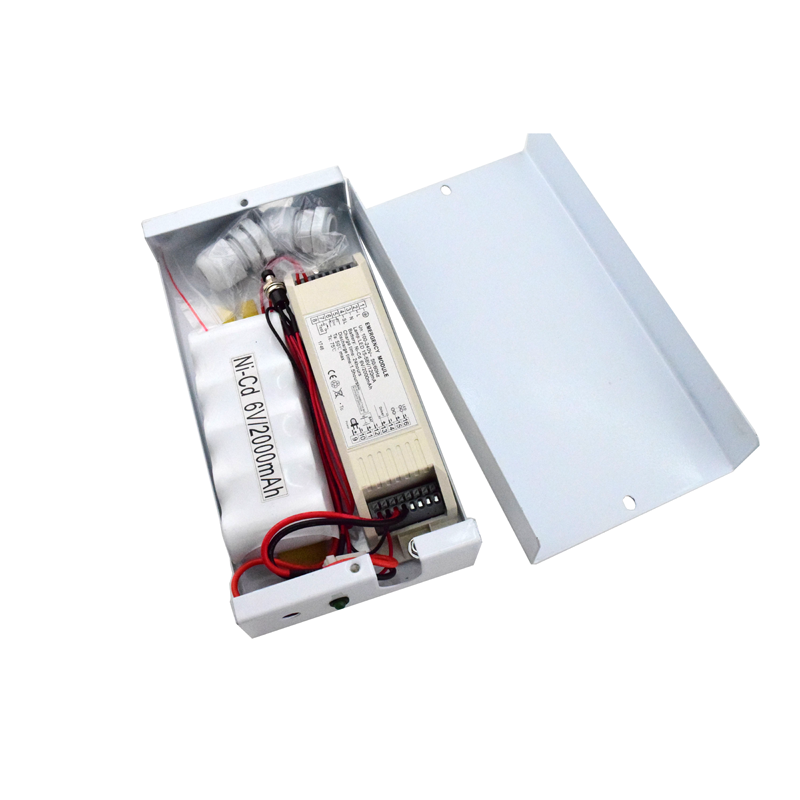

Sanforce Emergency power packs allow the LED fixtures to meet requirement for emergency illumination.
Designed especially for Constant Current type LEDs and circuits. Utilizing DC/DC switcher circuitry. Product is compatible with wide range of LED fixture ideal for LED panel light, LED down light,LED ceiling light and many others with external LED driver and low voltage(6-90V).
| Model No. | LMO052C006P |
| Product Name | LED emergency module |
| Battery Type | NiMH, NiCd, Lithium battery |
| Lighting Power | 20W LED panel |
| Emergency Power | 6W |
| Input voltage | AC100~240V, 50/60Hz |
| Battery protection | Yes |
| Operation temperature | -20--70℃ , 65+20% RB |
| Highest Surface Temperature | 50°C |
| Battery Capacity | 6V 2000mAh Rechargeable Nicd battery pack |
| Charging Time | >24h without break |
| Output Voltage in emergency | DC15~58V |
| Suitable light source | LED PANEL, DOWN LIGHT, CEILING LIGHT |
| Emergency power | 50% |
| Emergency duration | 90 minutes |
| Product Weight | 1kgs |
| Inverter dimension | 155*40*30mm |
| Outer casing size | 200*100*53mm |
| Note | Custom-Made battery to be configured with different back-up period and different light output levels. |
Features
- IC controlled Dual rate Charger for energy savings.
- Short circuit protection at battery terminals.
- Battery reverse protection functionality
- Charge indicator and test button. The light fittings guarantee safety of people in buildings open to the general public.
- Automatically actuated in the event of power cuts, these devices (kit + light fitting) offer a good luminous flux to facilitate the evacuation.
- Comply with European standards EN 61 347-2-7 and offer a high level of quality and safety meeting the various prevailing regulations.
- Dial the code to suitable voltage of luminiares. 1 or 3 h rated duration.
- Constant current output,emergency power is vaired by lighting output voltage, automatically match with the lighting setting to provide best illuminations.
