Quick Details
-
Dimension(L*W*H):
-
580*475*535mm
-
Weight:
-
80
-
Warranty:
-
1 year from B/L date
-
Certification:
-
CE/ISO
-
Displacement:
-
954cc
-
Bore*stroke:
-
90*75mm
-
Speed:
-
3000 / 3600rpm
-
Max. AC output:
-
20hp
-
Rated AC output:
-
17hp
-
Oil capacity:
-
3L
-
Color:
-
Red or black
-
Fuel consumption:
-
280g/kW.h
-
Starting system:
-
Electric start
-
Product name:
-

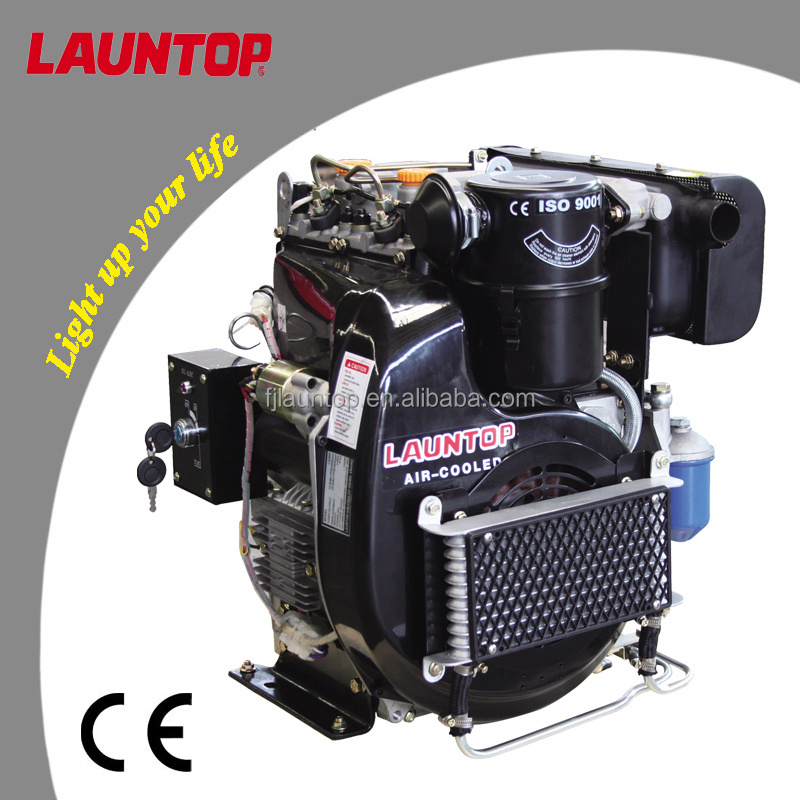

290F twin cylinder air cooled diesel engine
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LAUNTOP
-
Model Number:
-
LA290F
-
Dimension(L*W*H):
-
580*475*535mm
-
Weight:
-
80
-
Warranty:
-
1 year from B/L date
-
Certification:
-
CE/ISO
-
Displacement:
-
954cc
-
Bore*stroke:
-
90*75mm
-
Speed:
-
3000 / 3600rpm
-
Max. AC output:
-
20hp
-
Rated AC output:
-
17hp
-
Oil capacity:
-
3L
-
Color:
-
Red or black
-
Fuel consumption:
-
280g/kW.h
-
Starting system:
-
Electric start
-
Product name:
-
290F twin cylinder air cooled diesel engine
290F twin cylinder air cooled diesel engine
Other Products you may interested in
PRODUCT SHOWCASE
SPECIFICATION
|
Engine Model |
LA290F | ||
| Type | parallel double cylinder, 4-stroke,air-cooled, direct injection | ||
| Bore X Stroke | (mm) | 90 x 75 | |
| Speed | (rpm) | 3000 | 3600 |
| Total Displacement | (cm3) | 954 | |
| Rated power | (kW) | 12.5 | |
| Compression ratio | 19:1 | ||
| Maximum torque | N•m / rpm | 45.8/2250 | 38.5/2700 |
| Maximum no-load speed | (rpm/min) | 3240 | 3888 |
| Idling speed | (rpm/min) | 1300 | |
| Lube Oil Capacity | (lt) | 3 | |
| Fuel consumption | (g/kW.h) | ≤280 | |
| Suggested fuel | 0#(normal temperature) | ||
| Suggested oil | CF 15W-40(normal temperature) | ||
| Oil consumption | (g/kW.h) | ≤4.08 | |
| Starting System | Electric Start | ||
| Rotary direction of crankshaft | Clock wise(View from fly sheel end) | ||
PERFORMANCE CURVE
DIAGRAM
CERTIFICATES
1. Packing manner: In carton
2. Carton size: 580*565*605mm
3. Loading quantity: 120 units/20'
252 units/40'
336 units/40'HQ
1. Delivery time for engines & generators usually take 30 days after receive buyer's deposit.
2. Delivery time for water pumps & high pressure washers usually take 40 days after receive buyer's deposit.
3. For special period, for example, Chinese spring festival, the delivery time will be a little bit longer. So, in case of any impact on your sales, please arrange your purchase plan timely. If you place order during festival, please check with our sales the exact delivery time.
4. Also, in case of any delay in shipment, please arrange payment in time according to the payment terms agreed by both parties. Thank you for your cooperation !
1. We provide one year warranty for all of our products since the date of B/L. If the machine break during he warranty period due to quality or assembling problem, we provide free spare parts to our customer for reparing. After expiration, we provide cost spare parts service. For any claim, please cooperate to provide necessary information to us for evaluation such as the serial number, pictures of the broken parts and working condition before the model broken. We will make record and improvement in case of same problem in the future.
2. We provide free technical consultant if you have any question about the usage of our products.
3. We can make OEM package & design as per request of our customer, such as customer brand, label, special model design, color, etc.
