Quick Details
-
Brand Name:
-
UNIRISEN
-
Model Number:
-
QC-BTH
-
Diameter:
-
Customized
-
Type:
-
Plastic Anchors
-
Length:
-
"M10x32,M10x38,M10x50 Customized"
-
color:
-
White
-
Standards:
-
DIN, ANSI,ASTM, GB, etc
-
Thread:
-
Metric,UNC, BSW
-
Service:
-
OEM/ODM
-
MOQ:
-
10pcs
-
Sample:
-
Free
Quick Details
-
System of Measurement:
-
INCH, Metric
-
Material:
-
Sleeve: PA/PE; Screw: Steel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
UNIRISEN
-
Model Number:
-
QC-BTH
-
Diameter:
-
Customized
-
Type:
-
Plastic Anchors
-
Length:
-
"M10x32,M10x38,M10x50 Customized"
-
color:
-
White
-
Standards:
-
DIN, ANSI,ASTM, GB, etc
-
Thread:
-
Metric,UNC, BSW
-
Service:
-
OEM/ODM
-
MOQ:
-
10pcs
-
Sample:
-
Free
Products Description
Material
|
Sleeve: PA/PE; Screw: Steel
|
Type
|
Plastic Anchors
|
Length
|
32mm,38mm,50mm, Customized
|
color
|
White
|
Standards
|
DIN, ANSI,ASTM, GB, etc
|
Thread
|
Metric,UNC, BSW
|
◆ Basic Introduction

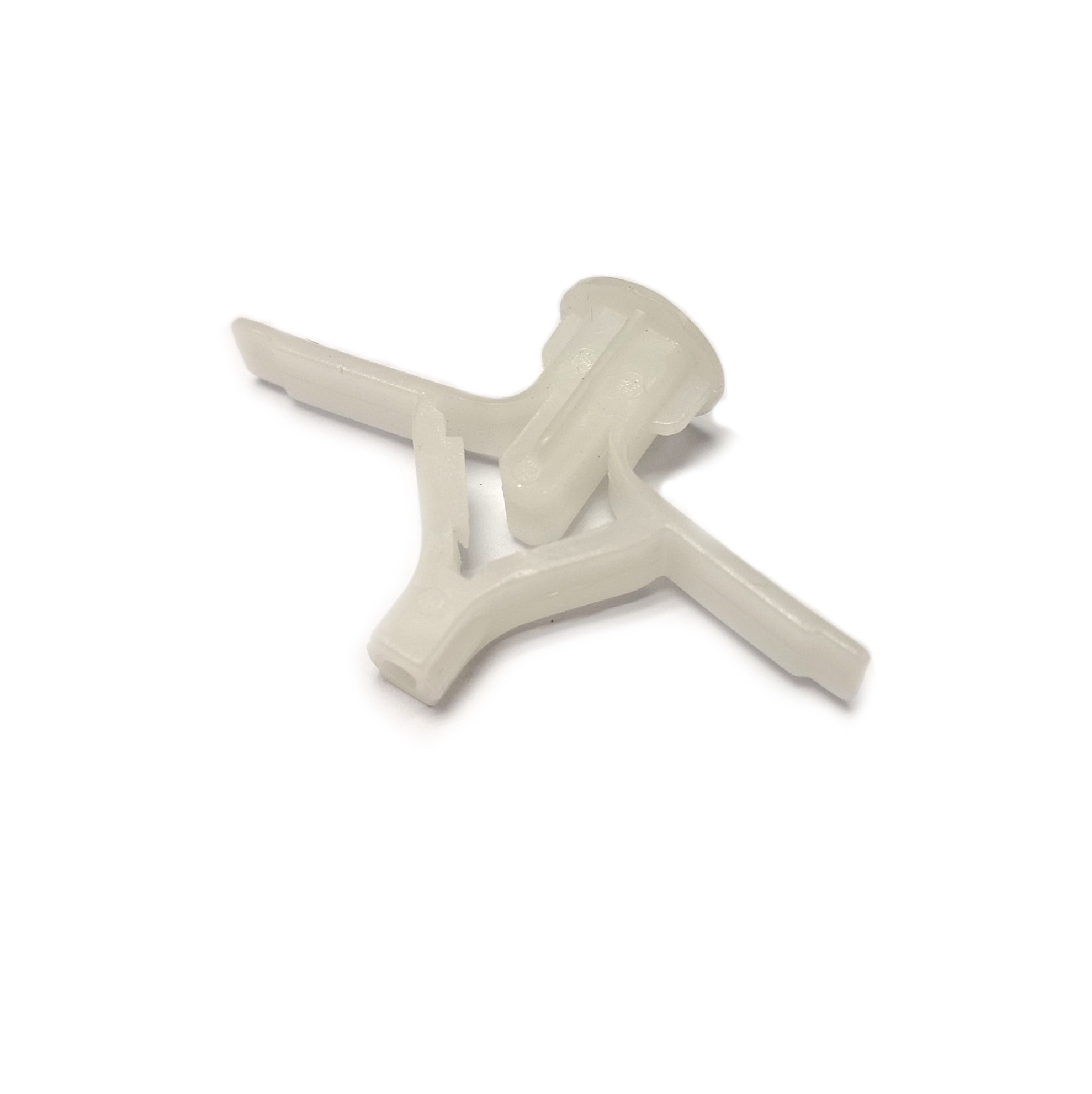

Butterfly Toggle Anchors are hollow wall anchors ideal for static applications requiring light to medium load performance. Installation is very fast. The fastener pre-installs without a screw, allowing for easy placement and removal of the fixture.
Butterfly Toggle Anchors are not recommended for use overhead or applications where holding values are critical.
◆Base Material
Plaster
Plywood
Gypsum Wallboard
Hollow Concrete Masonry
◆ Installation Instructions
1. Drill hole through base material. Fold anchor in the middle.
2. Insert the anchor through the wall until Pop-Toggle is flush with the wall.
3. Insert the Popper to open the anchor behind the hollow wall (not necessary for thicker base materials). Do not force or strike the Popper with a hammer.
4. Remove the Popper, insert the screw through the fixture and tighten until the fixture is clamped
securely to the surface of the base material. Be sure not to overtighten.
