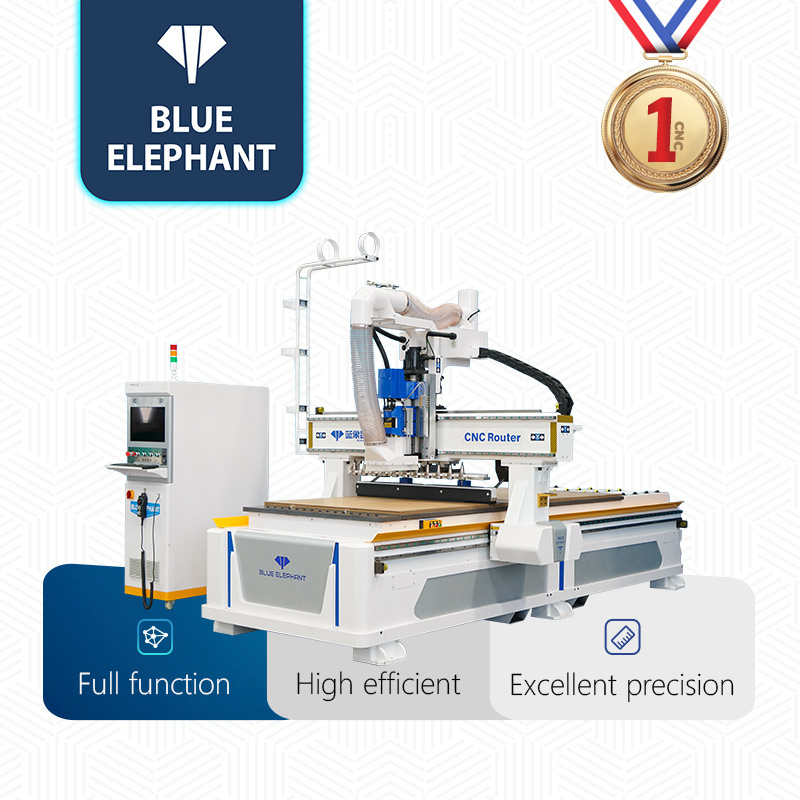

Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
2100 mm
-
Travel (Y Axis)(mm):
-
3700 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9.0kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Voltage:
-
AC380V (Option: 220V)
-
Dimension(L*W*H):
-
according to your order
-
Weight (KG):
-
2100
-
Working area:
-
2100x3700x200mm
-
Control system:
-
Syntec control system with control box
-
Tool magazine:
-
Linear tool changer 11pcs under gantry
-
Spindle:
-
ATC 9KW Italy air cooling spindle, HKF 63holder
-
Inverter:
-
Taiwan Delta B 11KW inverter
-
Motor and Drive:
-
850W Japan Yaskawa servo motor and driver
-
Table surface:
-
T-slot and vacuum working table
-
Software:
-
Software for nesting and labeling and cabinet making
-
Showroom Location:
-
Mexico
Quick Details
-
Working Table Size(mm):
-
2100*3700
-
Machine Type:
-
Nesting CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
2100 mm
-
Travel (Y Axis)(mm):
-
3700 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
9.0kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Voltage:
-
AC380V (Option: 220V)
-
Dimension(L*W*H):
-
according to your order
-
Weight (KG):
-
2100
-
Working area:
-
2100x3700x200mm
-
Control system:
-
Syntec control system with control box
-
Tool magazine:
-
Linear tool changer 11pcs under gantry
-
Spindle:
-
ATC 9KW Italy air cooling spindle, HKF 63holder
-
Inverter:
-
Taiwan Delta B 11KW inverter
-
Motor and Drive:
-
850W Japan Yaskawa servo motor and driver
-
Table surface:
-
T-slot and vacuum working table
-
Software:
-
Software for nesting and labeling and cabinet making
-
Showroom Location:
-
Mexico
Product Description
Features
1. Heavy duty frame. The frame is longer and much stronger than normal CNC routers.
2.Taiwan 1000w SYNTEC servo motor with Japan SHIMPO reducer. It adopts full closed loop and has brake function on Z axis. It provides constant position feedback, bigger power and smooth contentious motion.
3. Linear type tool change magazine under gantry. It can change 12 different tools fast.
4. Y axisadopts #30 Taiwan square linear guide. While X and Z axis adopt #25 square linear guide. 2M helical rack is used to ensure the high-speed and stable operation of the machine, and also ensure a higher processing accuracy.
5. ATC air cooling spindle. Max.speed can be 24000RPM. With ISO30 tool holder, it can use 20mm bits at max.
Technical Parameters
|
X,Y,Z Working Area
|
1300*2500*200mm
|
|
Working Voltage
|
AC380V/50HZ/3PH (highly flexible shielded cable)
|
|
Machine body construction
|
New large square tube seamless welded bed, milled on five sides, with wider square tubes and additional reinforced square tubes to
improve bed strength and table strength |
|
Gantry construction
|
Heavy-duty reinforced beam structure to improve the stability of the beam (high precision, large load capacity), the column adopts
widened square tubes with reinforcing bars welded to improve the stability of the column strength, heavy-duty head structure |
|
Table structure
|
7 partition vacuum adsorption table, table top using pre-built parts, more convenient to replace the table top, easy to replace
the liner, no more scraping glue coating, improve the precision of the table top, more prevent string gas, air leakage, improve the adsorption effect. |
|
Control system
|
Taiwan SYNTEC control system (Taiwan's first-line brand, the system, absolute servo supporting the same brand, high matching, high
transmission efficiency, high precision, the system has the power-on does not return to the origin, memory function) |
|
Supported file formats
|
*.g; *.nc; *.ug; *.demo; *.iso; *.eng; *.cut
|
|
Push device
|
Push and secondary dust collector (for easier unloading and increased productivity)
|
|
Spindle type
|
9kw ATC air cooling spindle，24000rpm
|
|
Driving system
|
1kw SYNTEC absolute servo motor and driver,Japan Shimpo reducer
|
|
Transmission
|
X,Y axis adopts Taiwan 2-mode helical rack gear, Z axis adopts Taiwan TBI ball screw, high precision and more durable Z-axis
adopts one-piece enlarged bearing housing, coupling adopts diaphragm type coupling, higher stability |
|
Linear guide
|
Taiwan square linear guide, Y axis: #30, X axis and Z axis: #25
|
|
Vacuum pump
|
7.5kw vacuum pump, has butterfly valve protection it, solenoid valve for fast vacuum break
|
|
Dust collector
|
5.5kw double bag dust collector with motor protection to prevent overcurrent damage to the vacuum pump and dust collector
|
|
Pneumatic protection
|
Air pressure detection system for the whole machine, if there is insufficient air pressure when the machine is working, the system
will immediately generate an alarm and stop working to protect the spindle and other important parts from being damaged. |
|
Working voltage protection
|
Equipped with a voltage phase sequence protector to prevent damage caused by too low or too high voltage and to prevent machine
failure due to wrong wiring |
