Quick Details
-
Brand Name:
-
Drawell
-
Model Number:
-
DW-MDS-2014 serial
-
Product name:
-

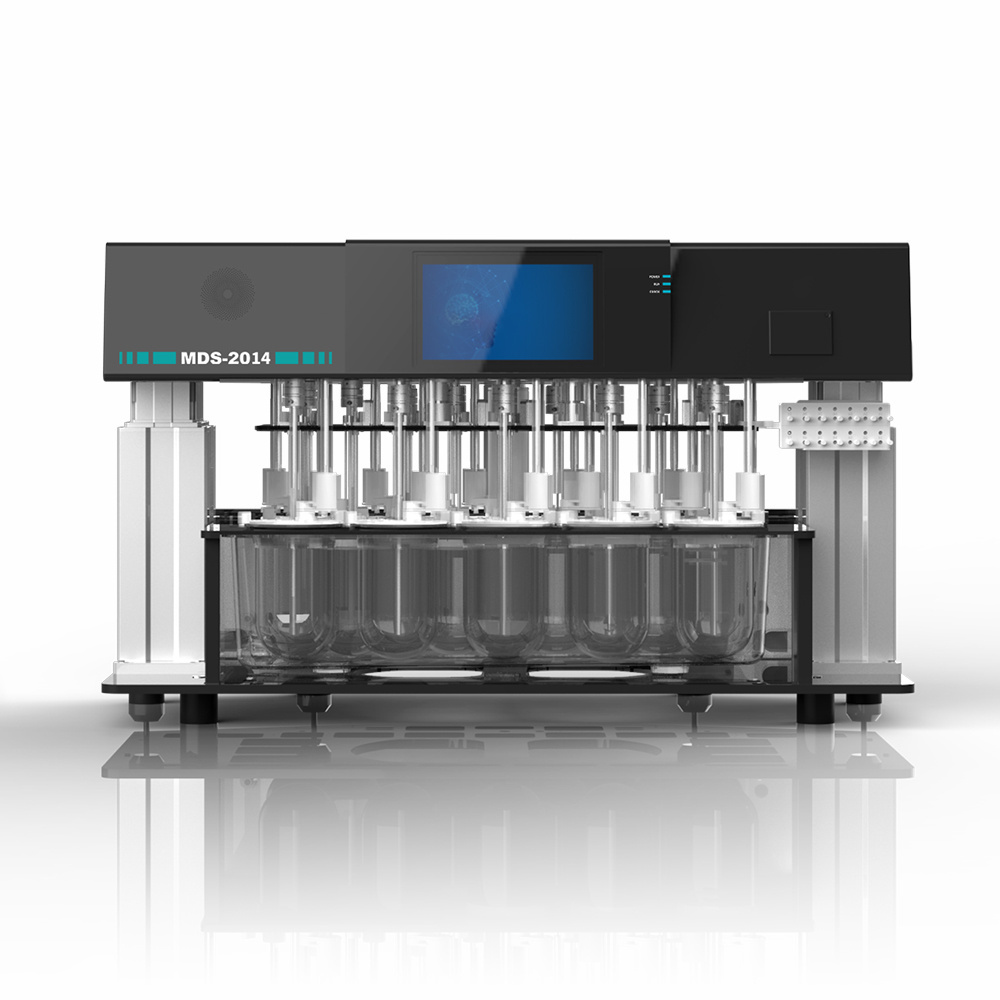

Dissolution Tester
-
Range of stirring speed::
-
10.0-300.0RPM
-
Speed resolution::
-
0.1RPM
-
Basket (paddle) shaft swing amplitude::
-
≤0.5RPM
-
Basket swing range::
-
≤1.0mm
-
Dissolution apparatus levelness::
-
≤±0.5°
-
Basket (paddle) axis verticality::
-
≤±0.5°
-
Power supply:
-
Working humidity:
Quick Details
-
Warranty:
-
1year
-
Power:
-
Electronic
-
Place of Origin:
-
shanghai
-
Brand Name:
-
Drawell
-
Model Number:
-
DW-MDS-2014 serial
-
Product name:
-
Dissolution Tester
-
Range of stirring speed::
-
10.0-300.0RPM
-
Speed resolution::
-
0.1RPM
-
Basket (paddle) shaft swing amplitude::
-
≤0.5RPM
-
Basket swing range::
-
≤1.0mm
-
Dissolution apparatus levelness::
-
≤±0.5°
-
Basket (paddle) axis verticality::
-
≤±0.5°
-
Power supply:
-
Working humidity:
Specifications
![](https://cdn.bestsuppliers.com/seo_products_img/drawell-lab/fe266f9f81743c26b15f45aecf3946ae.jpg!/rotate/180)
Performance characteristics
⚫ One-time injection molding water tank, anti-cracking, slope drainage combined
with rounded corner design, easy to clean;
⚫ The independent diagonal fixing device of the dissolution vessel, the silicone cup
ring cooperates with the V-shaped cup cover, to realize the double sealing of the
line and the surface, and greatly reduce the evaporation of the solvent;
⚫ The 316L stainless steel paddle shaft adopts MPT stainless steel mirror polishing
technology to reduce bacterial adhesion;
⚫ Segmented paddle shaft design, no need to reset the height when changing the
dissolution method, which is convenient and quick;
⚫ Multi-point stainless steel guide rod to ensure long-term stability of the vertical
and mechanical performance indicators of the machine head;
⚫ The external dosing device is easy to clean to prevent cross-contamination;
⚫ The 10-inch large LCD touch screen makes every operation clear and simple;
⚫ The experiment log records the operation and parameter details of each
experiment, supports direct printing, and meets audit trail requirements;
⚫ Support sequence/synchronization, automatic and independent dosing;
⚫ Reserve the LAN interface to meet the data transmission requirements of the
later digital laboratory construction;
Number of test devices
|
14
|
Water bath heating range (℃)
|
RT~45.0℃
|
Temperature resolution (℃)
|
0.1℃
|
Temperature control accuracy (℃)
|
±0.2℃
|
Working temperature:
|
(5~40) ℃
|
