Durable carton box or according to demand.
Package dimension(L x W x H): 466 x 480 x 356
Gross weight with package: 46kg.
Lead time: regular 30 days after got deposit.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Loncin
-
Dimension(L*W*H):
-
466 x 480 x 356mm
-
Weight:
-
46
-
Rated power/speed:
-
16kW/3600RPM
-
Marketing Type:
-
Hot Product
-
Model & HP:
-
TV700(24HP)
-
Bore x Stroke:
-
77 x 76mm
-
Rated Power Output:
-
16kW(22HP)@3600RPM
-
Max. Power Output:
-
17.6kW(24HP)@3600RPM
-
Net Torque:
-
47.5N.m@2400RPM
-
Starting System:
-
Electric Start
-
Fuel Tank:
-
No
-
Certification:
-
CE/EPA
Quick Details
-
Displacement:
-
708cc, 708cc
-
Emission Standard:
-
EURO 5
-
Power:
-
16kW
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Loncin
-
Dimension(L*W*H):
-
466 x 480 x 356mm
-
Weight:
-
46
-
Rated power/speed:
-
16kW/3600RPM
-
Marketing Type:
-
Hot Product
-
Model & HP:
-
TV700(24HP)
-
Bore x Stroke:
-
77 x 76mm
-
Rated Power Output:
-
16kW(22HP)@3600RPM
-
Max. Power Output:
-
17.6kW(24HP)@3600RPM
-
Net Torque:
-
47.5N.m@2400RPM
-
Starting System:
-
Electric Start
-
Fuel Tank:
-
No
-
Certification:
-
CE/EPA
Product Description

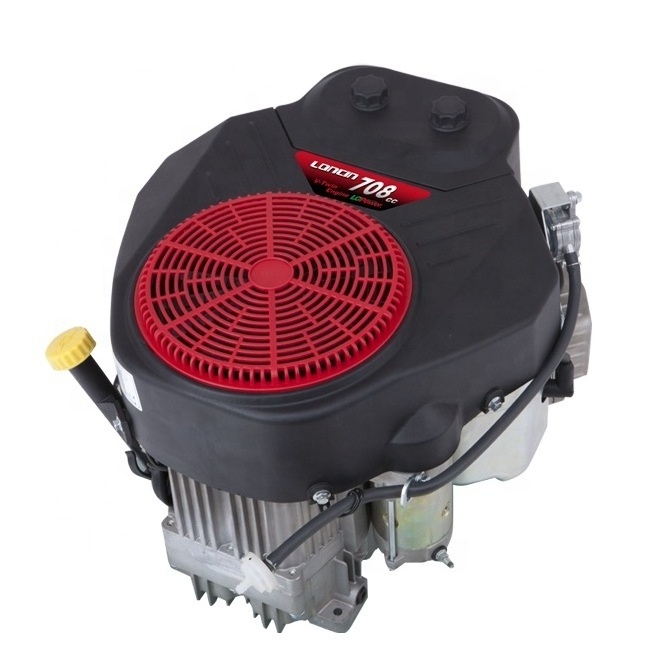

24HP V-Twin Two Cylinder Vertical Shaft Gasoline Engine for Lawn Tractor
The Loncin® 708cc OHV Vertical Shaft Engine with 16kW(22HP)@3600RPM and 47.5N.m@ 2400RPM. It has enough power to run a wide range of equipment, include commercial turf equipment, lawn tractors and riding mowers.
OHV design offers cooler, fuel-efficient operation and cast iron cylinder sleeve provides long usage life. It is reliable, easy starting and quiet running. Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
Specification
|
Model
|
TV700
|
Engine Type
|
OHV, Vertical Shaft
|
||
|
Bore x Stroke
|
77 x 76mm
|
Displacement
|
708cc
|
||
|
Compression Ratio
|
8.7 : 1
|
Start Type
|
Electric Start
|
||
|
Net Torque
|
47.5N.m@2400RPM
|
Idle Speed
|
1650±100r/min
|
||
|
Speed
|
3600RPM
|
Rated Output
|
16kW@360
0RPM
|
||
|
Maximum Output
|
17.6kW@3600RPM
|
Muffler
|
Yes
|
||
|
Crankshaft
|
Key type, ⌀25.4mm
|
Cooling System
|
Air cooled
|
||
|
Fuel Type
|
Gasoline
|
Fuel Tank
|
No
|
||
|
Low Oil Alert
|
Yes
|
Low Oil Shutdown
|
Yes
|
||
|
Oil Capacity
|
2.0L
|
Lubrication System
|
Pressure + Splash
|
||
|
Net Weight
|
42kg
|
Gross Weight
|
46kg
|
||
|
Dimension(L x W x H)
|
466 x 480 x 356mm
|
CE/EPA Certificate
|
Yes
|
||
|
Available Option
|
PTO shaft
|
Warranty
|
1 Year
|
||
|
Shaft Rotation
|
(From PTO Shaft Side) Counterclockwise
|
|
|
||
|
Application
|
Commercial turf equipment, lawn tractors and riding mowers
|
|
|
||
Features + Benefits
OHV design for increased efficiency and optimal power transfer.
High compression ratio for better fuel efficiency.
High compression ratio for better fuel efficiency.
Low vibration from precision-engineered components.
Cast iron cylinder sleeve.
Cast iron cylinder sleeve.
Metal cam and forged crankshaft makes engine more reliable and durable.
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
Low oil shutdown turns the engine off if it runs low on oil, preventing serious damage or failure.
Primary and Secondary oil filter system provide better lubrication.
