DHC has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions.
- Product Details
- {{item.text}}
Quick Details
-
Panel Dimensions:
-
2365*535*25mm
-
Panel Efficiency:
-
21.3%
-
Keyword:
-
foldable solar panel
-
Power Tolerance:
-
0~+3%
-
Max. Power Voltage Vmap:
-
20.16V
-
Max. Power Current lmp:
-
9.92A
-
Open Circuit Voltage Voc:
-
24.3V
-
Short Circuit Current lsc:
-
10.5A
-
Cell Type:
-
Mono,166*83cm
-
Weight:
-
8.6±0.1kg
-
Folded size:
-
625*535*50mm
-
Output Cable:
-
1500mm
Quick Details
-
Brand Name:
-
DHC
-
Model Number:
-
ESFA200
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2365*535*25mm
-
Panel Efficiency:
-
21.3%
-
Keyword:
-
foldable solar panel
-
Power Tolerance:
-
0~+3%
-
Max. Power Voltage Vmap:
-
20.16V
-
Max. Power Current lmp:
-
9.92A
-
Open Circuit Voltage Voc:
-
24.3V
-
Short Circuit Current lsc:
-
10.5A
-
Cell Type:
-
Mono,166*83cm
-
Weight:
-
8.6±0.1kg
-
Folded size:
-
625*535*50mm
-
Output Cable:
-
1500mm
Product Description

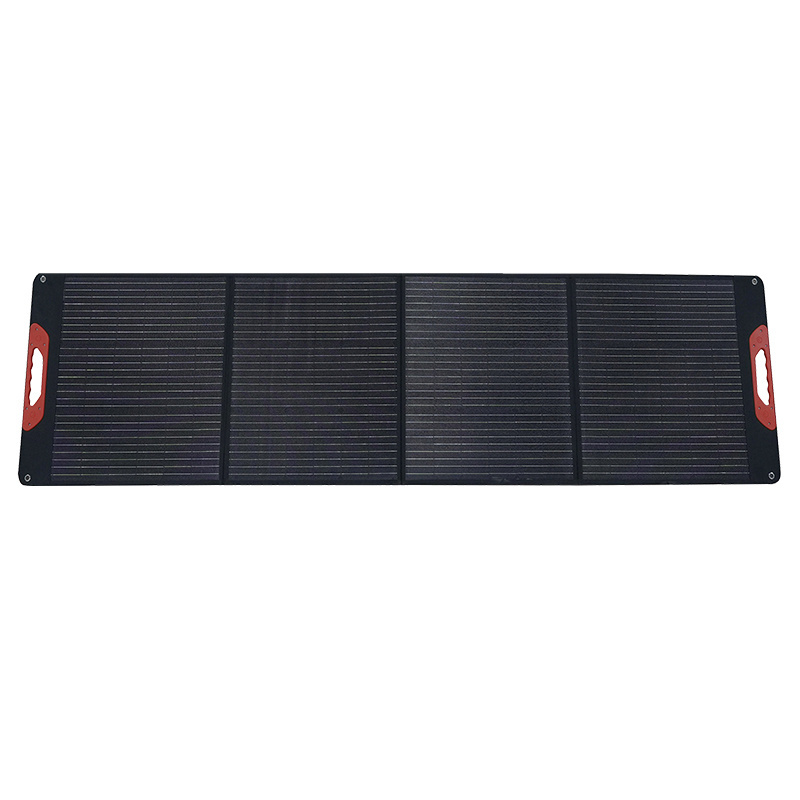

CE Foldable Solar Panel 60W 80W 100W 200W 300W 400W For Germany
This is a
foldable solar panel
specially designed for outdoor camp and travel. The weight of a single panel is about
8.6
kg. It can be lifted with one hand and is very convenient to carry.
The efficiency of this
folding solar panels
is as high as 21.3%, realizing electricity when there is light, providing guarantee for electricity use in outdoor activities.
Specification
|
ELECTRICAL PARAMETERS STC
|
|
|
||
|
Model
|
ESFA100
|
ESFA200
|
||
|
Max. Power Output Pmax
|
100W
|
200W
|
||
|
Power Tolerance
|
0~+3％
|
0~+3％
|
||
|
Max. Power Voltage Vmap
|
20.16V
|
20.16V
|
||
|
Max. Power Current lmp
|
4.96A
|
9.92A
|
||
|
Open Circuit Voltage Voc
|
24.3V
|
24.3V
|
||
|
Short Circuit Current lsc
|
5.25A
|
10.5A
|
||
|
Module Eficiency
|
21.3%
|
21.3%
|
||
|
*STC(Standard Test Condition): Irradiance 1000W/㎡,Cell Temperature 25℃,Air Mass 1.5.
|
|
|
||
|
MECHANICAL PARAMETERS
|
|
|
||
|
Cell Type
|
Mono，166*83cm
|
Mono，166*83cm
|
||
|
Cell Arrangement
|
36psc（3*6*2）
|
72psc（3*6*4）
|
||
|
Open size
|
1220*555*25mm
|
2365*535*25mm
|
||
|
Folded size
|
610*555*45mm
|
625*535*50mm
|
||
|
Weight
|
4.8±0.1kg
|
8.6±0.1kg
|
||
|
Output Cable
|
1500mm
|
1500mm
|
||
|
Output Connection
|
Anderson/DC7909
|
Anderson/DC7909
|
||
CE Foldable Solar Panel 60W 80W 100W 200W 300W 400W For Germany
1. This
foldable solar panel
uses monocrystalline silicon solar cells with higher conversion efficiency.
2. It has a foldable and portable design, which is easy to carry and can be carried with one hand.
3.
The
folding solar panels
can be used with an outdoor power supply to convert solar energy into electrical energy and store it for use at night.
Details Images
Application
Application Scenario
This folding solar panel is very convenient to carry. It can be paired with portable power station and is widely used for outdoor activities, such as camping, self driving, tourism, etc. It can also be used as an emergency power source in case of power outage in households.
Packing & Delivery
Knowing that the development of the company depends on the innovation and quality of the products, we have established a quality management system to meet the requirements of the international quality management system. With continuously releasing the original innovations according to the market and customer needs, our company always maintains the novelty and innovative products to take the customer's thoughts and urgency into consideration. Providing excellent service for customers and meeting customer needs are our eternal pursuit! To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
