Quick Details
-
Row Distance(mm):
-
1 - 2 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2100*730*1370mm
-
Weight:
-
308 KG
-
Model:
-
1160 type
-
Name:
-
Peanut Picker
-
Efficiency:
-
2mu/h
Quick Details
-
Number of Rows:
-
other
-
Working Width(mm):
-
1000 mm
-
Tractor Power(HP):
-
12 - 18 HP
-
Row Distance(mm):
-
1 - 2 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2100*730*1370mm
-
Weight:
-
308 KG
-
Model:
-
1160 type
-
Name:
-
Peanut Picker
-
Efficiency:
-
2mu/h

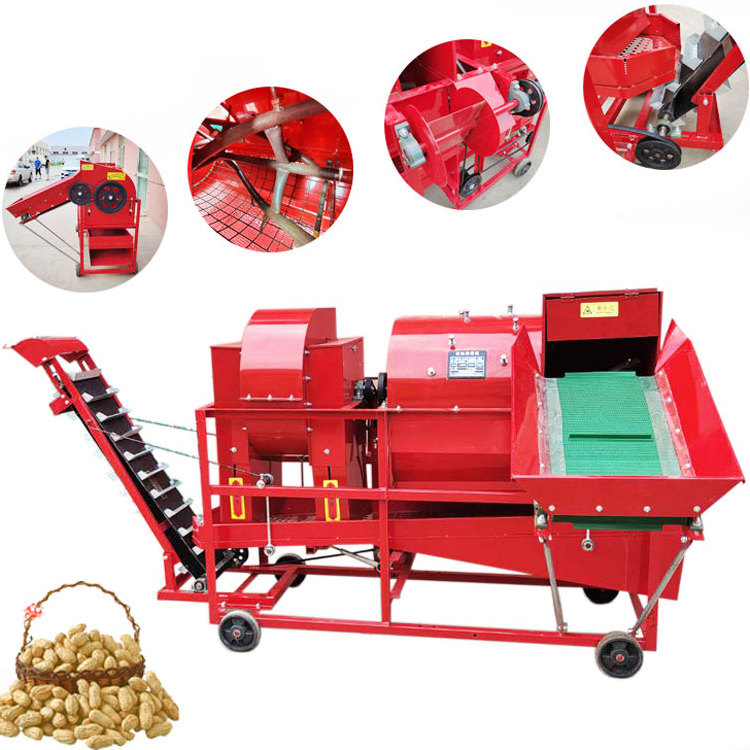

Peanut picker is mainly composed of frame, motor (diesel engine), transmission part, fruit picking and separation part, fan selection part, fan selection part and vibration mechanism. During the operation, the machine is driven by motor or diesel engine and enters the peanut picking system through the feeding port or automatic feeding platform. The roller picking rod rotates and knocks to separate the peanut from the stem, and the peanut fruit and sundries fall on the vibrating screen through the gravure hole. The sundries scattered on the vibrating screen are discharged through the vibrating screen to the suction port of the fan, and the impurities are discharged. Clean peanuts are selected to complete the whole process; It has higher picking rate, lower crushing rate and work efficiency. It has the advantages of high efficiency, reasonable structure and convenient movement between sites.
|
Machine model
|
Type 1160
|
|
scope of application
|
Dry and wet peanuts
|
|
working efficiency
|
1500kg/h
|
|
machine weight
|
340kg
|
|
Machine size
|
2100*730*1370mm
(excluding bagger)
|
|
auxiliary power
|
380v5.5kw motor
12 hp diesel engine
|
|
Transmission mechanism form
|
belt
|
Advantages:
♦ Peanut picker is used to pick peanuts directly with vines after receiving peanuts, which can be used flexibly in the field.
♦ The fruit is picked clean, with low shell damage rate and small loss.
♦ Both dry and wet stems can be used, with high work efficiency and stable product performance.
Production and after sales services
1. We can customize the products color according to customers real needs;
2. We can customize the nameplate for customers according to their request;
3. After sales, we will provide special technicians for solving customers questions.
