Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HAUAN
-
Voltage:
-
380V or as required
-
Dimension(L*W*H):
-
5000*1500*1500mm
-
Weight:
-
4000 kg
-
Feeding width:
-
300-600 mm
-
Product name:
-
downspout elbow forming machine
-
Usage:
-
Steel Construction
-
Raw material:
-
PPGI PPGL GI GL
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Control system:
-
PLC(imported Brand)
-
Decoiler:
-
5T Manual Decoiler
-
Thickness:
-
0.3-0.8mm Thickness
-
Operate style:
-
Hydraulic Station Automatic Manual
-
Suitable to process:
-
Aluminum Zinc Coil
-
Advantage:
-
Easy Installation
Quick Details
-
Type:
-
down pipe making machine
-
Tile Type:
-
Steel/PPGI/PPGL/GI/GL
-
Production Capacity:
-
12 m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HAUAN
-
Voltage:
-
380V or as required
-
Dimension(L*W*H):
-
5000*1500*1500mm
-
Weight:
-
4000 kg
-
Feeding width:
-
300-600 mm
-
Product name:
-
downspout elbow forming machine
-
Usage:
-
Steel Construction
-
Raw material:
-
PPGI PPGL GI GL
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Control system:
-
PLC(imported Brand)
-
Decoiler:
-
5T Manual Decoiler
-
Thickness:
-
0.3-0.8mm Thickness
-
Operate style:
-
Hydraulic Station Automatic Manual
-
Suitable to process:
-
Aluminum Zinc Coil
-
Advantage:
-
Easy Installation
Products Description
This
c
old roll forming machine manufacturers aluminum downspout pipe roll forming machine
is for steel or aluminum sheet cold form industries. It can form down pipe profiles according to customer’s requirement continuously, automatically cut to length. The equipment adopts
PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production
. Therefore, it is really a new type of
energy-saving and high-effective equipment
for downspout roll forming. And it has many advantages, just like
high forming speed, low noise, stable transmission, easy operation, good appearance
and so on.
There are
square pipe
roll forming machine (rectangular downspouts roll forming machine) and
round pipe
roll forming machine(round corrugated downspouts roll forming machine) also
separate elbow machines
.
In addition to downspout roll forming machines, our factory can also produce rain gutter roll forming machines.
Product details

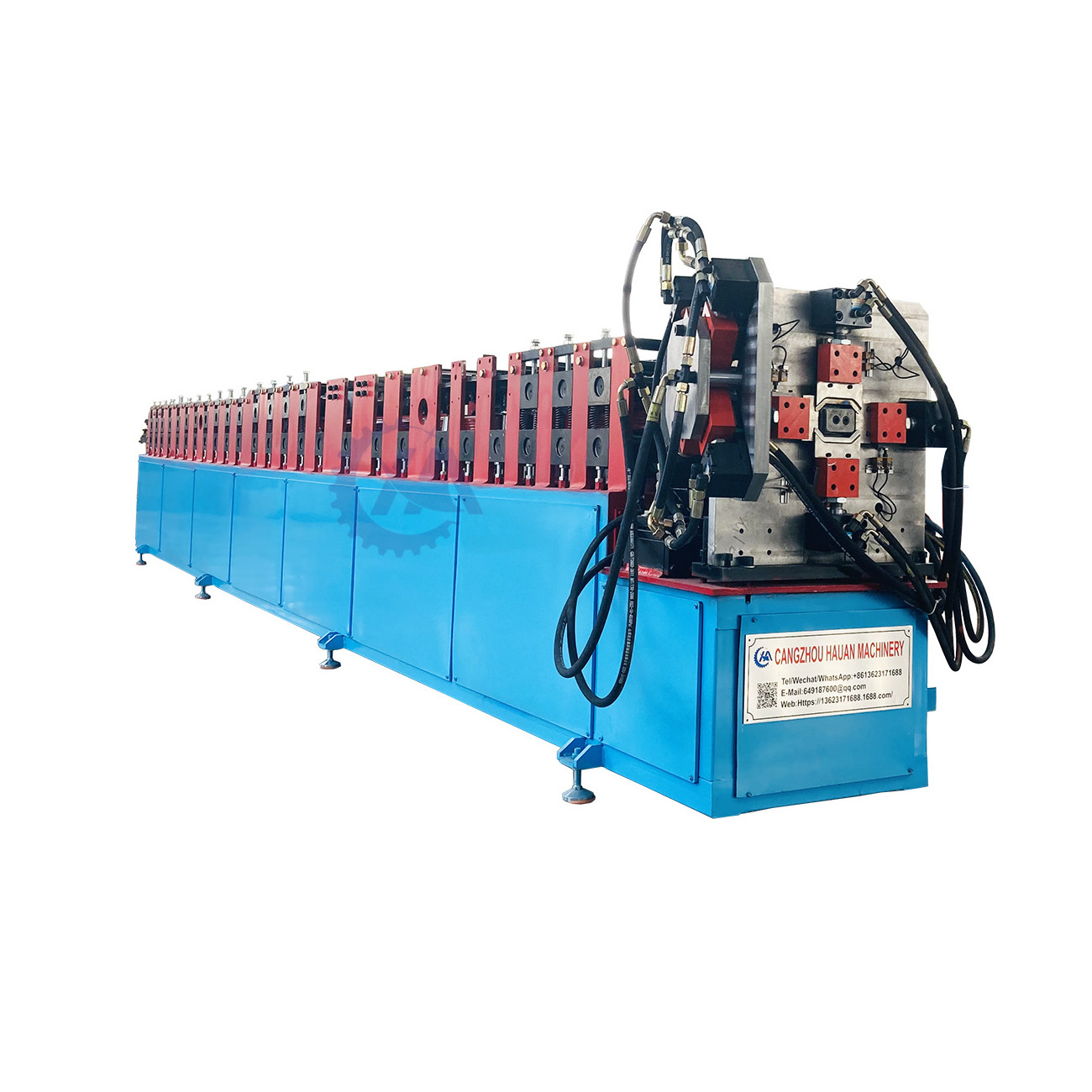

Cold roll forming machine manufacturers aluminum downspout pipe roll forming machine
Hydraulic station
Hydraulic motor: 7.5kW ;Updated type,low noise and cooling fan for long service time.
PLC control
Computer is used to control length and quantity. Machine will automatically cut to length you need and stop when required quantity is achieved.
Roll former
With a thickness of 0.04mm Shaft diameter=ф75mm, precisely machined Gear/gear drive to form about 14-step Main motor=11KW,frequency control
Cutting device
Cutting tool material: Cr12MoV, heat treatment up to HRC58-62 degrees.Cutting power is provided by the main engine hydraulic station.
Process flow
Decoiler——Guiding&Feeding——Roll Forming Machine——Hydraulic Press——Hydraulic cutter——Control System——Receiving table
Product Paramenters
|
1
|
Suitable to process
|
PPGL/PPGI/GL/GI
|
|
2
|
Effective width
|
customize
|
|
3
|
Feeding width
|
customize
|
|
4
|
Thickness of steel
|
0.3-0.8mm
|
|
5
|
Motor power
|
6kw
|
|
6
|
Working speed
|
8-12m/min
|
|
7
|
Main frame
|
300H steel
|
|
8
|
Voltage
|
As customer's requirement
|
|
9
|
Control system
|
PLC(delta brand)
|
We make
different solutions
according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for
your all requirements
. Our products can be customized according to customer needs.
Application
A downspout is a pipe runs vertically along the side of the home,it is connected at the top to a hole in the gutter channel,the other end bends outward and usually sits several inches above the ground.This allows the water to flow away from the homes it exits the pipe.A gutter is a channel installed at or just below the roof line at the edges of the home where the roof slopes downward.It is usually made of vinyl or aluminum or copper also,stainless steel .Around rain gutter has a slight downward pitch toward the corners of the home,encouraging rainwater or snow to flow "downhill" through the gutters and into the downspouts.The whole line include the downpipe roll forming machine and the downpipe bending machine.
