Quick Details
-
Model Number:
-
SW-T1
-
Max. Current:
-
25A
-
Mechanical Life:
-
500,000 times
-
Rating:
-
3A 5A mini toggle switch
-
Electrical Life:
-
10,000 times cycles/Min
-
Certification:
-
TUV,CCC,CE,RoHS, VDE,CQC, ce
-
Packing:
-
sealed
-
Contact Resistant:
-
30mΩ Max
-
Terminal form:
-
Solder Terminal PCB terminal
-
Waterproof:
-
Protecting Cap
-
Operating Temperature:
-
-30 ℃~+85℃
Quick Details
-
Max. Voltage:
-
250V mini toggle switch
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
switech
-
Model Number:
-
SW-T1
-
Max. Current:
-
25A
-
Mechanical Life:
-
500,000 times
-
Rating:
-
3A 5A mini toggle switch
-
Electrical Life:
-
10,000 times cycles/Min
-
Certification:
-
TUV,CCC,CE,RoHS, VDE,CQC, ce
-
Packing:
-
sealed
-
Contact Resistant:
-
30mΩ Max
-
Terminal form:
-
Solder Terminal PCB terminal
-
Waterproof:
-
Protecting Cap
-
Operating Temperature:
-
-30 ℃~+85℃
Products Description
|

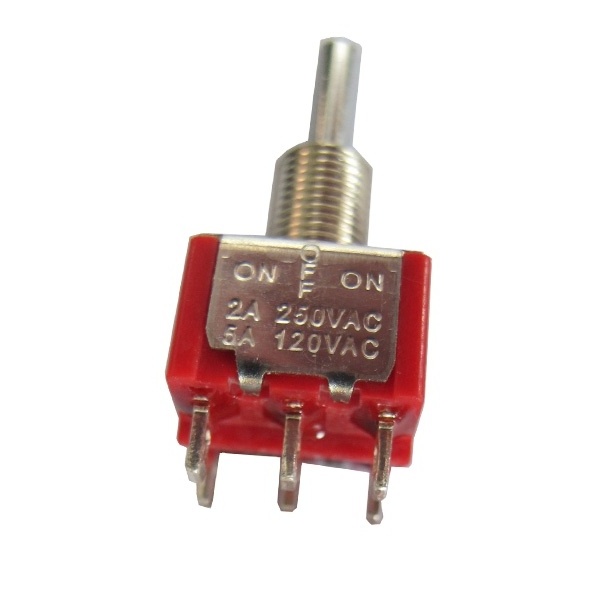

mini toggle switch specification
|
|
|
|
Contact rating
|
6A 125 VAC or 28 VDC(Q terminal)
|
|
|
Electrical life
|
50,000 make-and-break cycles at full load
|
|
|
CONTACT RESISTANCE
|
10mΩ max. Initial @2-4VDC,100mA
|
|
|
Insulation Resistance
|
1000 MΩ min
|
|
|
Dielectric Strength
|
1500 V RMS@ seal level
|
|
|
Operating Temperature
|
-30 ℃ to +85 ℃
|
|
|
Material
|
|
|
|
Case
|
Glass filled nylon6/6 or nylon 4/6(UL94v-0)
|
|
|
Actuator
|
Copper alloy, chorme palted with internal o-ring standard
|
|
|
Switch Support
|
Copper alloy or steel, tin palted
|
|
|
Contact and Terminal
|
Cooper alloy, silver plated
|
|
|
Terminal sealing
|
epoxy
|
|
