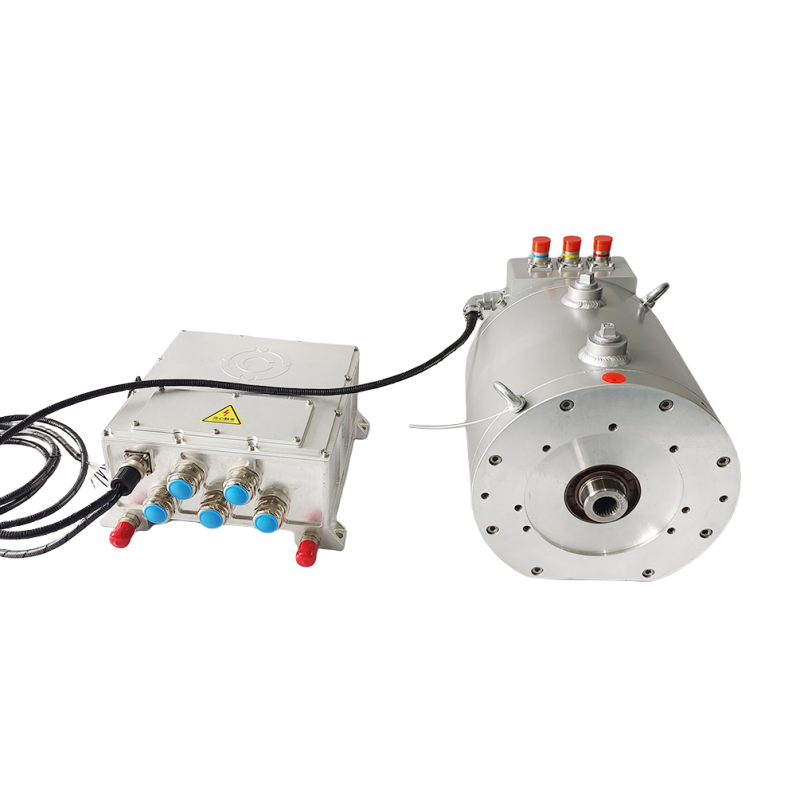

55KW PMSM motor with motor controller electric motor for car
55KW PMSM motor with motor controller electric motor for car
55KW PMSM motor with motor controller electric motor for car
55KW PMSM motor with motor controller electric motor for car
55KW PMSM motor with motor controller electric motor for car
55KW PMSM motor with motor controller electric motor for car
55KW PMSM motor with motor controller electric motor for car
55KW PMSM motor with motor controller electric motor for car

55KW PMSM motor with motor controller electric motor for car

FOB Reference Price: Get Latest Price
≥2 Pieces
US $3800
≥5 Pieces
US $3700
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
WFIT
Model Number:
TZ-280-X-G-GA05
Frequency:
220Hz
Peak power::
80KW
Rated torque:
120Nm
Peak torque:
240Nm
Rated Power:
55KW
Rated curren:
152A
Peak current:
334A
Rated speed:
4400r/min
Maximum speed:
6000r/min
Torque constant:
0.79Nm/A
Non-load counter electromotive force:
240V

Quick Details

AC Voltage:
240V
Warranty:
1 Year
Place of Origin:
Henan, China
Brand Name:
WFIT
Model Number:
TZ-280-X-G-GA05
Frequency:
220Hz
Peak power::
80KW
Rated torque:
120Nm
Peak torque:
240Nm
Rated Power:
55KW
Rated curren:
152A
Peak current:
334A
Rated speed:
4400r/min
Maximum speed:
6000r/min
Torque constant:
0.79Nm/A
Non-load counter electromotive force:
240V
High torque rated power 55KW peak power 80kw PMSM motor
and motor controller for electric vehicle
Product Description
Service environment temperature:-40℃~+55℃

Working environment relative humidity:30%~95%(no condensation)

Air pressure:86-106Kpa

Working altitude:≤1000M





Motor
Continous/Peak Power(KW)
55/80
Continous/Peak Torque(Nm)
120/240
Duty
S9
Continous/Peak Speed(Rpm)
4400/6000
Continous/Peak Current(A)
152/334
DC Bus Range(V)
350-750
Peak Effieciency
95%
Motor Diemension(mm)
φ280*L300
Weight(kg)
62
Cooling
(Water50%+50%Glycol)
Temperature Sensor
PT100
Position Sensor
Resolver
DC Bys/Battery Voltage(v)
540
Input Voltage Range(V)
350-750
Rated Power(Kw)
200
Rates Output Current(A)
380
Max Output Current(A)
570
Output Freqency Range(HZ)
0-450
Cooling
Water Cooling
Application
For logistics vehicle load less than 4.5 tons.Mini Sports Car.
