Quick Details
-
Model Number:
-
ZY-000
-
Thickness:
-
above 1.5mm
-
Size:
-
customized size
-
type:
-
Cast
-
Color:
-
clear ,colored, frosty etc.
-
thickness:
-
2mm-50mm
-
size:
-
customized 1220*1830,1220*2440,2050*3050
-
density:
-
1.20g/cm3
-
light transmittance:
-
93%
-
packing:
-
PE film and kraft paper covering and wooden pallet for delivery
-
thermal forming temperature:
-
140℃-180℃
-
Advantage:
-
High uv light Resistant
-
material:
-
100% virgin material from lucite
Quick Details
-
Processing Service:
-
Cutting, Moulding, color matching, printing
-
Place of Origin:
-
China
-
Brand Name:
-
walglass
-
Model Number:
-
ZY-000
-
Thickness:
-
above 1.5mm
-
Size:
-
customized size
-
type:
-
Cast
-
Color:
-
clear ,colored, frosty etc.
-
thickness:
-
2mm-50mm
-
size:
-
customized 1220*1830,1220*2440,2050*3050
-
density:
-
1.20g/cm3
-
light transmittance:
-
93%
-
packing:
-
PE film and kraft paper covering and wooden pallet for delivery
-
thermal forming temperature:
-
140℃-180℃
-
Advantage:
-
High uv light Resistant
-
material:
-
100% virgin material from lucite
Overviews
Normal Size
|
number
|
size with edge(for thickness 1.5mm-50mm)
|
size without edge(for thickness 1.5mm-50mm)
|
|
T
|
1050mm*2050mm
|
1000mm*2000mm
|
|
Q
|
1270mm*1880mm
|
1220mm*1830mm
|
|
R
|
1230mm*1840mm
|
1180mm*1790mm
|
|
E
|
1200mm*2350mm
|
1150mm*2300mm
|
|
F
|
1230mm*2450mm
|
1180mm*2400mm
|
|
L
|
1270mm*2490mm
|
1220mm*2440mm
|
|
H
|
1320mm*2590mm
|
1270mm*2540mm
|
|
N
|
1550mm*3050mm
|
1500mm*3000mm
|
|
M
|
2050mm*3050mm
|
2010mm*3010mm
|
|
W
|
2100mm*3100mm
|
2050mm*3050mm
|
(
Note
: we can prduce acrylic plate according to customer's size requirements.
thickness:1.5mm-50mm
)
Quick Details
|
Product Name
|

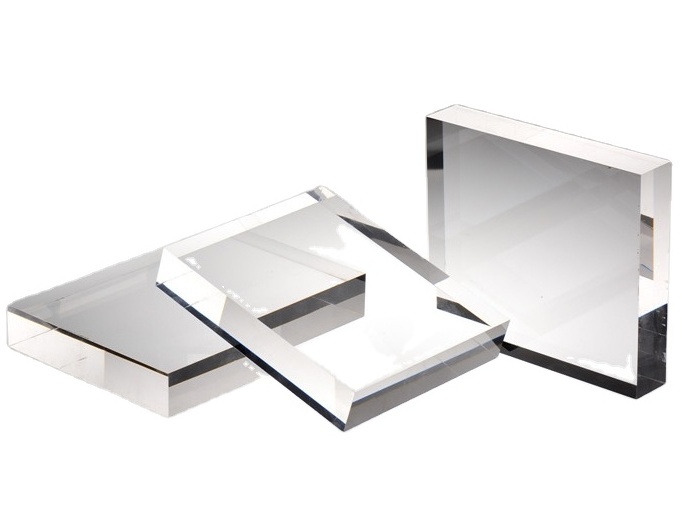

Acrylic Material 2mm - 50mm Thickness Plexiglass Sheet Clear
|
|
Brand Name
|
Walglass
|
|
Material
|
Acrylic, 100% Pure from Lucite
|
|
Sheet Size
|
1220mm*1830mm, 1220mm*2440mm ect, Support of Custom-made
|
|
Thickness
|
2mm-50mm
|
|
Density
|
1.20g/m3
|
|
Color
|
Color Chain, Support of Custom-made
|
|
Quality
|
High-quality, SGS, ISO
|
|
Service
|
OEM,Support to take sample
|
|
Order
|
Trial Order, Mini Order, Big Order
|
|
Application
|
Furniture, Bathroom, Craft, Advertising, Building, Fashion ect.
|
|
Payment
|
L/C, T/T
|
|
MOQ
|
2 Ton/Tons
|
Product Description
Tolerance
|
Thickness(mm)
|
Tolerance
|
Thickness(mm)
|
Tolerance
|
|
1.5
|
± 0.2
|
15-18
|
± 1
|
|
2-3
|
± 0.4
|
20-25
|
± 1.5
|
|
3.5-8
|
± 0.5
|
30-35
|
± 1.7
|
|
9-10
|
± 0.6
|
40-45
|
± 2
|
|
11-12
|
± 0.7
|
50
|
± 2.5
|
|
13
|
± 0.8
|
|
|
Physical Properties
|
Specific Gravity
|
1.19-1.20
|
|
Rockwell Hardness
|
M-100
|
|
Shear Strength
|
630kg/cm2
|
|
Tensile Strength
|
760kg/cm2
|
|
Yield Strength
|
1260kg/cm2
|
|
Rupture Strength
|
1050kg/cm2
|
|
Light Transmittance
|
93%
|
|
Refractive Index
|
1.49
|
|
Heat Distortion Temperature
|
100℃
|
|
Thermal Forming Temperature
|
140℃-180℃
|
|
Coefficient of linear Thermal Expansion
|
6*10-5cm/cm/℃
|
|
Dielectric Strength
|
20kv/mm
|
|
Water(24HRS) Absorption
|
0.30%
|
