Quick Details
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HYSTOU
-
Model Number:
-
H4 i5-8250U
-
Power:
-
52W
-
Operating System:
-
Win10/11
-
Chipset Type:
-
Intel
-

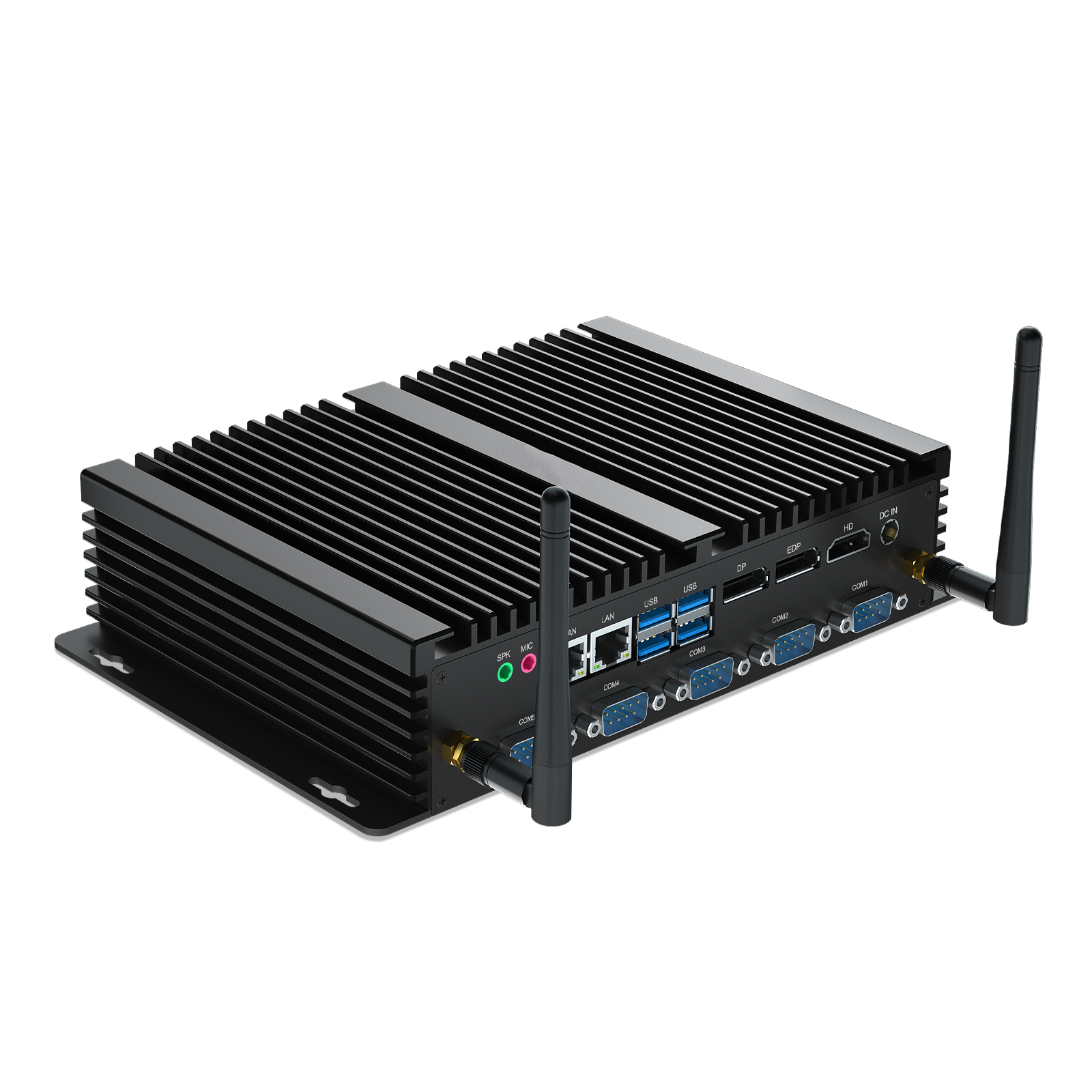

Product Name:
-
Industrial Mini PC
-
CPU:
-
Intel Core i5-8250U
-
Memory Type:
-
2*DDR4 SO-DIMM 260 pin
-
GPU:
-
Intel UHD Graphics 620
-
RAM:
-
Max 64GB
-
USB Port:
-
4*USB 3.0 port,4*USB 2.0 port
-
Display port:
-
HD+EDP+DP
-
LAN:
-
2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211
-
System:
-
Win10/11, Linux
-
Size:
-
Package size 320*260*80mm
Quick Details
-
Use:
-
Industrial
-
Hard Drive Type:
-
SSD+HDD
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HYSTOU
-
Model Number:
-
H4 i5-8250U
-
Power:
-
52W
-
Operating System:
-
Win10/11
-
Chipset Type:
-
Intel
-
Product Name:
-
Industrial Mini PC
-
CPU:
-
Intel Core i5-8250U
-
Memory Type:
-
2*DDR4 SO-DIMM 260 pin
-
GPU:
-
Intel UHD Graphics 620
-
RAM:
-
Max 64GB
-
USB Port:
-
4*USB 3.0 port,4*USB 2.0 port
-
Display port:
-
HD+EDP+DP
-
LAN:
-
2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211
-
System:
-
Win10/11, Linux
-
Size:
-
Package size 320*260*80mm
Company Introduction
Hystou is a professional manufacturer and exporter of desktop mini PC.OEM and ODM orders are welcomed.
The more you purchase, the cheaper the prlce.
Details Images
Why Choose This Windows 11 Mini PC?
1. Stable and Fast Performance
:
Intel Core i5-8250U
Quad Core Processor,
max Turbo 1.60GHz up to 3.4GHz.
2. Storage Expansion: by 1*SATA3.0 Slot for 2.5 inch HDD/SSD
3. Memory Types : Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory.
4 . A Great HTPC: With HD DP and EDP Port to support triple display , Enjoy 4K HD video at home
2. Storage Expansion: by 1*SATA3.0 Slot for 2.5 inch HDD/SSD
3. Memory Types : Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory.
4 . A Great HTPC: With HD DP and EDP Port to support triple display , Enjoy 4K HD video at home
【Quiet and Fanless】
Compared with most mini PCs with fans on the market, HYSTOU mini PC adopts patented fanless cooling technology and runs quietly at 65~70℃. No fan, no noise, no dust.
【Support 4K three-screen display】
This mini computer supports 4K ultra-high-definition (4096×2160@60GHz) three displays (
1 HDMI 4K, 1 EDP, and 1 DP
), allowing you to easily handle multiple tasks at the same time, saving you time and improve work efficiency. Enjoy smooth 4K UHD video at home for a great TV experience with lifelike picture quality. Ideal for home theater, office, digital advertising display, astrophotography, video conferencing and more.
【Mini Size, Large and Highly Scalable Storage】
This micro computer is only 238*182*52mm, very compact and portable. You can also mount the mini PC behind a monitor with a VESA mount to provide you with a clean desktop environment.
To beeter use this HYSTOU H4 Desktop Computer
* Q1: How to set up Dual Screen Display?
* A1: Please click and select Start>Settings>System>Display. Your PC should automatically detect your monitor and display yourdesktop. If you don’t see the monitor, select Detect.
* Q2: Can it run games?
* A2: The Mini PC is suitable for some low-consumption games, more suitable for office, streaming video, web browsing,distance learning, home entertainment.
* Q3: What is the maximum expansion SSD?
* A3: H4 supports up to 2T 2.5 inch SSD or HDD for expansion
* Q4: How to enter BIOS?
* A4: Press "delete" to enter the BIOS settings; press "F7" to enter the boot options menu (click continuously immediately after booting
* A1: Please click and select Start>Settings>System>Display. Your PC should automatically detect your monitor and display yourdesktop. If you don’t see the monitor, select Detect.
* Q2: Can it run games?
* A2: The Mini PC is suitable for some low-consumption games, more suitable for office, streaming video, web browsing,distance learning, home entertainment.
* Q3: What is the maximum expansion SSD?
* A3: H4 supports up to 2T 2.5 inch SSD or HDD for expansion
* Q4: How to enter BIOS?
* A4: Press "delete" to enter the BIOS settings; press "F7" to enter the boot options menu (click continuously immediately after booting
Product Description
|
|
||
|
CPU
|
Intel Core i5-8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40 GHz)
|
|
|
TDP
|
15W
|
|
|
CPU Lithography
|
14 nm
|
|
|
Memory Specifications
|
|
|
|
Max Memory Size
|
64GB
|
|
|
Memory Types
|
260 pin DDR4 SO-DIMMs
|
|
|
Memory Channels
|
Dual Channels
|
|
|
ECC Memory
|
Don’t support
|
|
|
Storage Specification
|
|
|
|
m.2 SSD
|
1*M.2 2280 M KEY PCIE3.0
|
|
|
SATA
|
1*SATA3.0 Slot for 2.5 inch HDD/SSD
|
|
|
mSATA
|
1*mSATA slot
|
|
|
Graphics
|
|
|
|
Processor Graphics
|
Intel UHD Graphics 620
|
|
|
HDMI
|
1*HD-MI 4096*2160@60Hz(4K)
|
|
|
EDP
|
1*EDP 4096*2160@60Hz(4K)
|
|
|
DP
|
1*DP 4096*2160@60Hz(4K)
|
|
|
Power Specification
|
|
|
|
Adapter Output
|
DC 12V/6A
|
|
|
Adapter Input
|
AC 110-240V, 50/60HZ
|
|
|
Consumption
|
52W
|
|
|
Auto Power On
|
Support Auto Power On Function
|
|
|
In & Out interfaces
|
|
|
|
USB Port
|
4*USB 3.0 port,4*USB 2.0 port
|
|
|
Audio
|
1*3.5mm MIC in & SPK out
|
|
|
Video
|
HD-MI 4096*2160@60Hz + EDP 4096*2160@60Hz + DP 4096*2160@60Hz 3 Display Output
|
|
|
Audio Cards
|
Realtek ALC 662/897
|
|
|
M.2
|
1*M.2 E KEY 2230
|
|
|
LPT
|
1*LPT(line print terminal)
|
|
|
Lan Port
|
2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211
|
|
|
Com Port
|
6*RS232 Com port/4*RS232 Com port, 2*RS485 Com port
|
|
|
Wi-Fi
|
Inside Wifi & Blue-tooth Combo
|
|
|
Others
|
|
|
|
System
|
Support Windows 10/11, Linux
|
|
|
BIOS
|
Support TPM2.0,RAID,AUTO POWER ON,Wake On LAN,Watchdog,PXE/IPXE
|
|
|
SIM
|
1*SIM slot
|
|
|
MPCIE
|
1*MPCIE,Support 4G/Wifi module
|
|
|
Work Environment
|
-10℃--60℃(14F~140F) , 30%--90% Humidity
|
|
|
Case Material
|
Full Brushed Aluminum Alloy
|
|
|
Dimension
|
PC size 238*182*52mm
Package size 320*260*80mm |
|
|
Weight
|
Net 1.5kg; Gross 2.2 kg
|
|
Packing&Shipping
PackIng Llst:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card &user manual
