- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
≥ 99%, ≥ 99%
-
Voltage:
-
AC Three-Phase 380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VTOPS
-
Dimension(L*W*H):
-
6000*830*2200 mm
-
Weight:
-
400 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Liquid Filling Machine
-
Output:
-
3600 BPH
-
Machine Material:
-
Food Grade Stainless Steel SUS 304
-
Main Function:
-
Liquid Filler
-
Warranty Period:
-
2 Years
-
Manufacturing Experience:
-
Since 2001
-
Installation and Training:
-
Support
-
Customize:
-
Support
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Plastic, Wood
-
Filling Material:
-
Milk, Water, Juice
-
Filling Accuracy:
-
≥ 99%, ≥ 99%
-
Voltage:
-
AC Three-Phase 380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VTOPS
-
Dimension(L*W*H):
-
6000*830*2200 mm
-
Weight:
-
400 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Liquid Filling Machine
-
Output:
-
3600 BPH
-
Machine Material:
-
Food Grade Stainless Steel SUS 304
-
Main Function:
-
Liquid Filler
-
Warranty Period:
-
2 Years
-
Manufacturing Experience:
-
Since 2001
-
Installation and Training:
-
Support
-
Customize:
-
Support
Products Description
|
Model:
|
VTOPS-L12
|
|
Brand:
|
VTOPS
|
|
Manufacturer:
|
Zhengzhou Vtops Machinery Co., Ltd.
|
|
Nozzles:
|
12 nozzles (4, 6, 8, 10, 16 are customizable)
|
|
Output:
|
3600 BPH
|
|
Filling Capacity:
|
40-1500 ml
|
|
Measurement Accuracy:
|
≤ ±1%
|
|
Contained Conveyor Belt:
|
6 meters
|
|
HMI:
|
LCD Touch Screen (Brand of Delta)
|
|
Control System:
|
PLC (Brand of Delta)
|
|
Voltage:
|
AC Three-phase 380V 1.5Kw
|
|
Air Pressure:
|
0.5-0.7 mpa
|
|
Dimensions:
|
2000× 1200×1800mm
|
|
Machine Weight:
|
400 kgs
|

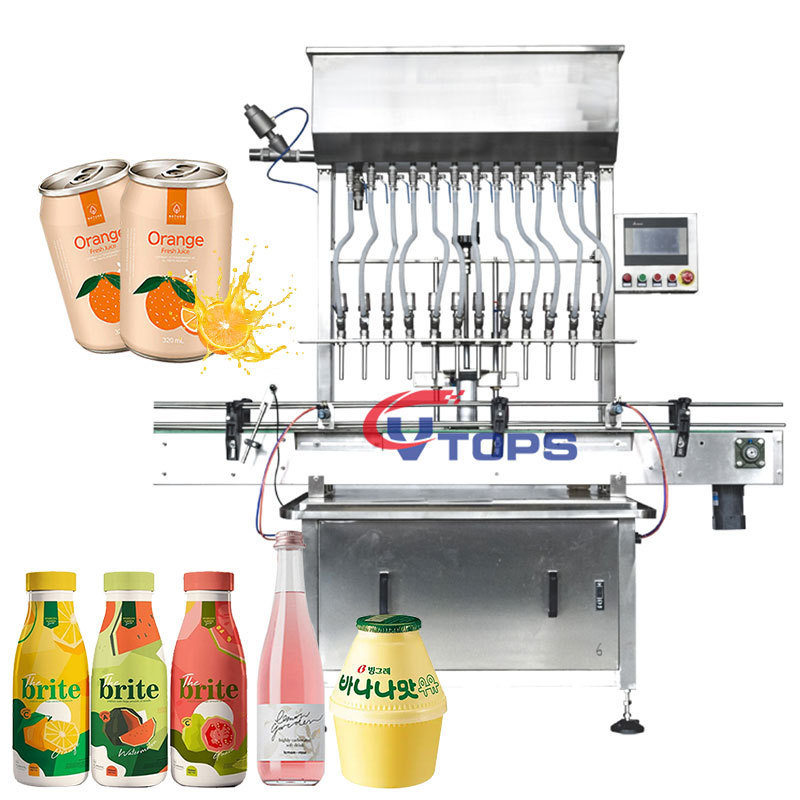

2022 Multi Heads 12 Nozzles Liquid Filling Machine / Vtops Automatic Overflow Liquid Bottle Filler for Beverage Juice
It is used in the fill a wide range of water-thin to low-viscosity liquid without gas. Such as, juice, soy sauce, vinegar, edible
oil, oral liquid, disinfectant, pesticide, chemical, detergent, lubricating oil, cosmetics, and so on.
