- Product Details
- {{item.text}}
Quick Details
-
Interface Type:
-
usb
-
Keyboard Standard:
-
104 Keys
-
Brand Name:
-
Digimore
-
Model Number:
-
KB-6878-MS
-
Place of Origin:
-
Taiwan
-
Job type:
-
USB
-
Interface:
-
USB 1.1
-
Private mode:
-
Yes
-
Keyboard:
-
104/105/ 109 Keys (US/ EU/JP)
-
Product status:
-
New
-
Scope of application:
-
Desktop
-
Key Switch:
-
Mechanical MX Switch compatible; tactile and audible feedback
-
Dimension:
-
455.01 (L) x 178.2 (D) x 34.38 (H) mm
-
Box / Weight:
-
480 x (L) x 200 (D) x 50 (H) mm/ 1.45 kgs
Quick Details
-
Operation Style:
-
Mechanical
-
Style:
-
Standard, ERGONOMICS, Qwerty, Mechanical, Keyboard built-in smart card and magnetic strip card readers
-
Type:
-
Wired
-
Interface Type:
-
usb
-
Keyboard Standard:
-
104 Keys
-
Brand Name:
-
Digimore
-
Model Number:
-
KB-6878-MS
-
Place of Origin:
-
Taiwan
-
Job type:
-
USB
-
Interface:
-
USB 1.1
-
Private mode:
-
Yes
-
Keyboard:
-
104/105/ 109 Keys (US/ EU/JP)
-
Product status:
-
New
-
Scope of application:
-
Desktop
-
Key Switch:
-
Mechanical MX Switch compatible; tactile and audible feedback
-
Dimension:
-
455.01 (L) x 178.2 (D) x 34.38 (H) mm
-
Box / Weight:
-
480 x (L) x 200 (D) x 50 (H) mm/ 1.45 kgs
Products Description

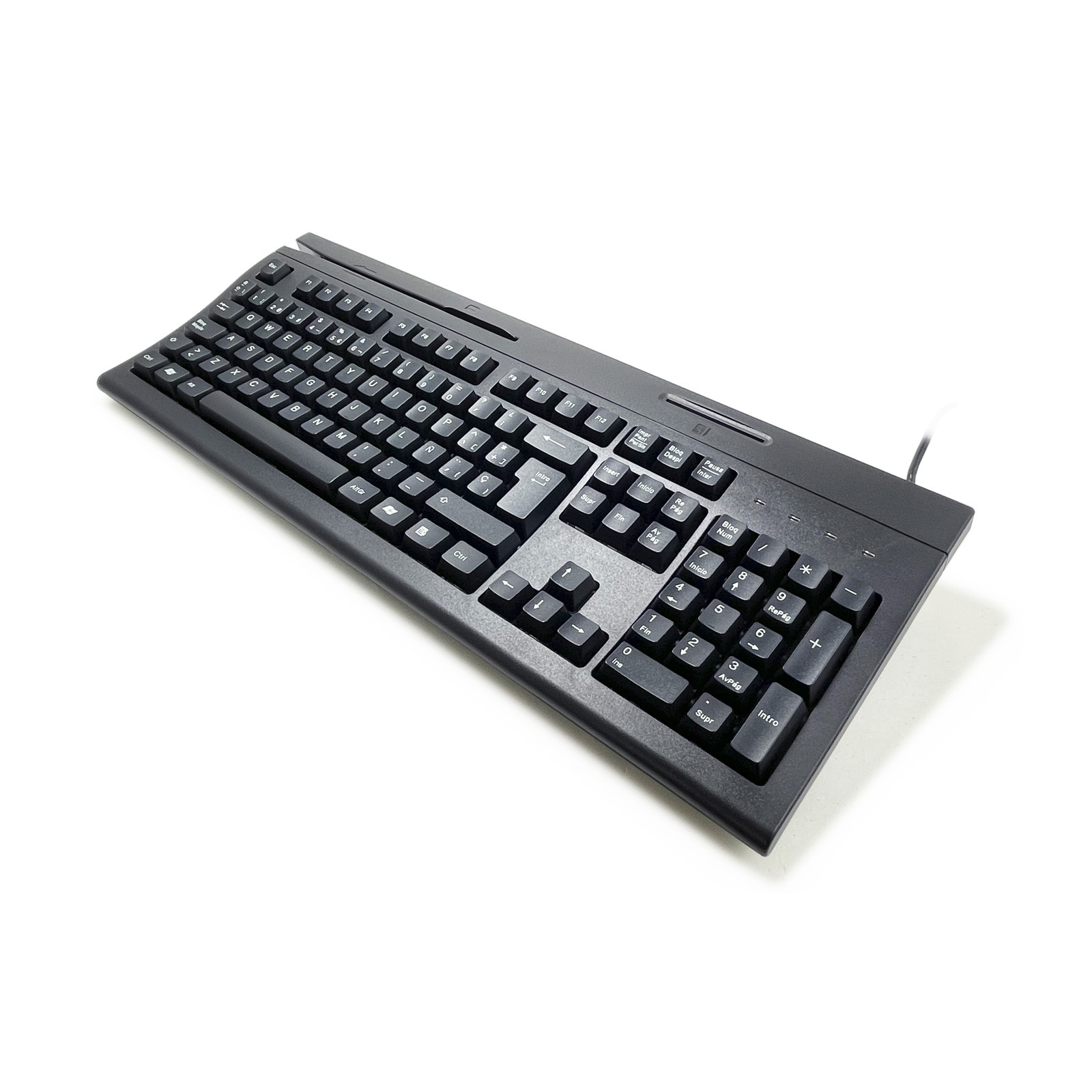

The DIGIMORE KB-6878-MS is a 104/105-key mechanical keyboard that's designed to offer secure terminal functionality for computer users in public sectors, hospitals, education, banking, or point of sale (POS) settings. With its integrated Magnetic Swipe Card Reader and Smart Card Reader, the KB-6878-MS is an all-in-one solution for businesses looking to streamline their operations.
The magnetic swipe card reader on the KB-6878-MS is fully compliant with ISO 7810 and 7811-1 magnetic card decoding standards, ensuring complete accuracy when reading magnetic cards. Additionally, the intelligent beeper on the keyboard alerts users to any errors during the card reading process, ensuring that data is captured without any issues.
The Smart Card Reader on the KB-6878-MS is perfect for user authentication and is compliant with ISO 7816 Class A, AB, and C memory and microprocessor smart cards (T=0, T=1). This ensures that businesses can easily comply with the latest security
standards and regulations.
Overall, the DIGIMORE KB-6878-MS is an essential tool for any business looking to increase efficiency and security in their operations.
The Smart Card Reader on the KB-6878-MS is perfect for user authentication and is compliant with ISO 7816 Class A, AB, and C memory and microprocessor smart cards (T=0, T=1). This ensures that businesses can easily comply with the latest security
standards and regulations.
Overall, the DIGIMORE KB-6878-MS is an essential tool for any business looking to increase efficiency and security in their operations.
Specification
|
Keyboard
|
|
|
|
|
||||
|
Key Number
|
104/105/ 109 Keys (US/ EU/JP)
|
|
|
|
||||
|
Key Switch
|
Mechanical MX Switch compatible; tactile and audible feedback
|
|
|
|
||||
|
Durability
|
> 50 million actuations
|
|
|
|
||||
|
Key Force
|
60cN operating force
|
|
|
|
||||
|
Traveling Distance
|
2.2 mm pre travel; 4.0 mm total travel
|
|
|
|
||||
|
LED Indicator
|
4 LEDs, Num Lock, Caps Lock, Scroll Lock, MSR Read/ Write
|
|
|
|
||||
|
Input Power / Interface
|
5 VDC, 100mA / USB 1.1 version;
|
|
|
|
||||
|
Magnetic Stripe Card Reader
|
|
|
|
|
||||
|
Number of Tracks
|
Track 1 & 2 or Track 1, 2 & 3
|
|
|
|
||||
|
Compatibility
|
ISO 7810 and 7811-1 through -6 cards/ Reads AAMVA driver license cards
|
|
|
|
||||
|
Communications
|
Decoded track data sent through keyboard communication cable
|
|
|
|
||||
|
Output Data Formatting
|
Default card data output format or customized data output format is programmable through PC configuration utility. See Appendix A for default settings
|
|
|
|
||||
|
Operating Life
|
1,000,000 card swipes
|
|
|
|
||||
|
Card Speed Range
|
3 to 60 IPS (inches per second)
|
|
|
|
||||
|
Audio Beeper
|
Indicates error free card data reading
|
|
|
|
||||
|
Options - Encryption key
|
Also provide key Injection, Production Injection and TG3 Key Injection
|
|
|
|
||||
|
Smart Card Reader
|
|
|
|
|
||||
|
Standard
|
ISO7816
|
|
|
|
||||
|
Protocols
|
T=0, T=1.2-wire; SLE 4432/42 (S=10), 3-wire; SLE4418/28 (S=9), 12C (S=8)
|
|
|
|
||||
|
Reading Speed/ Frequency
|
420 Kbps / up to 8MHz
|
|
|
|
||||
|
Card Type Support
|
5V, 3V and 1.8V smart card ISO 7816 Class A, AB and C
|
|
|
|
||||
|
API Support
|
PCSC, CTAPI, Synchronous-API, OCF
|
|
|
|
||||
|
PCSC Driver Support
|
Windows 98/ME/2K/XP (32bit), 2003 Server Win, Win NT, Windows CE5.0/ CE.NET, Windows XP 64bit, Windows Vista (32bit/ 64bit), Windows 7, Linux
|
|
|
|
||||
|
Reliability
|
100K card insertions (500K life cycle time also available)
|
|
|
|
||||
|
Others
|
|
|
|
|
||||
|
Dimension
|
455.01 (L) x 178.2 (D) x 34.38 (H) mm/ 1.29 kgs
|
|
|
|
||||
|
Box / Weight
|
480 x (L) x 200 (D) x 50 (H) mm/ 1.45 kgs
|
|
|
|
||||
|
Packing Information
|
TBD
|
|
|
|
||||
