Quick Details
-
Brand Name:
-
PMU
-
Model Number:
-
Q8
-
Product name:
-

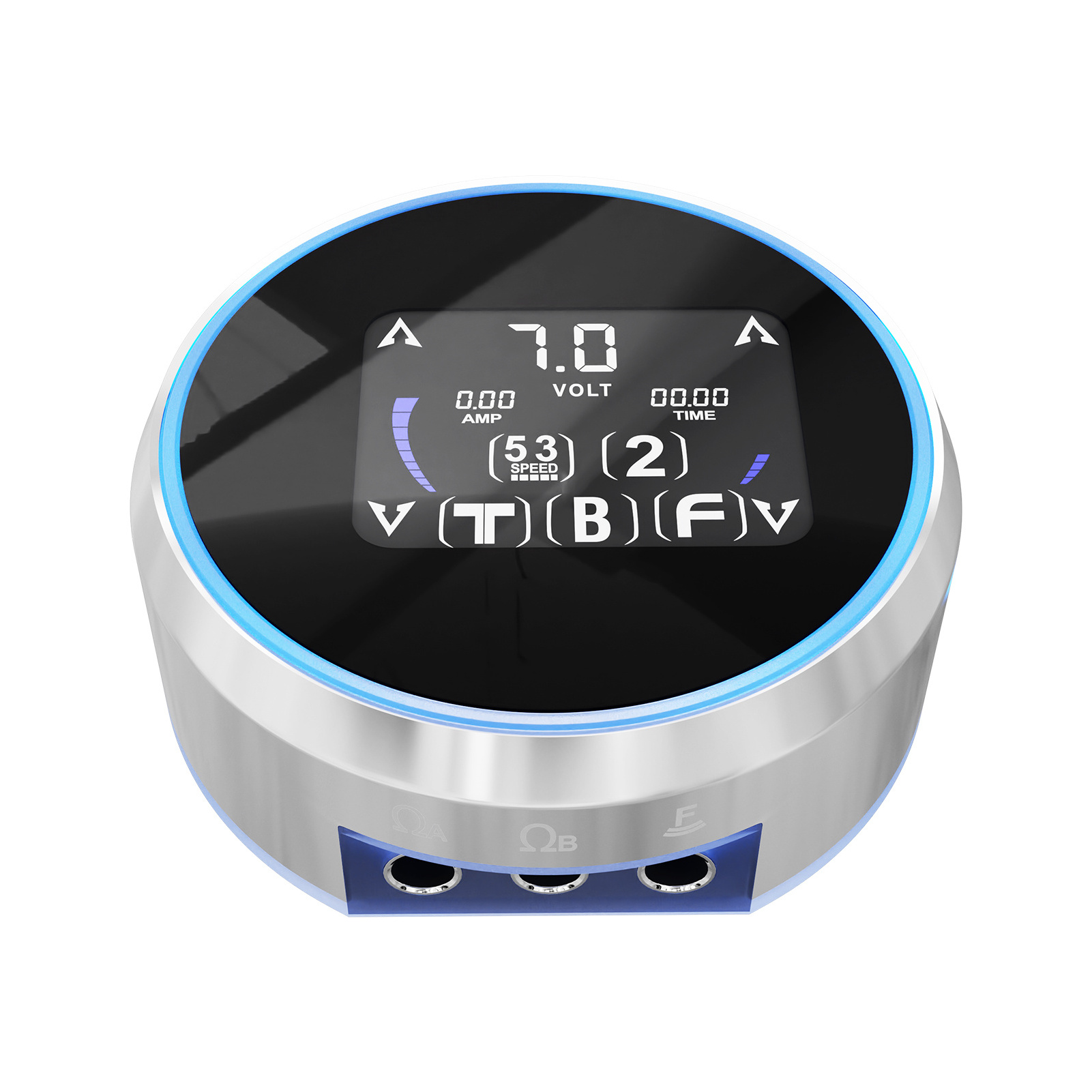

Tattoo Power Supply
-
Usage:
-
Eyebrow Lip Eyeliner Hairline SMP Areola
-
Advantage:
-
RCA interface,Connect 2 Tattoo Machine.
-
Display:
-
Touch Screen
-
Output voltage:
-
0-16V,Maximum Current 2.5A
-
Color:
-
Black/Silver
-
Weight:
-
282g
-
OEM/ODM:
-
Availalbe
-
Warranty:
-
2 years
-
MOQ:
-
1 Set
Quick Details
-
Material:
-
Stainless steel
-
Gun Type:
-
Electric
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
PMU
-
Model Number:
-
Q8
-
Product name:
-
Tattoo Power Supply
-
Usage:
-
Eyebrow Lip Eyeliner Hairline SMP Areola
-
Advantage:
-
RCA interface,Connect 2 Tattoo Machine.
-
Display:
-
Touch Screen
-
Output voltage:
-
0-16V,Maximum Current 2.5A
-
Color:
-
Black/Silver
-
Weight:
-
282g
-
OEM/ODM:
-
Availalbe
-
Warranty:
-
2 years
-
MOQ:
-
1 Set
Product Description
USAGE METHOD
A,B output ports connect to tattoo machines,the foot switch port connects to a foot pedal.
● The right side arrows adjust the voltage.Short press up arrow,or down arrow once to increases or decreases 0.1V.
Long press the voltage up arrow or down arrow to continuously increases or decreases the voltage.
The left side arrows adjust the prick speed.Short press up arrow or down arrow once increases or decreases the prick speed by 1.Long press the up arrow or down arrow can continuously increase or decrease the prick speed. The prick speed is 1 to 60(for coil tattoo machine). Press the prick speed to turn on/off the prick function.when the prick speed shows blue,prick function is on. Switch Control of Machines
● Press the switch control to switch between"A"and"B"outputs.
● When the screen shows "A",the power supply controls the tattoo machine connected to the A output.
● When the screen shows "B",the power supply controls the tattoo machine connected to the B output.
● When connected to the foot switch,step on the foot switch to start the tattoo machine,release the foot switch to stop the tattoo machine.
Specification
|
Adapter
|
Input Voltage:AC100V-240V/50HZ/60HZ
|
|
Output Voltage
|
DC12V/1.5A,DC port
|
|
Output DC plug
|
outer diameter 5.5mm,inner diameter 2.5mm
|
|
Product name
|
Tattoo Power Supply
|
|
Usage
|
Eyebrow Lip Eyeliner Hairline SMP Areola
|
|
Advantage
|
RCA interface,Connect 2 Tattoo Machine.
|
|
Display
|
Touch Screen
|
|
Output voltage
|
0-16V,Maximum Current 2.5A
|
|
Color
|
Black/Silver
|
|
Weight
|
282g
|
|
OEM/ODM
|
Availalbe
|
|
Warranty
|
2 years
|
|
MOQ
|
1 Set
|
