Quick Details
-
Rated Capacity:
-
10 t/h (wheat)
-
Chemical Seed Treater Application:
-
Cereal grains forage seeds
-
Total Power:
-
4.09 kW
-
Qualified Rate:
-
≥ 99%
-
Broken Rate:
-
≤0.1%
-
Dosage Rate:
-
1:25~1:120
-
Overall Dimension (LxWxH):
-
2230x1040x3080 mm
-
Available Treater Types:
-
Continuous seed treater, Batch seed treater
-
Supply Scope:
-
1-15t/h Seed processing plant
-
Certification:
-
ISO9001:2008, SGS, CE
Quick Details
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Seed Coating Machine, Continuous Seed Treater
-
Rated Capacity:
-
10 t/h (wheat)
-
Chemical Seed Treater Application:
-
Cereal grains forage seeds
-
Total Power:
-
4.09 kW
-
Qualified Rate:
-
≥ 99%
-
Broken Rate:
-
≤0.1%
-
Dosage Rate:
-
1:25~1:120
-
Overall Dimension (LxWxH):
-
2230x1040x3080 mm
-
Available Treater Types:
-
Continuous seed treater, Batch seed treater
-
Supply Scope:
-
1-15t/h Seed processing plant
-
Certification:
-
ISO9001:2008, SGS, CE
Continuous seminis seed seed coating machine corn seed maize machine
Hyde Machinery (Maosheng Group)
- Seed processing plant: 1~15 t/h
- Flour mill plant: 40~1000 t/d
- Manufacturer since 1976

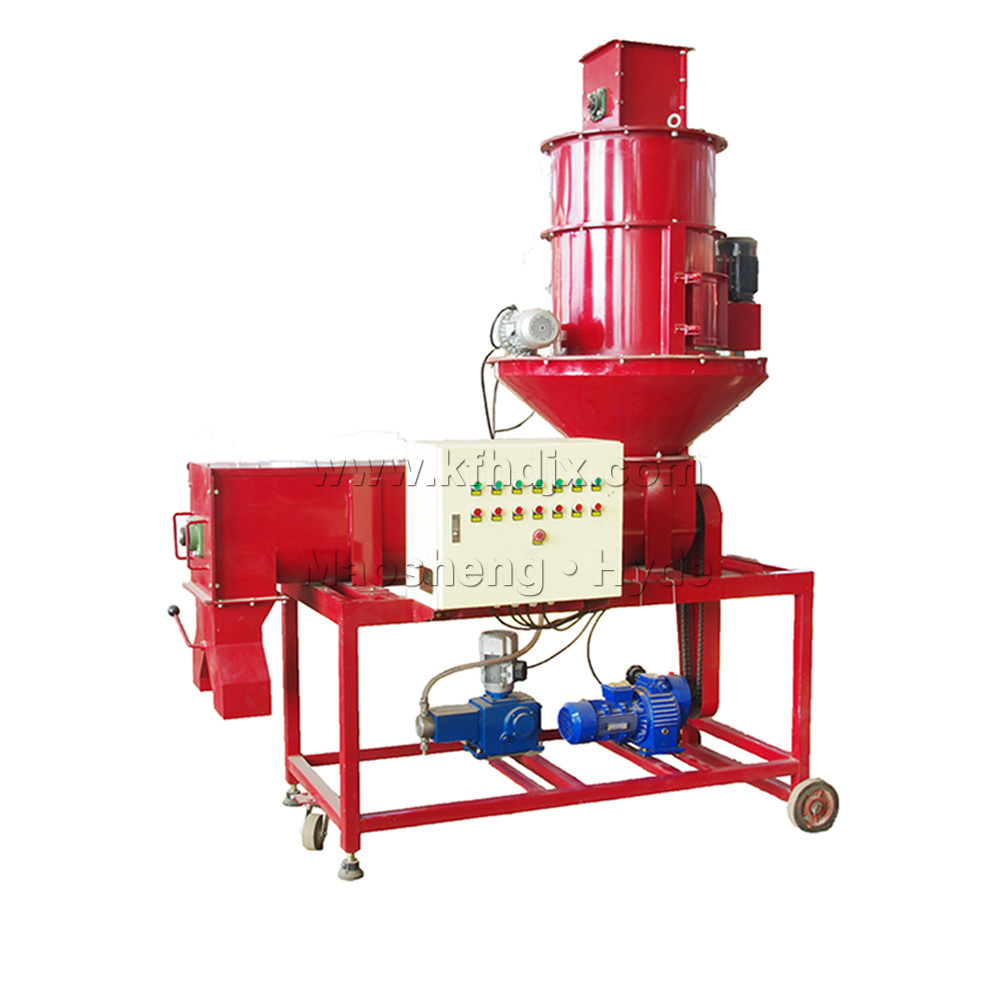

5BG Seed Chemical Treater
1) Function: seed treating with chemicals in continuous flow
2) Application: cereal grains and grass seeds.
3) Capacity: 5t/h, 10t/h (wheat, ≥99% qualified rate, ≤0.1 broken rate).
Hyde 5BG continuous seed chemical treaters (seed coating machines) are widely used for seed treatment with chemicals, typically fertilizers, antimicrobials, fungicides, or pesticides. The chemical dressing agent is applied on the grain a uniform layer in a continuous flow. Several seed dressing agents can be dosed at the same time.
All metal parts that directly contact with chemical agents are made of
stainless steel
.
5BG Seed Treater Application
Hyde 5BG continuous seed treater is an important seed processing equipment, widely used for dressing maize, cotton seed, wheat, paddy, beans, vegetable seeds, forage seeds before planting.
- Environmental friendly as using pesticides at very small amount.
- Add color to seeds, less attractive to birds.
5BG seed treaters in our seed processing plants:
Technical Specification of 5BG Seed Coating Machine
|
Model |
Capacity Based on Wheat (t/h) |
Dimensions (L×W×H) (mm) |
Motor Power (kW) |
|||||
|
Feeding |
Spraying Disk |
Pump |
Brush |
Mixer |
Screw |
|||
|
5BG-5 |
5.0 |
2300×800×2500 |
0.75 |
0.37 |
0.55 |
0.75 |
||
|
5BG-10 |
10.0 |
2230×1040×3080 |
0.75 |
0.55 |
0.55 |
0.37 |
0.37 |
1.5 |
Structure of 5BG Seed Treater
(1) Seed feeding
: impeller type feeder and level sensor.
(2) Dressing liquid dosing
: liquid tank, metering pump, three-way valve.
(3) Seed chemical treating chamber with seed distribution and chemical-spray rotating disc
(4) Cleaning brush of chamber
(5) Secondary mixer with rotating paddle
(6) Electric control system
5BG Seed Coating Machine Advantages
-
Compact and enclosed structure
-
Accurate dosing
-
Adjustable feeding
-
Uniform spray and mixing
-
Gentle handling of seeds
-
Easy to clean-up
-
Long service life, simple operation, high capacity.
