Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SEASUN
-
Model Number:
-
Spare Parts
-
Product name:
-
laser diodo 808 nm/810nm
-
Patent number:
-
ZL2012 2 0467341.6
-
Laser Power:
-
600W (can OEM)
-
Wavelength:
-
755/1064/808nm±10nm/810nm±2nm
-
Frequency:
-
1~10hz
-
Power supply:
-
1500W
-
Cooling system:
-
Water cooling+TEC cooling+ Fan cooling
-
Certification:
-
CE ISO13485
Quick Details
-
Feature:
-
Blood Vessels Removal, Face Lift, Hair Removal, Pigment Removal, Pigmentation Correctors, Skin Rejuvenation, Skin Tightening, Whitening
-
After-sales Service Provided:
-
Free spare parts, Online support, Video technical support
-
Warranty:
-
1 Year
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
SEASUN
-
Model Number:
-
Spare Parts
-
Product name:
-
laser diodo 808 nm/810nm
-
Patent number:
-
ZL2012 2 0467341.6
-
Laser Power:
-
600W (can OEM)
-
Wavelength:
-
755/1064/808nm±10nm/810nm±2nm
-
Frequency:
-
1~10hz
-
Power supply:
-
1500W
-
Cooling system:
-
Water cooling+TEC cooling+ Fan cooling
-
Certification:
-
CE ISO13485
Macro Micro Channel Laser Hair Removal Handle 810Nm 808Nm Diode Laser Bars Array Stack Module for Handpiece Repair
ONE-STOP LASER MACHINE AND PARTS SUPPLY
Best Selling
Product Description
Diode laser stack have 2 types. Type 1 is the macro channel laser module. Type 2 is the micro channel laser module.
Diode Laser Module,the individual emitting areas (emitters) line side by side, separated by the non-emitting areas(heat sink). These sets of emitting/non-emitting regions form the so-called active layer or laser bar.
Diode Laser Module,the individual emitting areas (emitters) line side by side, separated by the non-emitting areas(heat sink). These sets of emitting/non-emitting regions form the so-called active layer or laser bar.
The laser bar quantity, central wavelengths,outer structure sizes customizing is acceptable. That means ODM is acceptable. And tailor exclusively laser module is our core competency.
Your company logo can be written on the laser module. That means OEM is acceptable. The relative value of the
emitting areas in the active layer with respect to the bar width is the filling factor (FF). The Market FF is 10%-15%. In order to longer laser module lifetime, Our FF is the best 10%.
Z is the propagation axis of the laser radiation. The propagation axis Y is the fast axis (FA) and the X axis is the slow axis
(SA), referring to the rate of divergence. Compared with the traditional IPL technology,The diode laser technology has far much better lights beams focusingability. Our laser module FA is 36 degrees and SA is 4 degrees only. While IPL is 360 degrees and even after filtering, IPL FA is about 180 degrees.
You can use our diode laser stack to produce or repair your laser hair removal machine and laser handles.
emitting areas in the active layer with respect to the bar width is the filling factor (FF). The Market FF is 10%-15%. In order to longer laser module lifetime, Our FF is the best 10%.
Z is the propagation axis of the laser radiation. The propagation axis Y is the fast axis (FA) and the X axis is the slow axis
(SA), referring to the rate of divergence. Compared with the traditional IPL technology,The diode laser technology has far much better lights beams focusingability. Our laser module FA is 36 degrees and SA is 4 degrees only. While IPL is 360 degrees and even after filtering, IPL FA is about 180 degrees.
You can use our diode laser stack to produce or repair your laser hair removal machine and laser handles.
|
Product Name
|
Diode Laser Bar Stack
|
|
Company logo
|
Your company logo can be written on the module
|
|
Function
|
Produce / repair laser hair removal machines and handles, replace your old laser modules
|
|
New sizes structure customize
|
support
|
|
Laser power
|
Unit bar 50W / 60W / 80W / 100W / 120W / 200W optional
|
|
Electric connection map
|
support for free
|
|
Assembly guidance
|
support for free and 7*24 hours services
|
|
Tailor whole laser handpiece
|
support
|
|
Heat radiating
|
flowing cold water
|
|
Working voltage
|
6V to 48V according to your laser module
|
|
Packaging level
|
gold plate
|

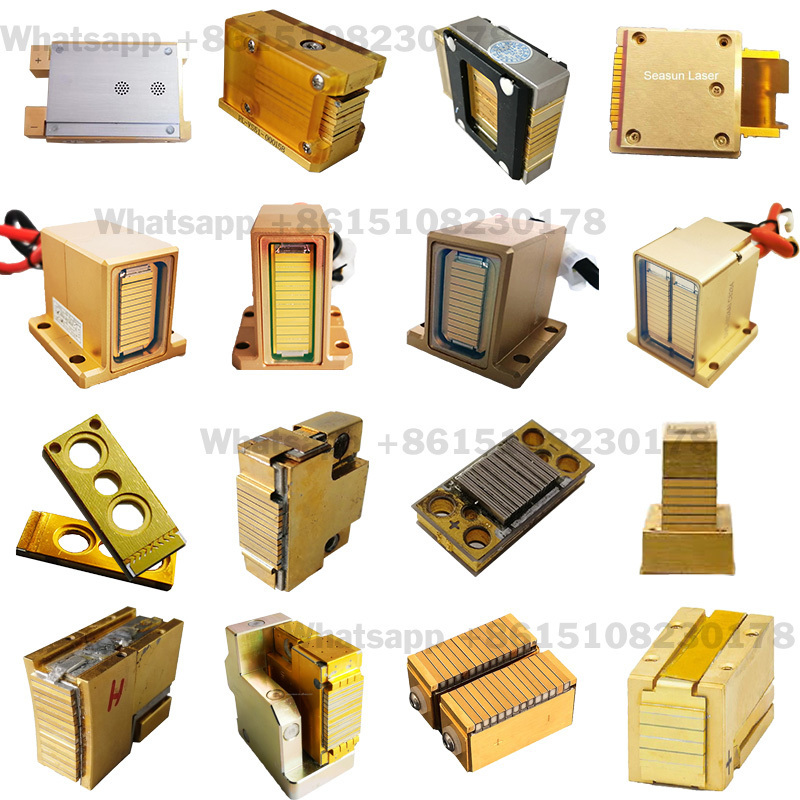

Macro channel laser modules
Hair removal macro channel laser have obvious advantages now.
1. Unit bar power can be 200W now. and in the market, the most popular are 50W,60W,100W laser bars.
2. affordable costs. Compared with expensive micro channel bars, macro channel laser have better price advantages.
3. Lifetime. the macro channel laser have bigger water road, so it is not easy to be blocked and burnt the laser. so the macro channel laser have longer lifetime generally.
4. several macro channel laser stacks are as below.
2. affordable costs. Compared with expensive micro channel bars, macro channel laser have better price advantages.
3. Lifetime. the macro channel laser have bigger water road, so it is not easy to be blocked and burnt the laser. so the macro channel laser have longer lifetime generally.
4. several macro channel laser stacks are as below.
Micro channel laser modules
Hair removal micro channel laser bars features
1. Unit bar power is usually 100W or 200W. It is the traditional strong power laser bars.
2. you can change some of the bars instead of change the whole laser stack.
3. Lower requirements on water temperature.
4. Several micro channel laser stacks are as below.
2. you can change some of the bars instead of change the whole laser stack.
3. Lower requirements on water temperature.
4. Several micro channel laser stacks are as below.
Diode laser stack applications
Our diode laser stacks can be used to produce or repair laser hair removal handpieces and assembly laser hair removal machine. Furtherly. Several hair removal laser handles samples are as below
Produce new diode laser handles
Several new 808nm diode laser handles producing displaying. We can also customize design and produce hair removal diode handles for you.
Repair old hair removal laser handpieces
Several old hair removal diode laser handpieces repair showing.As a professional laser technology center, we repaired over 2000 pcs handles per year.
Using Effects
With our diode laser stack, then you can produce hair removal laser handle out, Then you can assembly portable or vertical diode laser hair removal machines. Here are some sample machines as below for your references. You can also buy some chassis from market to produce hair removal diode laser machines.
Related Products
$500 - $ 2000 Pieces
1 Pieces
(MOQ)
$700 - $ 3000 Pieces
1 Pieces
(MOQ)
$1500 - $ 4000 Pieces
1 Pieces
(MOQ)
Certificate
-
ISO 13485
-
Europe CE
Thailand CFS
Packing & Delivery
All our diode laser spare parts are packed into strong cartons with customized vibration-resistant polyethylene foam. professional and Safety. Reinforcement belt to enhance the packing. And also professional aluminum flight case is optional. Just the aluminum box empty is about 10Kg..so the shipping costs will increasing a little.
Company Introduction
Seasun Laser started its hair removal 808nm diode laser complete spare parts supplying in 2009 as the China first one to provide diode laser technology services. Till now,We produce and supply diode laser stacks,hair removal laser handles, ready machines and complete spare parts of laser hair removal, fractional CO2 laser,vacuum roller RF weight loss body slimming,H I F U face and body, Picosecond laser, Tattoo removal, nutrient liquid injection,IPL etc. We can customize and produce beauty equipment for you and we can help you produce beauty equipment in your office also. We are aim to become your beauty equipment technology service center.
FAQ
If you have questions, Welcome to Whatsapp/wechat +8615108230178 for fast answer. And also you can get some fast answers as below.
Q1: Delivery methods ?
we can offer the door to door service by air or by sea, just depend on your actual request. Such as DHL, UPS, TNT, FEDEX…by airplane; and the sea transportation to all over the world, including America, Canada, Brazil, Russia, Mexico etc.
Q2: What's package ?
Strong and beautiful aluminum alloy box for long distance transportation with customized vibration-resistant polyethylene foam. professional and Safety.
Q3: Delivery time ?
after we get the payment within 1-7 working days.
Q4: After sale service or technology supports ?
we have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (Skype, whatsApp +8615108230178).
Q5: OEM & ODM service ?
Both are ok. we offer professional services on software & hardware design and production.
