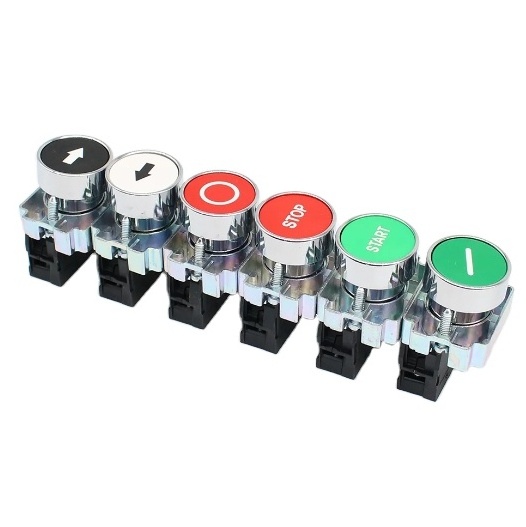

High quality XB2 button switch power supply start stop self reset point move round flat head symbol switch 22mm

High quality XB2 button switch power supply start stop self reset point move round flat head symbol switch 22mm

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1.06

≥100 Pieces

US $1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: HABOO

Model Number:: HBX22-A110R

Mounting Hole Size:: 22mm Diameter

Head shape:: Flat Round Head

LED color:: red/green/blue/yellow/white

Function:: Momentary/latching

Contact Type:: 1NO/1NC/1NO+1NC

Certification:: ce

Quick Details

Protection Level:: IP40

Max. Current:: 10A

Max. Voltage:: 600V

Place of Origin:: Zhejiang, China

Brand Name:: HABOO

Model Number:: HBX22-A110R

Mounting Hole Size:: 22mm Diameter

Head shape:: Flat Round Head

LED color:: red/green/blue/yellow/white

Function:: Momentary/latching

Contact Type:: 1NO/1NC/1NO+1NC

Certification:: ce

WE HAVE ALL KINDS OF METAL SWITCH

1.Series type： indicator , no led switch,led switch,selector switch,key switch,emergency stop switch.

2.Install size: all size 6/8/12/16/19/22/25/28/30mm

3.Material : 316 stainless steel head, 304 stainless steel housing, nickel-platedcopper,chromium-plated copper with various color and so on.

4.contact type: 1NO/1NC/1NO1NC/2NO2NC

5. OEM available

6. brand customized available

22mm emergency stop switches

1. install size:22mm

2.push to lock turn to reset
3.contact: 1NO+1NC/2NO+2NC

plastic emergency stop switches

1.install size: 16mm

2.push to lock turn to reset

3.contact: 1NO+1NC/2NO+2NC

other plastic switches

1. install size:16/22/30mm

2.contact: 1NO/1NC/ 1NO+1NC/2NO+2NC
3.with led or not
4.protective level:IP65

Product Description

Factory history	15 years professional manufacturing
Install size	22mm
Head shape	flat head
Contact Structure	1NO/1NC/1NO+1NC/2NO+2NC
Waterproof	IP40
Material	plastic+meal
Maximum current voltage	10A 600V
click to see other metal switch	more metal push button switch link
click to see other plastic switch	more plastic push button switch link
