Quick Details
-
Brand Name:
-
Lanphan
-
Voltage:
-
220V/380V
-
Power:
-
1100
-
Weight:
-
170
-
Product Name:
-
Stainless Steel Crystallization Reactor
-
Material:
-
SUS304
-
Kettle Volume:
-
50L-200L
-
Collection Tank Volume:
-
50L-150L
-
Interlayer:
-
With 50mm thermal insulation layer
-
Filter:
-
20L-60L
-
Filtration Accuracy:
-
15-40um
-
Kettle Reaction Temperature:
-
-80~250℃
-
Ultimate Vacuum:
-
-0.098Mpa
-
Stirring Power:
-
0.5kw-1.1kw
Quick Details
-
Capacity:
-
50L-500L
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lanphan
-
Voltage:
-
220V/380V
-
Power:
-
1100
-
Weight:
-
170
-
Product Name:
-
Stainless Steel Crystallization Reactor
-
Material:
-
SUS304
-
Kettle Volume:
-
50L-200L
-
Collection Tank Volume:
-
50L-150L
-
Interlayer:
-
With 50mm thermal insulation layer
-
Filter:
-
20L-60L
-
Filtration Accuracy:
-
15-40um
-
Kettle Reaction Temperature:
-
-80~250℃
-
Ultimate Vacuum:
-
-0.098Mpa
-
Stirring Power:
-
0.5kw-1.1kw

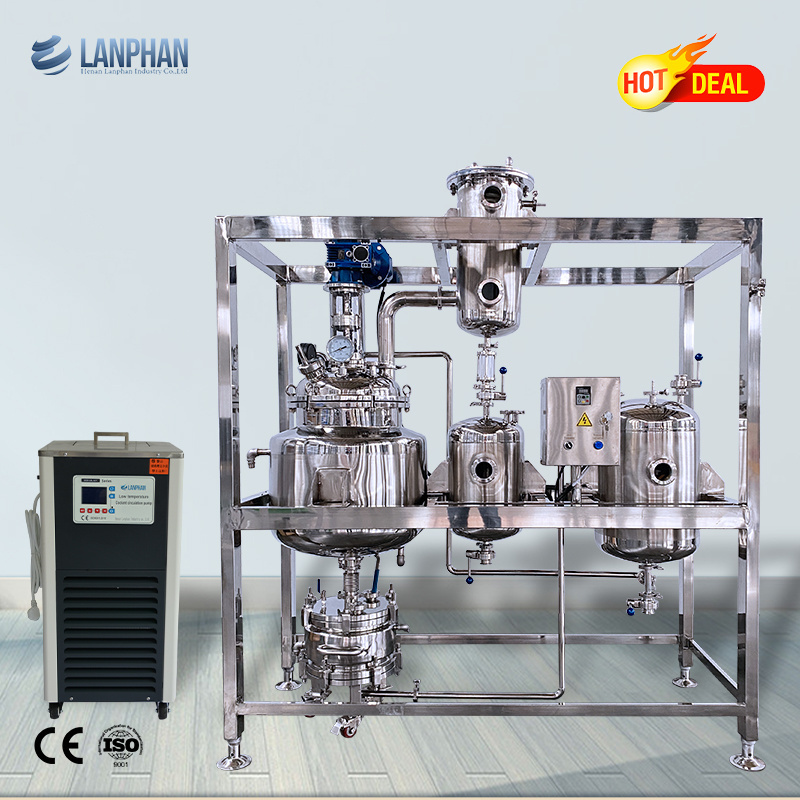

Stainless Steel Crystallization Reactor
Product Description
The stainless steel crystallization reactor is an ideal equipment for crystallization, which combines the dual functions of the reactor and the filter. The stainless steel crystallization reaction kettle is connected with a vacuum filtration device, which is often used for the crystallization and filtration . It can realize constant high or low temperature inside the kettle body.
Product Display
Product Details
Product Parameters
| Stainless Steel Crystallization Reactor | |||
| Product Model | SCR-50 | SCR-100 | SCR-200 |
| Kettle Body Material | SUS304 | ||
| Frame Material | SUS304 | ||
| Pipe Material | SUS304 | ||
| Kettle Volume | 50L | 100L | 200L |
| Recovery Tank Volume | 20L | 40L | 80L |
| Collection Tank Volume | 50L | 80L | 150L |
| Interlayer | With 50mm thermal insulation layer | ||
| Mezzanine Import and Export | 1/2" | 3/4" | 1" |
| Condenser | 0.5m2 | 1m2 | 2m2 |
| Condenser Inlet and Outlet | 1/2" | 3/4" | 3/4" |
| Filter | 20L | 30L | 60L |
| Filtration Accuracy | 15-40um | ||
| The distance from the discharge port to the ground | 200-300mm | ||
| Kettle Reaction Temperature | -80~250℃ | ||
| Ultimate Vacuum | -0.098Mpa | ||
| Sealing Structure | Machinery Seal | ||
| Stirring Speed | Frequency 0-120rpm | ||
| Stirring Power | 0.5kw | 0.75kw | 1.1kw |
| Pressure | 220V/380V | ||
