Quick Details
-
Luminous Efficacy(lm/w):
-
72
-
Product Weight（kg）:
-
0.05
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
eSann
-
Connection Mode:
-
DC Connector, DC Plug
-
Product name:
-
Led Dimmer
-
Application:
-
Single Color Led Strip
-
Certificates:
-
ROHS CE
-
Function:
-
RF Wirelss Control
-
Input Voltage:
-
DC5V-DC24V
-
Output Current:
-
6A/CH
-
Color:
-
Black White
-
Output signal:
-
Constant Voltage PWM Signal
-
Output power:
-
12V:<72W ; 24V:<144W
Quick Details
-
Warranty(Year):
-
1-Year
-
Type:
-
Remote Control
-
Max. Load Power:
-
72W(12V) ; 144W(24V)
-
Luminous Efficacy(lm/w):
-
72
-
Product Weight（kg）:
-
0.05
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
eSann
-
Connection Mode:
-
DC Connector, DC Plug
-
Product name:
-
Led Dimmer
-
Application:
-
Single Color Led Strip
-
Certificates:
-
ROHS CE
-
Function:
-
RF Wirelss Control
-
Input Voltage:
-
DC5V-DC24V
-
Output Current:
-
6A/CH
-
Color:
-
Black White
-
Output signal:
-
Constant Voltage PWM Signal
-
Output power:
-
12V:<72W ; 24V:<144W
Product Description
---The controller adopts advanced computer control chip, was controlled by the 433MHz wireless signal , and it is used to control the various LED monochromatic lamps, light source such as strip light, soft light, wall lamp, glass curtain wall lamp and so on;
---With the advantages of low price, convenient connection, easy to use and other advantages;
---According to customer requirements, can be adjusted to achieve single static level ten brightness, 8 monochromatic dynamic mode, can realize flashing breathing, dimmed, flicker, flicker and other modes, and there are 10 levels of speed, speed controller with large span, easy to carry, easy to use etc.
Specification
|
Dynamic Mode
|
8 modes
|
|
Dynamic Speed Level
|
10 levels
|
|
Lighting Brightness Level:
|
10 levels
|
|
PWM Grade
|
256 grades
|
|
Working Voltage
|
DC5～24V
|
|
Output Current Peak
|
6A
|
|
Remote Control mode:
|
RF Wireless
|
|
Remote Frequency
|
433.92MHz
|
|
Working Temperature
|
-20°C~60°C
|
|
Remote Distance
|
>15m/49ft in open area
|
Features:
*Remote Control uses RF technology and has Over 49 Feet Operating Range.
* Dimmer with 10 Levels of Brightness and Preset Dimmer at 25%, 50%, and 100% of Brightness. It also includes 8 Operating Functions ( Dynamic Light Modes ) with 10 Speed Levels to Control These Functions ( Speed of Dynamic Modes).
*Switching the light modes by pressing MODE button. And then press SPEED button, you can adjust the blink speed. The remote controller has memory function, it can remember last setting. Turn the light off or power it down, then turn it on again, it will return to the last setting.
*Lock function: Press SPEED+ and SPEED- simultaneously, the remote controller and the receiver(LED Controller) will be LOCKED, and other remote controllers will NOT able to control the light. Long press the green "LIGHT" button for three seconds, the remote control and receiver will be Unlocked, it will resume common use. When you buy multiple sets of lights, this feature allows you to control the lights separately.
*Remote Control uses RF technology and has Over 49 Feet Operating Range.
* Dimmer with 10 Levels of Brightness and Preset Dimmer at 25%, 50%, and 100% of Brightness. It also includes 8 Operating Functions ( Dynamic Light Modes ) with 10 Speed Levels to Control These Functions ( Speed of Dynamic Modes).
*Switching the light modes by pressing MODE button. And then press SPEED button, you can adjust the blink speed. The remote controller has memory function, it can remember last setting. Turn the light off or power it down, then turn it on again, it will return to the last setting.
*Lock function: Press SPEED+ and SPEED- simultaneously, the remote controller and the receiver(LED Controller) will be LOCKED, and other remote controllers will NOT able to control the light. Long press the green "LIGHT" button for three seconds, the remote control and receiver will be Unlocked, it will resume common use. When you buy multiple sets of lights, this feature allows you to control the lights separately.

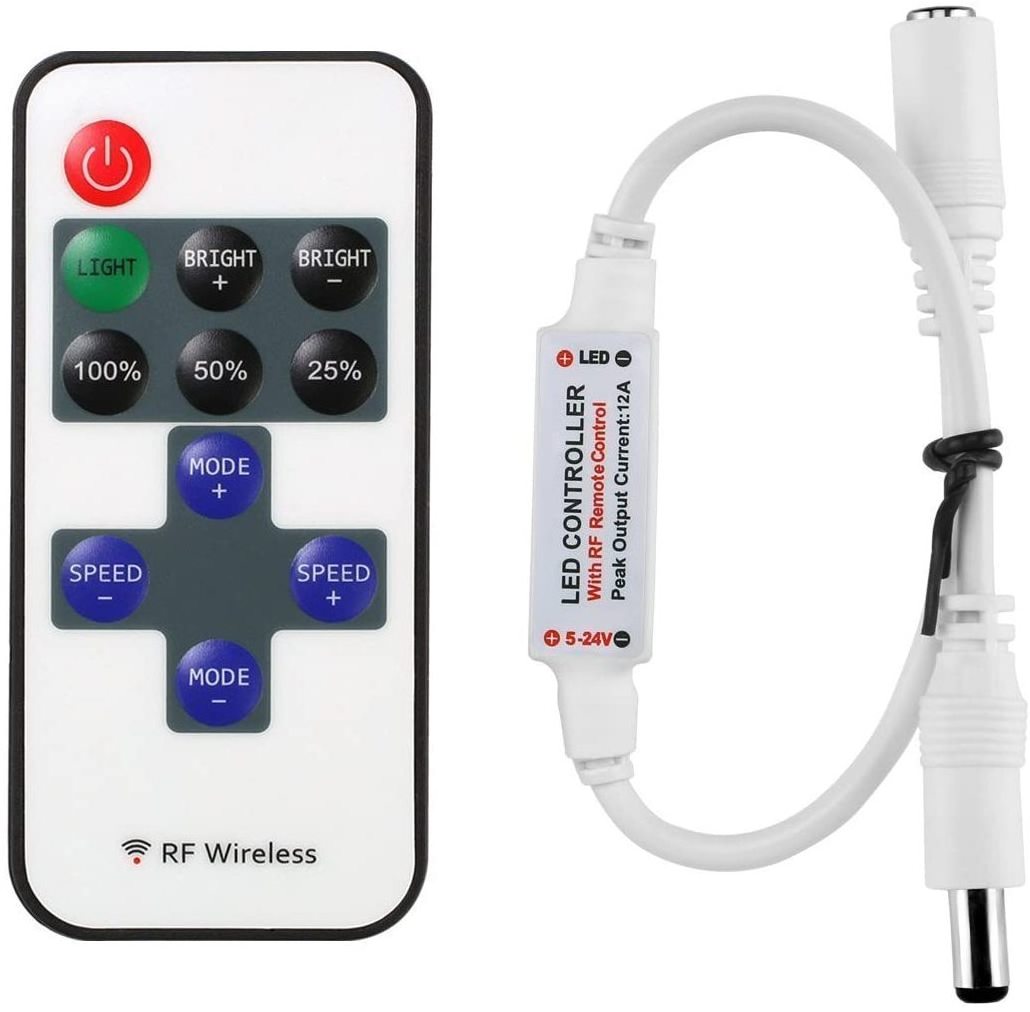

Usage
|
ON/OFF :
|
switch to turn on or to standby mode
|
|
LIGHT key
|
static mode from dynamic mode
|
|
100%/50%/25%
|
brightness adjustment.
|
|
MODE-
|
switch between dynamic modes.
|
|
MODE+
|
dynamic mode from static mode
|
|
SPEED+
|
increase speed in dynamic mode.
|
|
SPEED-
|
reduce speed in dynamic mode
|
|
BRIGHT-
|
adjust brightness.
|
|
BRIGHT+
|
up brightness
|
Installation Instructions :
---Connect your 12V DC supply to the DC jack input
---Connect your 12V DC LED Light Strips to the DC jack output,
---Remove the plastic tab from the battery compartment of the remote.
---Your controller is ready to go!
---Connect your 12V DC supply to the DC jack input
---Connect your 12V DC LED Light Strips to the DC jack output,
---Remove the plastic tab from the battery compartment of the remote.
---Your controller is ready to go!
