Quick Details
-
Brand Name:
-
AELAB
-
Model Number:
-
XRY-1A
-
Heat capacity:
-
14400 J/K~15000 J/K
-
Resolution:
-
0.001 K
-
Measurement accuracy:
-
± 60J/g
-
Repeatability:
-
≤0.2% (Grade C)
-
Pressure endurance of oxygen bomb:
-
20 MPa
-
Temperature measurement range:
-
10 ℃~35 ℃
-
Ambient temperature:
-
20±5 ℃, the fluctuation is not more than 1 ℃ during one test
-
Data saved:
-
31 pieces
-
Relative humidity:
-
≤85%
-
Power supply:
-
AC 220V±5%, 50 Hz
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
China
-
Brand Name:
-
AELAB
-
Model Number:
-
XRY-1A
-
Heat capacity:
-
14400 J/K~15000 J/K
-
Resolution:
-
0.001 K
-
Measurement accuracy:
-
± 60J/g
-
Repeatability:
-
≤0.2% (Grade C)
-
Pressure endurance of oxygen bomb:
-
20 MPa
-
Temperature measurement range:
-
10 ℃~35 ℃
-
Ambient temperature:
-
20±5 ℃, the fluctuation is not more than 1 ℃ during one test
-
Data saved:
-
31 pieces
-
Relative humidity:
-
≤85%
-
Power supply:
-
AC 220V±5%, 50 Hz
Product Description
Features & Specification
Technical Specifications:
|
Heat capacity
|
14400 J/K～15000 J/K
|
|
Resolution
|
0.001 K
|
|
Measurement accuracy
|
± 60J/g
|
|
Repeatability
|
≤0.2% (Grade C)
|
|
Pressure endurance of oxygen bomb
|
20 MPa
|
|
Temperature measurement range
|
10 ℃～35 ℃
|
|
Ambient temperature
|
20±5 ℃, the fluctuation is not more than 1 ℃ during one test
|
|
Data saved
|
31 pieces
|
|
Relative humidity
|
≤85%
|
|
Power supply
|
AC 220V±5%, 50 Hz
|
|
Dimension
|
600mm×460mm×430mm
|
|
(Note
|
Pellet press machine is optional accessory)
|
Packing List:
|
No
|
Name
|
Unit
|
Quantity
|
Remark
|
|
1
|

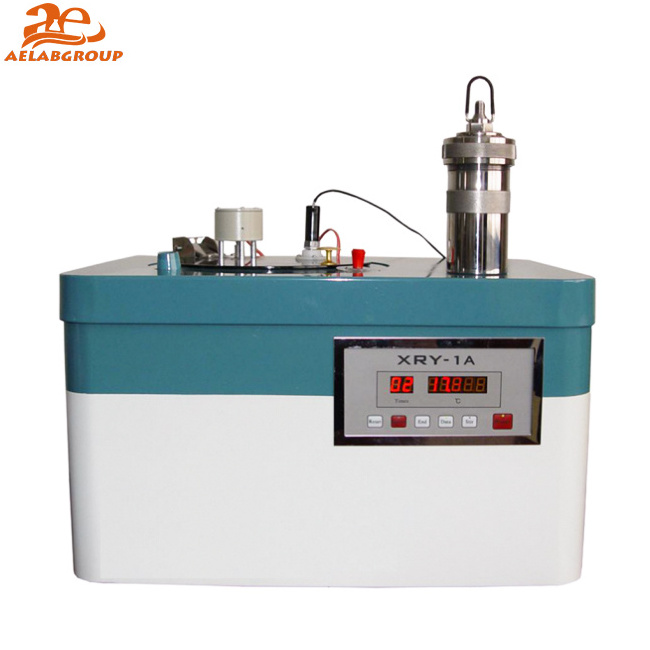

Main unit of calorimeter (including oxygen bomb, water jacket, bucket, stirrer and controller of calorimeter)
|
Set
|
1
|
|
|
2
|
Pellet press machine
|
Set
|
1
|
Optional part
|
|
3
|
Holder of bomb head
|
Set
|
1
|
|
|
4
|
Seat of oxygen bomb
|
Set
|
1
|
|
|
5
|
Temperature sensor
|
Piece
|
1
|
|
|
6
|
Thermometer (0～50 ℃)
|
Piece
|
1
|
|
|
7
|
Stopper for thermometer (silica gel stopper 2#)
|
Piece
|
1
|
|
|
8
|
Ignition wire (Φ0.1 nickel-chrome wire)
|
Meter
|
10
|
|
|
9
|
Crucible
|
Piece
|
2
|
|
|
10
|
Discharging valve
|
Piece
|
1
|
|
|
11
|
Oxygen decompression device
|
Piece
|
1
|
|
|
12
|
Oxygen tube
|
Pair
|
1
|
|
|
13
|
“O” seal ring (Φ20×2.4 mm)
|
Piece
|
5
|
|
|
14
|
“O” seal ring (Φ8×1.9 mm)
|
Piece
|
5
|
|
|
15
|
“O” seal ring (Φ6×1.9 mm)
|
Piece
|
5
|
|
|
16
|
Seal ring (large “O” ring)
|
Piece
|
2
|
|
|
17
|
Ignition connection wire
|
Piece
|
1
|
|
|
18
|
Siphon
|
Piece
|
1
|
|
|
19
|
Benzoic acid
|
Piece
|
10
|
|
|
20
|
Stopping ring for thermometer (1#)
|
Piece
|
4
|
|
|
21
|
Fuse 2 A (Φ5×20)
|
Piece
|
2
|
|
