Quick Details
-
Screen Type:
-
other
-
Combination:
-
Other
-
Place of Origin:
-
GUA
-
Brand Name:
-
HTS-Smart
-
Model Number:
-
Tk403
-
Car Make:
-
All
-
Network:
-
2G/4G Sim Card,
-
Size:
-
9.6*5.3*1.8cm
-
Long time stand by:
-
7 days
-
Certificate:
-
CE/Rosh / FCC
-
Battery:
-
350 mAh
-
Application:
-
Real time tracking
-
Waterproof:
-
IPX67
-
GPS Position Accuracy:
-
5~10m in the open sky
-
Usage:
-
Vheicle
Quick Details
-
Car Fitment:
-
OMC Tilt & Trim
-
Resolution:
-
240 x 240
-
Function:
-
Other
-
Screen Type:
-
other
-
Combination:
-
Other
-
Place of Origin:
-
GUA
-
Brand Name:
-
HTS-Smart
-
Model Number:
-
Tk403
-
Car Make:
-
All
-
Network:
-
2G/4G Sim Card,
-
Size:
-
9.6*5.3*1.8cm
-
Long time stand by:
-
7 days
-
Certificate:
-
CE/Rosh / FCC
-
Battery:
-
350 mAh
-
Application:
-
Real time tracking
-
Waterproof:
-
IPX67
-
GPS Position Accuracy:
-
5~10m in the open sky
-
Usage:
-
Vheicle
| Content | Specification |
| DIM | 9.6×5.3×1.6cm |
|
Weight |
70g |
| Network | GSM/GPRS/LTE |
| Band |
4G (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B40)
2G (1900/1800/900/850 MHz) |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
|
GPS start time |
Cold status 45s
Warm status 35s Hot status 1s |
|
Car power supply |
12 V -24V |
|
Back up battery |
Chargeable 3.7V 450mAh Li-ion battery |
| Storage Temp | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Auto track continuously
Automatic update positions of vehicle turns
GPS drift suppression
Absolute street address by SMS
Location based service (LBS)
Data logging
Data Load
Forward the third parties' message
Charges Inquiry
Alarm Function
Low battery alarm
External Power off alarm
GPS blind Spot alert
SOS
Geo-fence
Multi-area management
Movement alarm
Over speed alarm
ACC working alarm
Alarms under Arm State
1 ACC alarm
2.Shock Sensor alarm
Alarm without GSM network service
Check the Vehicle State
Reset Hardware
Sleep Mode
1 Sleep by time
2 Sleep by shock sensor
3 Deep Sleep by shock sensor
4 No sleep mode
Scheduled wake-up
Check IMEI
Set up Terminal (local) Time
TCP / UDP Switch
Configure parameters by USB
GPRS setting
Less GPRS traffic
Modes Switch between "SMS" and "GPRS"
Set up monitor center number
Cut off the Oil and Power System

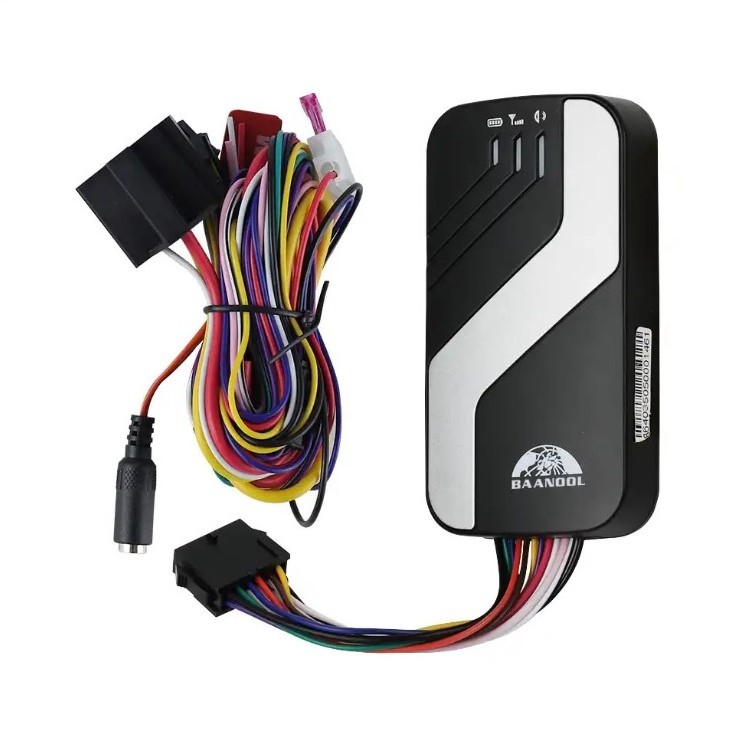

12PIN harness
Microphone
Relay
Screwer
Manual
Giftbox
Remote controller ( only for model 403B)
Optional:
MicroSD
Alarm siren(big or small both ok)
Fuel sensor
