Quick Details
-
Panel Material:
-
Stainless Steel
-
Color:
-
Satin Antique Brass
-
Certificate:
-
CE RoHS
-
Product name:
-
Gang Switch Socket
-
Keyword:
-
Electrical Switch
-
Market:
-
Euro Mid-east Africa Asia
-
Guarantee:
-
10 years
-
Inside Material:
-
Phosphor Copper Silver Alloy
-
Package:
-
10pcs/color Box. 100pcs/ctn
-
Function:
-
Control Light
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
220V-250V
-
Place of Origin:
-
China
-
Panel Material:
-
Stainless Steel
-
Color:
-
Satin Antique Brass
-
Certificate:
-
CE RoHS
-
Product name:
-
Gang Switch Socket
-
Keyword:
-
Electrical Switch
-
Market:
-
Euro Mid-east Africa Asia
-
Guarantee:
-
10 years
-
Inside Material:
-
Phosphor Copper Silver Alloy
-
Package:
-
10pcs/color Box. 100pcs/ctn
-
Function:
-
Control Light
https://cnshinelite.en.alibaba.com

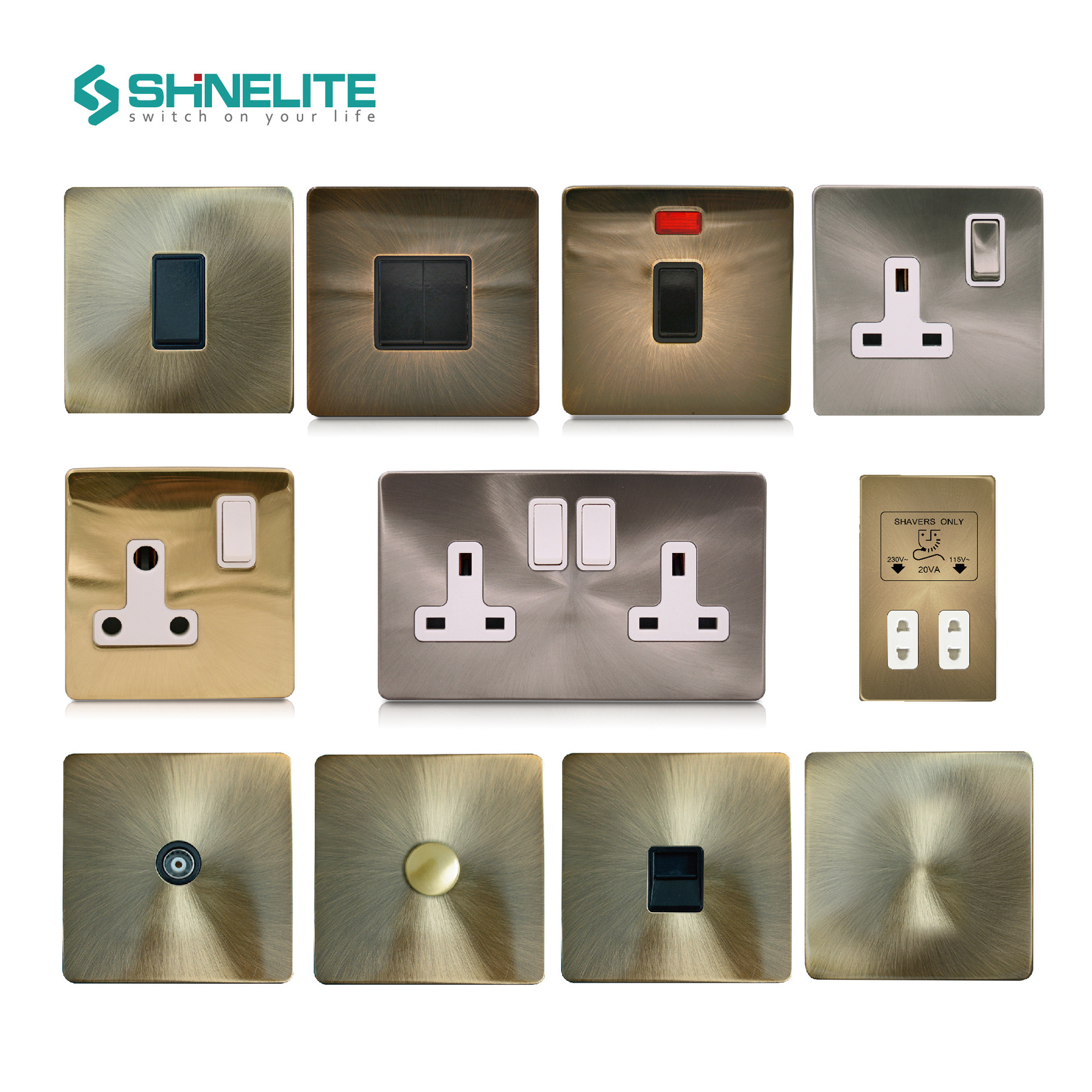

Screwless 10A 1 Gang Electrical Switch Modern UK Light Switch
The switch contacts are made of high quality silver alloy material,which have a good performance against electric arc and melt weld.The on-off operations exceed40000 times.
The socket are made of phosphor bronze, which have the character of good electrical conductivity and lasting elasticity.
|
Outline size: |
86x86mm |
|
Installation size: |
60 |
|
Material: |
Stainless Steel |
|
Copper: |
QSn5.6-0.1 H62 Hpb59 |
Switch Specification
|
Lifetime |
≥40000 |
|
Heat-resistant |
100 • C / 1h |
|
Insulation Resistance |
≥5M Ω |
|
Damp Resistance |
48h > 5M Ω |
|
Temperature Raise |
≤ 45K |
|
Earthing Provision |
≤0.05M Ω |
Socket Specification
|
Lifetime |
≥5000 |
|
Heat-resistant |
100 • C / 1h |
|
Insulation Resistance |
≥5M Ω |
|
Damp Resistance |
48h > 5M Ω |
|
Temperature Raise |
≤ 45K |
|
Earthing Provision |
≤0.05M Ω |
|
Electric Strength |
2000 V ~1 min |
