Quick Details
-
Core Components:
-
TWIST LOCK
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GBM
-
After Warranty Service:
-
Spare parts
-
After-sales Service:
-
Online and site support
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
2000
-
Marketing Type:
-
Regular product GBM
-
Core Components:
-
TWIST LOCK
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GBM
-
After Warranty Service:
-
Spare parts
-
After-sales Service:
-
Online and site support

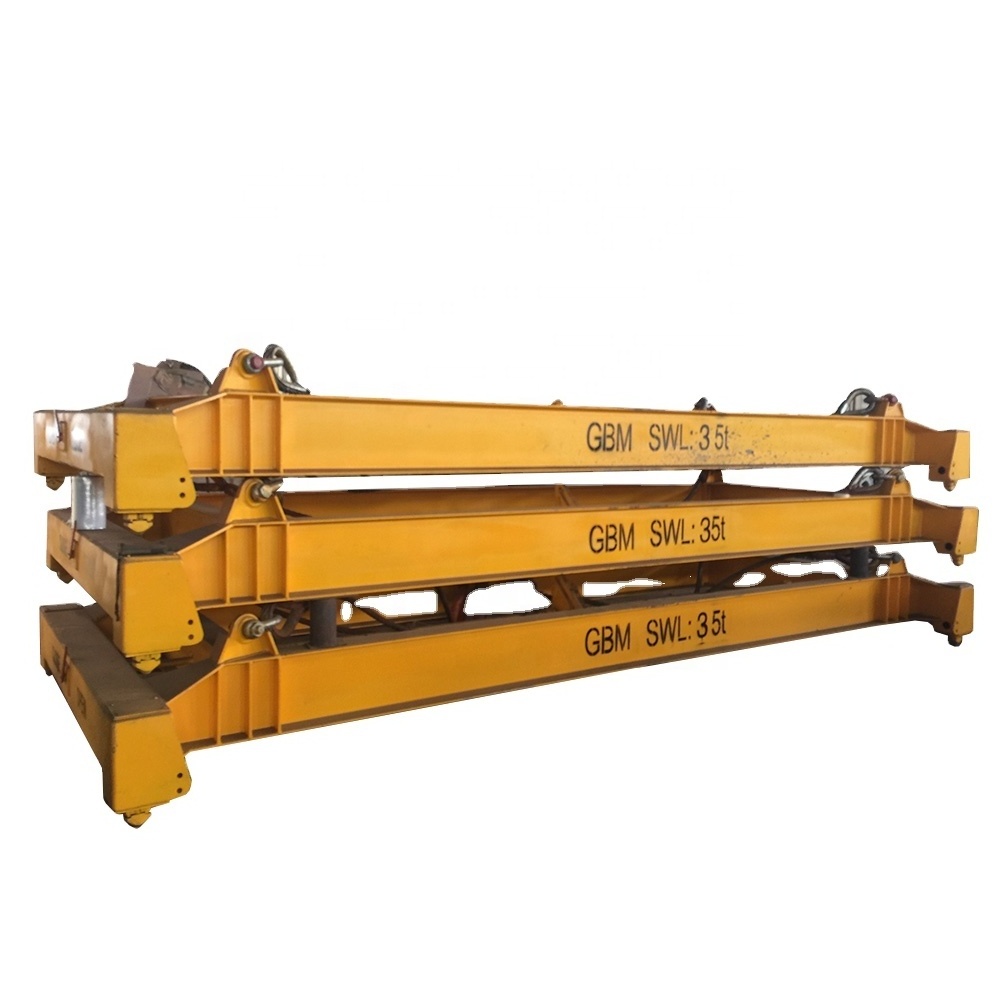

Semi-automatic container spreader is fixed to the hooks of gantry, bridge and portal cranes. Twist lock control is carried out mechanically by means of wire rope pulling. Hooking/unhooking is carried out without help of crane workers. Simplicity and convenience of spreader installation allow converting from hook crane into container crane in a short time. There is no necessity to arrange power supply for the spreader and to update the crane control circuit.
|
Item |
20’ |
40’ |
|
SWL |
≈ 30 t |
≈ 40 t |
|
Dead Weight |
≈1.8 t |
≈ 3.5t |
|
Distance between lock centers(length) |
≈5853 mm |
≈ 11985 mm |
|
Distance between lock centers(width) |
≈2260 mm |
≈ 2260 mm |
|
Overall Length |
≈6058 mm |
≈ 12188 mm |
|
Overall Width |
≈2610 mm |
≈ 2610 mm |
|
Frame Height |
≈636 mm |
≈ 731 mm |
|
Dia. of pressed wire rope slings |
32 mm |
36 mm |
|
Length of pressed wire rope slings |
3.5m per piece (4 pieces for each set) |
8.5m per piece (4 pieces for each set) |
|
Steel Frame |
Q345B |
Q345B |
|
ISO Standard Fixed Twist Lock |
42CrMo
|
42CrMo
|
|
Twist Lock Device |
Finish the Twist locks action via semi-automatic Elastic lasso |
Finish the Twist locks action via semi-automatic Elastic lasso |
