Quick Details
-
Material:
-
abs Nylon
-
Color:
-
red, black, blue
-
Application:
-
to lock out minature circuit breaker lockout
-
Usage:
-
locked together with padlocks
-
Warranty:
-
1 Years
-
Feature:
-
Durable, Light weight
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LOCKEY
-
Product Name:
-
Circuit Breaker Lockout
-
Material:
-
abs Nylon
-
Color:
-
red, black, blue
-
Application:
-
to lock out minature circuit breaker lockout
-
Usage:
-
locked together with padlocks
-
Warranty:
-
1 Years
-
Feature:
-
Durable, Light weight

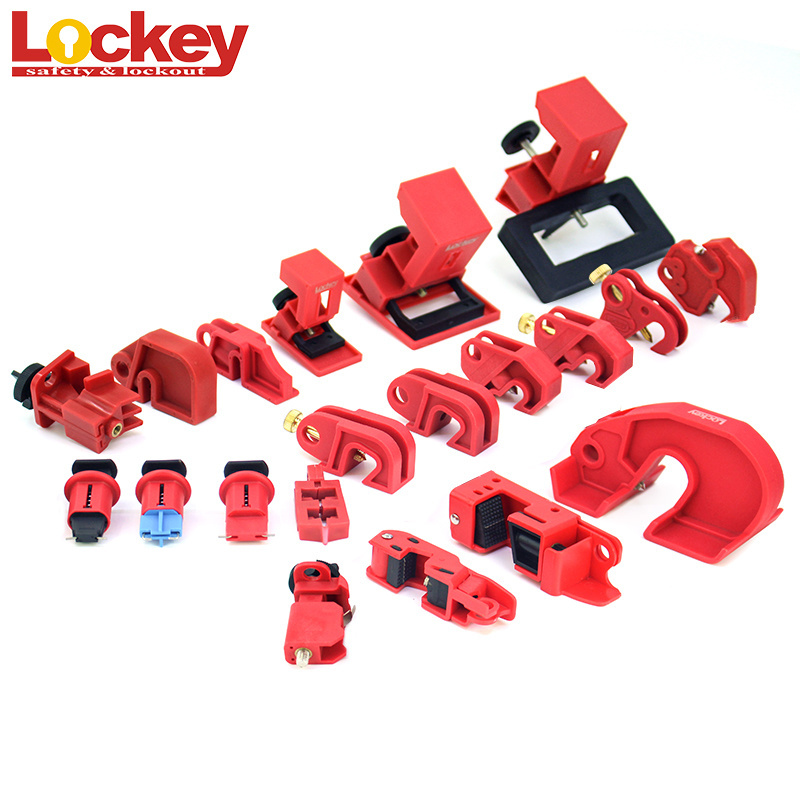

Moulded C ase Circuit Breaker Lockout
a) Made from engineering plastic strengthened nylon PA.
b) Lock out different types of circuit breakers.
c) Fits on breaker toggles
|
Part NO. |
Description |
|
|
CBL01-1 |
Size:45mm×25mm×10mm,max clamping 10mm |
using screw driver |
|
CBL0 2 -1 |
Size:51mm×25mm×23mm,max clamping 10mm |
|
|
CBL01- 2 |
Size:45mm×25mm×10mm,max clamping 10mm |
without tools |
|
CBL0 2 - 2 |
Size: 51 mm×25mm× 23 mm , max clamping 10mm |
Miniature Circuit Breaker Lockout
a) Made of engineering plastic strengthened nylon PA.
b) Applied for most existing types of European and Asian circuit breakers.
c) Suggested to be equipped together with a padlock for added safety.
d) Easily installed, no tools needed.
e) Can take padlocks with a shackle diameter up to 9/32" (7.5mm).
f) Available for single and multi-pole breakers.
|
Part No. |
Description |
|
POS |
POS (Pin Out Standard), 2 holes required, fit up to 60Amp |
|
PIS |
PIS (Pin In Standard), 2 holes required, fit up to 60Amp |
|
POW |
POW (Pin Out Wide), 2 holes required, fit up to 60Amp |
|
TBLO |
TBLO (Tie Bar Lockout), no hole in breakers required |
Clamp-On Circuit Breaker Lockout
a) Made from rugged polypropylene and impact modified nylon.
b) Can be used with lockout cleats in the bottom for hard locking long sliding switches and switches with large angular rolation.
c) Can be easily operated without any tools.
d) Accepts padlock shackles up to 9/32’’ (7.5mm) in diameter.
|
Part No. |
Description |
|
CBL11 |
For 120-277V breaker lockouts,handle width≤16.5mm |
|
CBL12 |
For 480-600V breaker lockouts,handle width≤41mm |
|
CBL13 |
For large 480-600V breaker lockouts,handle width≤70mm |
Grip Tight Circuit Breaker Lockout
a) Made from rugged ABS.
b) Fit wide or tall breaker toggles typically found on hi-voltage/hi-amperage breakers.
c) Can be easily operated without any tools.
d) Hole diameter: 10mm.
|
Part No. |
Description |
|
CBL31 |
Max clamping 20mm |
|
CBL32 |
Max clamping 15mm |
Packing Details:
We have regular packing and can do as you request.
Shipping Methods:
By Air Or By Sea (FOB ports:Shanghai /Ningbo),By Express (EMS,FEDEX,UPS,TNT,DHL)
Payment term:
normally T/T, Paypal, Western union and Alibaba trade assurance, etc.
1.
Q: Could I put my own logo on the products?
A: Sure, your logo can be put on every lock body, either by laser, or by moulds.
2.
Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.
3.
Q: Can I have some samples before formal order?
A: Yes, we can send you some free samples for your test before your order.
4.
Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released. For customized products, it takes longer.
5.
Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pls contact us freely, we'll help solving the problems within 24 hours.
6.
Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.
7
. Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers, we'll guanartee monthly payment after good cooperationship.
8.
Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes, we have a research & development dept., we're willing to develop everything that you demand in safety lockout industries.
9.
Q: Do you have any office in other countries?
A: Currently we don't have, but we're discussing with some good customers. If you're willing to be our agent in any countries, pls contact us freely.
