Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BMP-107B
-
Material:
-
/
-
Dimension:
-
460*350*250
-
Magnification:
-
4x,10x,40x,100x
-
Model:
-
BMP-107B
-
Viewing Head:
-
Sliding Binocular Head at 45°, 360° Rotatable
-
Eyepiece:
-
Eyepiece WF10x/ 18
-
Objective:
-
Strain free Achromatic Objective 4x,10x,40x
-
Nosepiece:
-
Toward Quadruple Nosepiece, Center Adjustable
-
Analyzer:
-
Rotatable Analyzer with Gradation 0°~90°
-
Bertrand Lens:
-
Bertrand Lens, Sliding in/ out of Optical Path
-
Illumination:
-
6V/ 20W Halogen Lamp, Brightness Adjustable
-
Power Supply:
-
AC110/220V±10%, 50/60Hz
-
Package Size:
-
327*273*425mm
Quick Details
-
Warranty:
-
1 year
-
Theory:
-
Biological Microscope
-
Drawtube:
-
Trinocular
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BMP-107B
-
Material:
-
/
-
Dimension:
-
460*350*250
-
Magnification:
-
4x,10x,40x,100x
-
Model:
-
BMP-107B
-
Viewing Head:
-
Sliding Binocular Head at 45°, 360° Rotatable
-
Eyepiece:
-
Eyepiece WF10x/ 18
-
Objective:
-
Strain free Achromatic Objective 4x,10x,40x
-
Nosepiece:
-
Toward Quadruple Nosepiece, Center Adjustable
-
Analyzer:
-
Rotatable Analyzer with Gradation 0°~90°
-
Bertrand Lens:
-
Bertrand Lens, Sliding in/ out of Optical Path
-
Illumination:
-
6V/ 20W Halogen Lamp, Brightness Adjustable
-
Power Supply:
-
AC110/220V±10%, 50/60Hz
-
Package Size:
-
327*273*425mm
BIOBASE

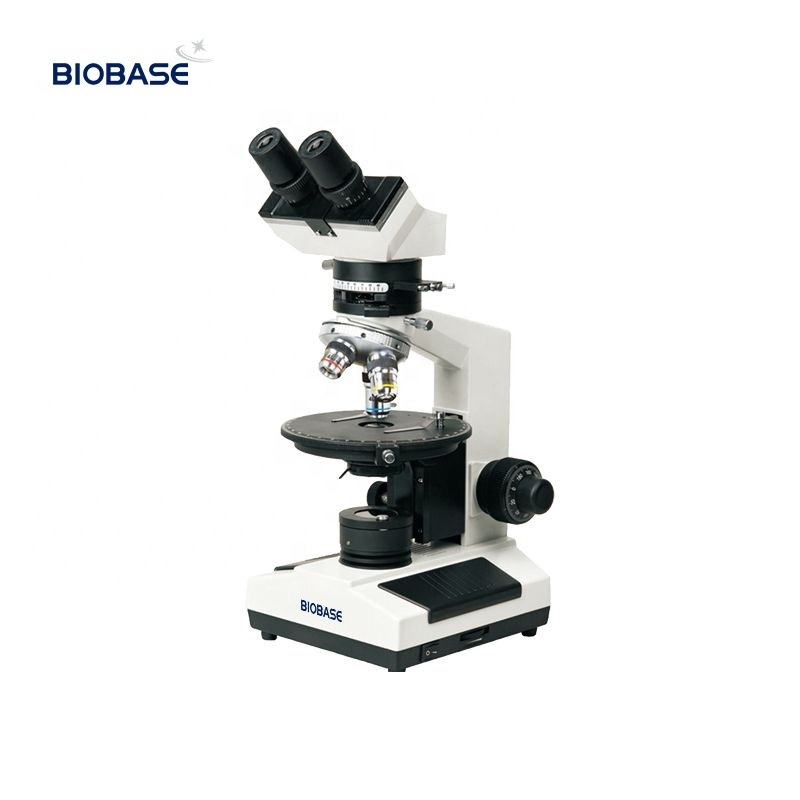

Polarizing Biological Microscope
Model:
BMP-107B
Products Description
|
Model
|
|
BMP-107B
|
BMP-107T
|
|
|
Viewing Head
|
Sliding Binocular Head at 45°, 360° Rotatable
|
√
|
/
|
|
|
|
Sliding Trinocular Head at 45°, 360°Rotatable
|
/
|
√
|
|
|
Eyepiece
|
Eyepiece WF10×/ 18 with Scale of Crosshair
|
√
|
√
|
|
|
|
Eyepiece WF10×/ 18
|
√
|
√
|
|
|
Objective
|
Strain free Achromatic Objective 4×、10×、40×
|
√
|
√
|
|
|
Nosepiece
|
Toward Quadruple Nosepiece, Center Adjustable
|
√
|
√
|
|
|
Analyzer
|
Rotatable Analyzer with Gradation 0°~90°
|
√
|
√
|
|
|
Bertrand Lens
|
Bertrand Lens, Sliding in/ out of Optical Path
|
√
|
√
|
|
|
Optical Compensator
|
λ Slip（first class red）
|
√
|
√
|
|
|
|
1/ 4λ Slip
|
√
|
√
|
|
|
|
Quartz wedge
|
√
|
√
|
|
|
Revolving
Round Stage |
Diameter Φ160mm, Graduated in1° Increments, Minimum Resolution 6’ when using Vernier Scale
|
√
|
√
|
|
|
Condenser
|
Abbe Condenser with Iris Diaphragm & Filter
|
√
|
√
|
|
|
Focusing
|
Coaxial Coarse & Fine Adjustment, Range 28mm, Fine Division 0.002mm
|
√
|
√
|
|
|
Polarizer
|
Sliding in/ out of Optical Path, Located on the Top of Collector
|
√
|
√
|
|
|
Illumination
|
6V/ 20W Halogen Lamp, Brightness Adjustable
|
√
|
√
|
|
|
Power Supply
|
AC110/220V±10%, 50/60Hz
|
√
|
√
|
|
|
Package Size
|
327*273*425mm
|
√
|
√
|
|
|
Gross Weight
|
7.5kg
|
√
|
√
|
|
