- Product Details
- {{item.text}}
Quick Details
-
Customized support:
-
NO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SINGI
-
Model Number:
-
GNW56 series
-
Mechanical Life:
-
100,000 times
-
Frame:
-
PC
-
Color:
-
Champagne
-
keyword:
-
outlet Stereo socket
-
Application:
-
Residential
-
Certificate:
-
CCC ISO9001
-
Structure:
-
Stee
-
KEYWORDS:
-
Wall Switch
Quick Details
-
Max. Current:
-
10/16/25A
-
Max. Voltage:
-
250V
-
Network:
-
YES
-
Customized support:
-
NO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SINGI
-
Model Number:
-
GNW56 series
-
Mechanical Life:
-
100,000 times
-
Frame:
-
PC
-
Color:
-
Champagne
-
keyword:
-
outlet Stereo socket
-
Application:
-
Residential
-
Certificate:
-
CCC ISO9001
-
Structure:
-
Stee
-
KEYWORDS:
-
Wall Switch

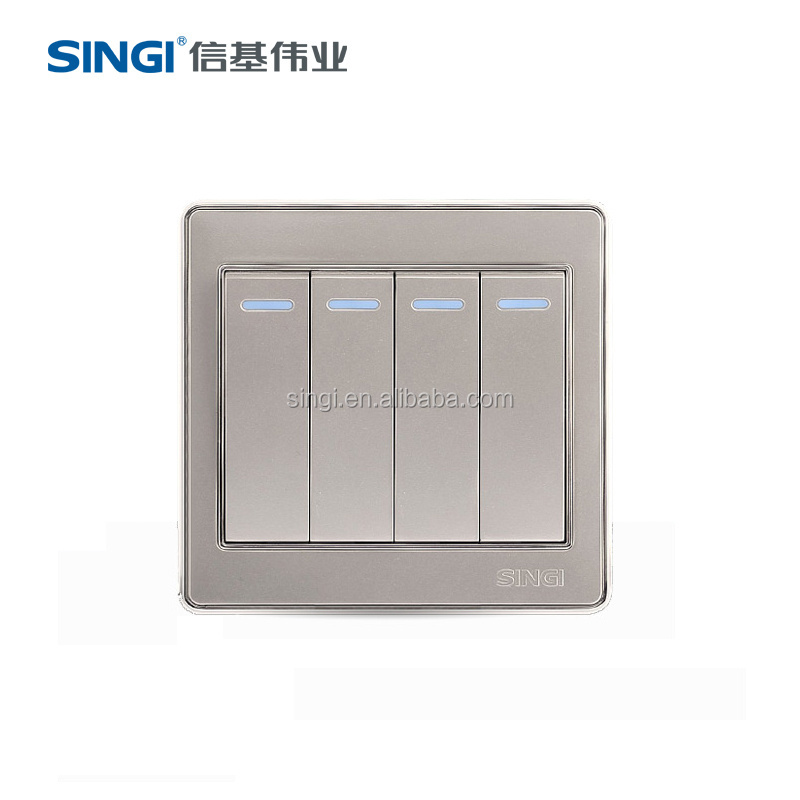

American Standard Wall Switch piano type switch outdoor dimmer switch
Product Details:
Size: 86mm(L)* 86mm(H)
Color:White,champagne
Copper Material:Phosphor Bronze
Plastic Material:PC Inflaming Retardin g Material
Rated Voltage:110V-250VAC/50/60Hz
Rated Current:10 AMP
Export Markets: Europe market, eg: German , France, Spain, Belgium, etc
Specification:
| GNW56BK12 | one gang two way switch 16A |
| GNW56BK13 | one gang multi-way switch 16A |
| GNW56BK14 | one gang door bell switch |
| GNW56BK11-2 | two gang one way switch 16A |
| GNW56BK12-2 | two gang two way switch 16A |
| GNW56BK11-3 | three gang one way switch 16A |
| GNW56BK12-3 | three gang two way switch 16A |
| GNW56BK11-4 | four gang one way switch 16A |
| GNW56BK12-4 | four gang two way switch 16A |
| GNW56BK23 | three pin socket 16A |
| GNW56BK23/11 |
one gang one way switch and three pin socket 16A |
| GNW56BK23/12 |
one gang double way switch and three pin socket 16A |
| GNW56BKL23 | two pin two and three pin socket |
| GNW56BKL23/11 |
one gang switch and two pin two and three pin socket |
| GNW56BKL23/12 |
one gang double way switch and two pin two and three |
| GNW56BL23/21 | two pin two with three pin socket |
| GNW56BK41 | one gang tv socket |
| GNW56BK41-2 | two gang tv socket |
| GNW56BK42 | one gang telephone socket |
| GNW56B42-2 | two gang telephone socket |
| GNW56BK43 | one gang computer socket |
| GNW56BK43-2 | two gang computet socket |
| GNW56BK42/43 |
one gang telephone and one gang computer socket |
| GNW56BK41/42 |
one gang tv and one telephone socket |
| GNW56BK41/43 |
one gang tv and one gang computer socket |
| GNW56BK41B |
tv one plug-in one branch shield socket |
| GNW56BK41C |
tv one plug-in two branch shield socket |
| GNW56BK51 | 200Wdimmer switch |
| GNW56BK52 | 200Wspeed adjust switch |
| GNW56BK53 | 60Wtouch time-delay switch |
| GNW56BK54 |
60Waudio-light control time-delay switch |
| GNW56BK55 | body infrared ray sensitive switch |
| GNW56BK56-2 | two gang acoustics socket |
| GNW56BK56-4 |
four gang acoustics socket |
| GNW56BK57 |
60Waudio-light control timedelay switch(with fire control) |
| GNW56BK71 |
blank cover
|
Product feature:
1,Pass the CE, ROHS, FCC certification;
2,PC panel adopt LG Engineering inflaming retarding material with UL94V0 fire-protection rating;
3‚ Copper spring strip of AC Inlet adopt long-range elasticity and environmental protection phosphor bronze(Thickness: 0.6~0.7mm, Width: 6.3mm), no any distortion after 40, 0000 times plug and unplug test, normal use 12 years no any looseness
Lifetime 400,000 times
Color white, silver, black or customized.
Compatible plugs : Europe market, such as: German, France, Spain, Belgium, etc
Application Commercial, Industrial, Hospital, Residential/General Purpose
