Quick Details
-
Model Number:
-
KAN-B2-SW25P-41-R
-
Max. Current:
-
13A
-
Mechanical Life:
-
10000cycles
-
Electrical Life ( 1054):
-
6,000 cycles
-
Electrical Life (IEC 61058):
-
10,000 times cycles
-
Contact Form:
-
SPST
-
Material Body:
-
Thermosetting plastic
-
Contact material:
-
pure silver
-
Packing:
-
sealed/no sealed
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SWITECH
-
Model Number:
-
KAN-B2-SW25P-41-R
-
Max. Current:
-
13A
-
Mechanical Life:
-
10000cycles
-
Electrical Life ( 1054):
-
6,000 cycles
-
Electrical Life (IEC 61058):
-
10,000 times cycles
-
Contact Form:
-
SPST
-
Material Body:
-
Thermosetting plastic
-
Contact material:
-
pure silver
-
Packing:
-
sealed/no sealed
-
Certification:
-
CE
Products Description
|
Specification & Drawing
|
|
|
|
|||
|
Name
|

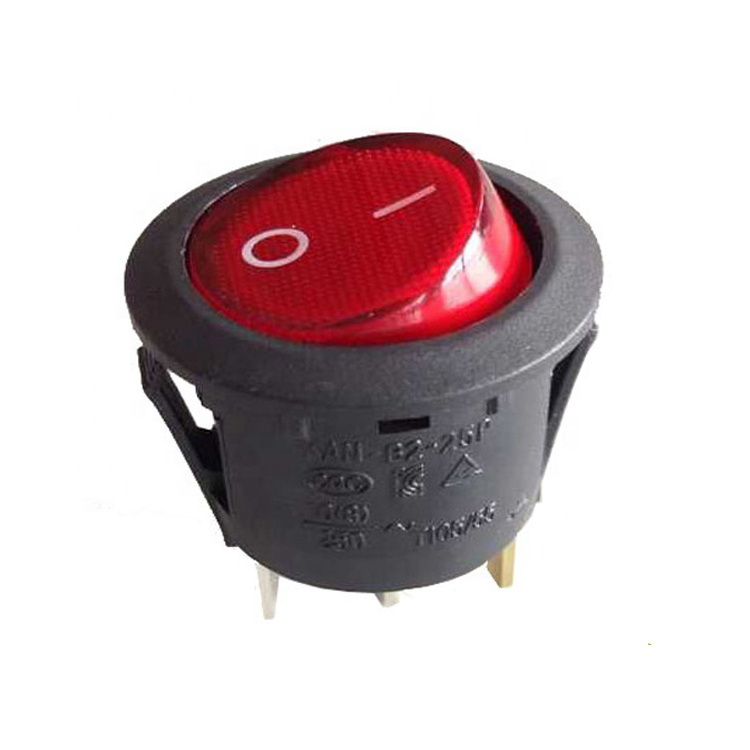

13A SPST Round Illuminated Rocker Switch with 125VAC lamp indicate
|
|
|
|||
|
Model
|
KAN-B2-SW25P-41-R
|
|
|
|||
|
Rating
|
12A 24VDC，6.5A250VAC 13A125VAC
|
|
|
|||
|
Contact resistance
|
30mΩ MAX
|
|
|
|||
|
Insulation resistance
|
100MΩ MIN
|
|
|
|||
|
peration force
|
4N±2N
|
|
|
|||
|
Operation life
|
6,000cycles
|
|
|
|||
|
Function
|
ON-OFF
|
|
|
|||
|
Terminal form
|
#187 quick-connect Terminal
|
|
|
|||
|
Solder ability
|
245±5℃for2±0.5s
|
|
|
|||
|
Operation temperature
|
-25℃ + 105℃
|
|
|
|||
|
Storage temperature
|
-25℃ + 105℃
|
|
|
|||
|
Material & Color
|
|
|
|
HOUSE
|
NYLON
|
|
|
SHAFT
|
NYLON
|
|
|
BUTTON
|
NYLON
|
|
|
TERMINAL
|
BRASS STRIP
|
|
|
MOVING TERMINAL
|
BRONZE STRIP
|
|
|
SUPPORT
|
COPPER STRIP
|
|
|
SPRING
|
STAINLESS STEEL WIRE
|
|
|
TOP COLUMN
|
BRASS STRIP
|
|
|
CONTACT
|
AgCdO / COPPER
|
|
|
LED
|
RED
|
|
