Quick Details
-
Model Number:
-
BL-C2001D
-
Feature:
-
Fail-safe type (Power to lock)
-
Certification:
-
CE
Quick Details
-
Special Features:
-
Electric Dopbolt Lock
-
Place of Origin:
-
China
-
Brand Name:
-
S4A
-
Model Number:
-
BL-C2001D
-
Feature:
-
Fail-safe type (Power to lock)
-
Certification:
-
CE
| Product Parameter | Parameter Description |
| S4A Model | BL-C2001D |
| Product Name |

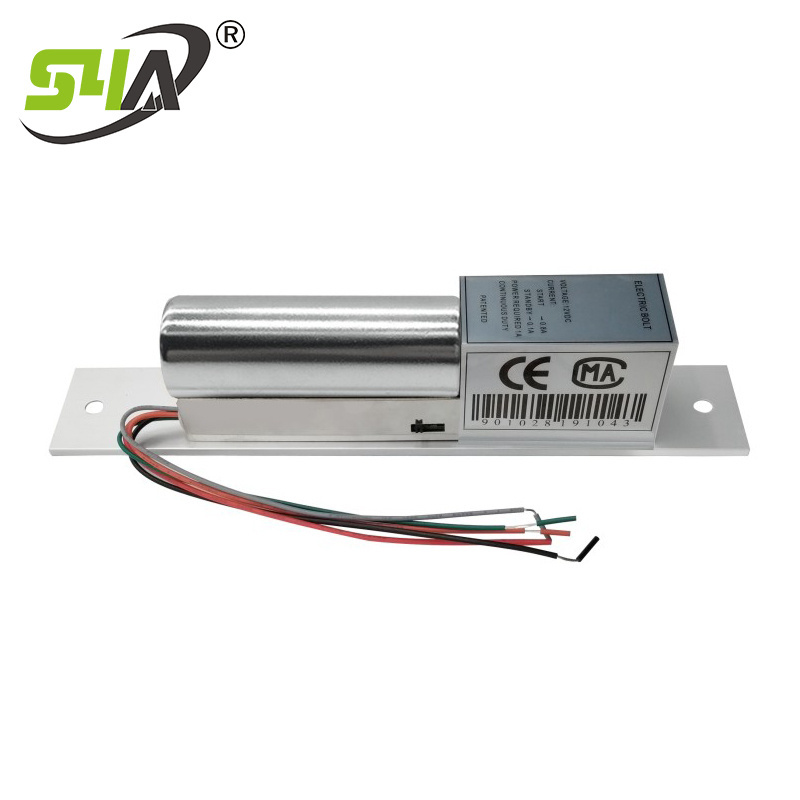

5 Line Electric Bolt Lock
With door state detection output point and Timer |
| Feature | Fail-safe type (Power to lock) |
| Face Plate |
default: 200Lx34WX42H(mm)
option: 205Lx34Wx42H(mm) |
| Voltage | DC12V |
| Start Current | 750mA |
| Standby Current | 100mA |
| Solid Bolt | polishing housing, 1000Kg Holding Force |
| Signal Output | Door status Output,NO/COM |
| Timer | 0/3/6/9 seconds available to set |
| Suitable For | Wooden Door,Glass Door,Metal Door,Glass Door |
| Surface Temp | Low Temperature |
| Induction Distance | 8mm |
| Operating temp | -10~+55℃(14~131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Special Designed | Tested to 500000 cycles |
| Face place material | High Aluminum |
| Unit Weight | 0.55KG |
| Standard Package | 40PCS |
| Carton Weight | 25.3KG |
| Carton Size | 43*24*34.5 (cm) |
