Quick Details
-
Voltage:
-
380V
-
Power:
-
220x2 kW
-
Dimension(L*W*H):
-
5100x2790x3320 mm
-
Weight:
-
27500 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Machines classification:
-
Mining Crusher Machine
-
Max. feeding size:
-
Max.50 mm
-
Discharging Opening:
-
0.075-4.75 mm
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
Spare parts supply:
-
Provided
-
Color:
-
Customized
-
Name:
-
Vertical shaft impact sand making machine
-
Model:
-
VSI-1145
-
After sale Service:
-
1 year
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CFTC
-
Voltage:
-
380V
-
Power:
-
220x2 kW
-
Dimension(L*W*H):
-
5100x2790x3320 mm
-
Weight:
-
27500 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Machines classification:
-
Mining Crusher Machine
-
Max. feeding size:
-
Max.50 mm
-
Discharging Opening:
-
0.075-4.75 mm
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
Spare parts supply:
-
Provided
-
Color:
-
Customized
-
Name:
-
Vertical shaft impact sand making machine
-
Model:
-
VSI-1145
-
After sale Service:
-
1 year
Product Description

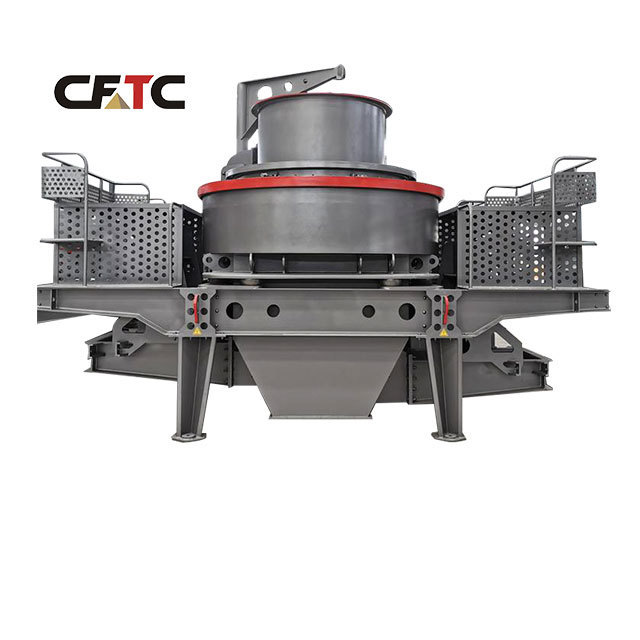

Vertical shaft impact crusher
is widely used in crushing and reshaping of rock and artificial sand making. It is suitable for crushing of fragile materials below level 9 of Moh’s hardness, such as pebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone
Details Images
Specification
Model
|
|
VSI7611
|
VSI8518
|
VSI9526
|
VSI1140
|
VSI1145
|
|
Capacity
|
Cascade Feeding
|
120-180
|
200-260
|
300-380
|
450-520
|
500-640
|
|
Max. Feeding size
(mm)
|
Full Central Feeding
|
60-90
|
100-130
|
150-190
|
225-260
|
250-360
|
|
|
Soft Material
|
35
|
40
|
45
|
50
|
50
|
|
|
Hard Material
|
30
|
35
|
40
|
45
|
45
|
|
Rotation Speed (r/min)
|
|
1700-1890
|
1520-1690
|
1360-1510
|
1180-1310
|
1100-1310
|
|
Model of Motor
|
|
Y250M-4
|
Y280M-4
|
Y315M-4
|
Y315L2-4
|
Y315L2-4
|
|
Double Motor Power
|
|
55*2
|
90*2
|
132*2
|
200*2
|
220*2
|
|
Dimension
|
|
3700x2150x2100
|
4140x2280x2425
|
4560x2447x2778
|
5000x2700x3300
|
5100x2790x3320
|
|
|
|
|
|
|
|
|
|
Weight (t)
|
|
11.8
|
14.5
|
16
|
25.6
|
27.5
|
Packing & Delivery
Customer site
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers.
Welcome your order!
