Quick Details
-
Brand Name:
-
EBASEE
-
Model Number:
-
CA10
-
Max. Current:
-
63
-
Mechanical Life:
-
200000
-
Product Name:
-
Rotary Selector Switch
-
Rated Current:
-
10/16/20/25/32/40/50/63/80/100A
-
Rated Voltage:
-
110V-690V
-
POLE:
-
1~4 Poles
-
Color:
-
Black
-
Function:
-
Electronic Control System
-
Material:
-
Silver Contact
-
Electrical life:
-
200000 Times
-
Service:
-
OEM ODM
-
Sample:
-
available
-
Certification:
-
CB
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
660
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
EBASEE
-
Model Number:
-
CA10
-
Max. Current:
-
63
-
Mechanical Life:
-
200000
-
Product Name:
-
Rotary Selector Switch
-
Rated Current:
-
10/16/20/25/32/40/50/63/80/100A
-
Rated Voltage:
-
110V-690V
-
POLE:
-
1~4 Poles
-
Color:
-
Black
-
Function:
-
Electronic Control System
-
Material:
-
Silver Contact
-
Electrical life:
-
200000 Times
-
Service:
-
OEM ODM
-
Sample:
-
available
-
Certification:
-
CB

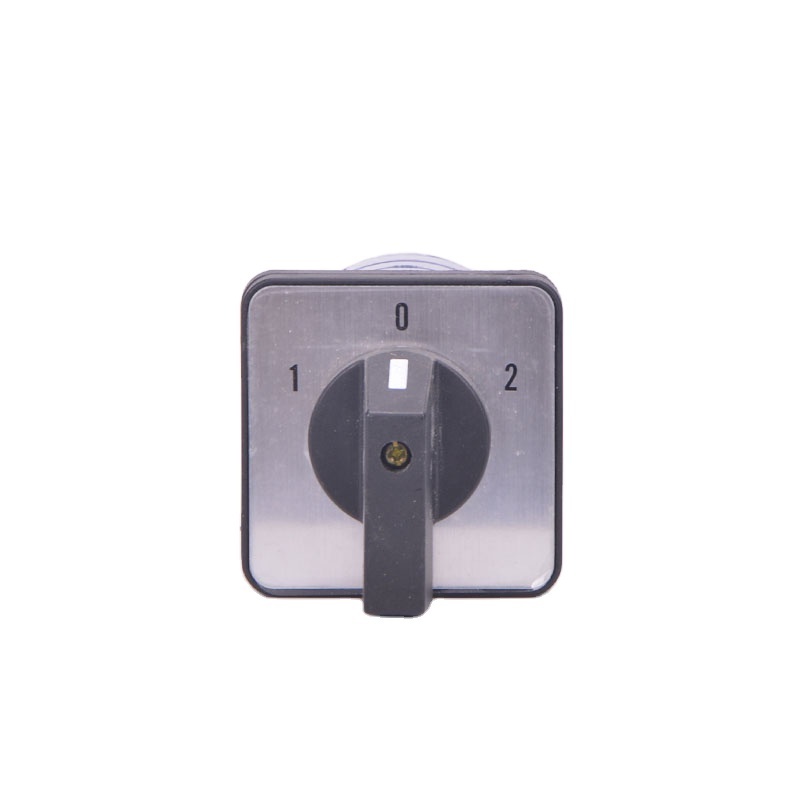

Universal Changeover Switch
Function
CA10 series control and load switches offer a solution for most cam switch operations. Different types can be used as control switches, switches to be installed in equipments and switches for motor control according to IEC60947-3.
|
Model Name |
|
CA10 Universal changeover switch |
|
Standard |
|
IEC60947-3 |
|
Poles |
|
2P 3P 4P |
|
Rated power |
|
3-phase AC motor |
|
Rated current In(A) |
|
20~160Amp |
|
Rated voltage Un(V) |
|
120V 240V 440V 660V |
|
Rotation angle code |
|
30° 45 ° 60 ° 90 ° |
Classifications
n Classified by utilization,control and load switch,motor switch,control switch
n Classified by operation limited movement spring return,limited movement with spring return
n Classified by contact system switch with limited movement has 1-12poles(63A only have 8poles), switch with spring return has 1~3poles,motor control switch has 1-6poles
n Classified by rotation angle: 30° 45 ° 60 ° 90 ° etc
n Classified by panel square panel,rectangular panel, circular panel (only 20A)
n Classified by handle R type, I type, F type, B type, S type, L type, P type, K type.
Applicable Working
|
Ambient temperature |
|
-5~+40℃ , the average value cannot exceed to +35 ℃ within 24h |
|
Altitude |
|
≤ 2,000m |
|
Relative humidity |
|
≤ 95% |
|
Pollution level |
|
II. |
|
Installation location |
|
Mount on the place where has no obvious vibration or impact |
