Quick Details
-
Place of Origin:
-
Fujian, China
-
Dimension(Long * Breadth * High):
-
5910*2268*3760 MM
-
Machine Weight:
-
7600 kg
-
Bucket capacity:
-
0.1-0.4 CBM
-

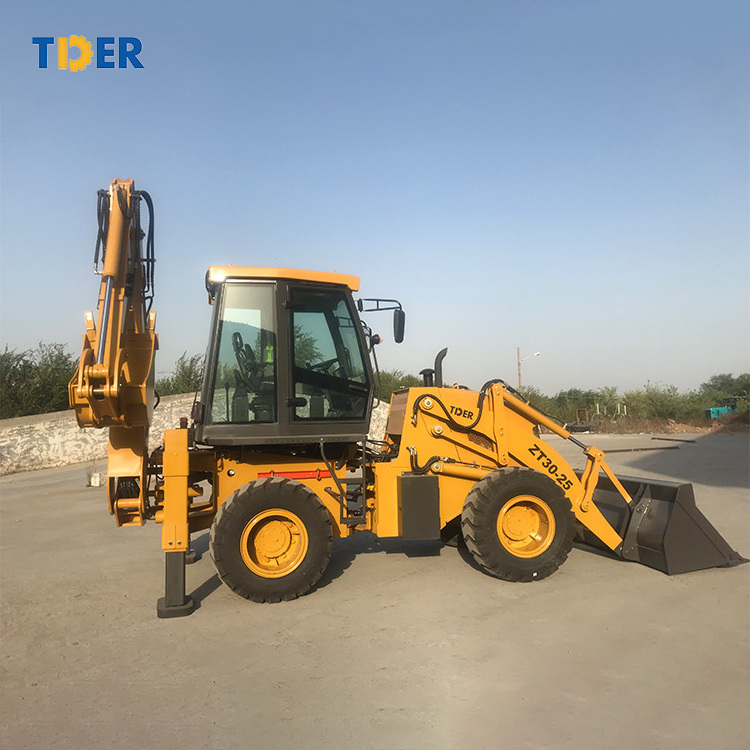

Product name:
-
Backhoe Wheel Loader
-
Engine:
-
Yuchai YC4A105Z-T20
-
Color:
-
Customer's Requiement
-
Bucket Capacity:
-
0.1-0.4 CBM
-
Load capacity:
-
2500 Kg
-
Rated Power:
-
75KW/95HP
-
Dumping height:
-
2795 MM
-
Operating weight:
-
7600 KG
-
Min.Ground Clearance:
-
300 MM
-
Tire:
-
16/70-20
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Australia, South Korea, Algeria, South Africa
-
After-sales Service Provided:
-
Field maintenance and repair service, Video technical support, Online support
-
Certification:
-
CE ISO
Quick Details
-
Engine Brand:
-
DEUTZ
-
Power:
-
75 KW
-
Brand Name:
-
TIDER
-
Place of Origin:
-
Fujian, China
-
Dimension(Long * Breadth * High):
-
5910*2268*3760 MM
-
Machine Weight:
-
7600 kg
-
Bucket capacity:
-
0.1-0.4 CBM
-
Product name:
-
Backhoe Wheel Loader
-
Engine:
-
Yuchai YC4A105Z-T20
-
Color:
-
Customer's Requiement
-
Bucket Capacity:
-
0.1-0.4 CBM
-
Load capacity:
-
2500 Kg
-
Rated Power:
-
75KW/95HP
-
Dumping height:
-
2795 MM
-
Operating weight:
-
7600 KG
-
Min.Ground Clearance:
-
300 MM
-
Tire:
-
16/70-20
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Australia, South Korea, Algeria, South Africa
-
After-sales Service Provided:
-
Field maintenance and repair service, Video technical support, Online support
-
Certification:
-
CE ISO
Product Advantages
|
The specification
|
|
|
|
Overall Dimension
|
|
|
|
Length X Width X Height
|
5910X 2268 X 3760(mm)
|
|
|
Wheel base
|
2250(mm)
|
|
|
Track
|
1640(mm)
|
|
|
Min. ground clearance
|
300(mm)
|
|
|
Main Technical Specification
|
|
|
|
System pressure
|
18Mpa
|
|
|
Load hydraulic system
|
18Mpa
|
|
|
Dig hydraulic system
|
20Mpa
|
|
|
Steering hydraulic system
|
12Mpa
|
|
|
System flow
|
120L/min
|
|
|
Four-wheel drive，whole hydraulic system
|
|
|
|
Total operating weight
|
7600kg
|
|
|
Maximum speed
|
22Km/h
|
|
|
Maximum gradient capacity
|
30°
|
|
|
Loading bucket capacity
|
1.0m3
|
|
|
Rated loading
|
25KG
|
|
|
Maximum articulated height of bucket
|
3400（mm）
|
|
|
Bucket discharge height
|
2795(mm)
|
|
|
Bucket discharge distance
|
1048(mm)
|
|
|
Loading bucket capacity
|
25KN
|
|
|
Bucket hydraulic translation function
|
YES
|
|
|
Bucket lift time
|
6.8S
|
|
|
Bucket lower time
|
2.5S
|
|
|
Bucket discharge time
|
1.2S
|
|
|
Maximum tractive force
|
39KN
|
|
|
Maximum breakout force
|
38KN
|
|
|
Backacter bucket capacity
|
0.1-0.4m3
|
|
|
Backacter discharge height
|
3878（mm）
|
|
|
Maximum digging depth
|
4080~4500(mm)
|
|
|
Maximum digging radius
|
5688(mm)
|
|
|
Bucket slewing angle
|
190°
|
|
|
Bucket digging capacity
|
46KN
|
|
|
Bucket stick digging capacity
|
31KN
|
|
|
Diesel engine
|
|
|
|
Model
|
YUCHAI YC4A105Z-T20
|
|
|
Rated power
|
75KW(100HP)
|
|
|
Rated speed
|
2400 r/min
|
|
|
Cylinder –internal diameter
|
4-102
|
|
|
Maximum torque
|
400N.M
|
|
|
Minimum fuel consumption
|
235 g/kw.h
|
|
|
Displacement
|
4.3L
|
|
|
Transmission system
|
|
|
|
Model of hydraulic pump
|
fixed shaft power shift transmission
|
|
|
Gear shift
|
2forward shift 2 reverse shift
|
|
|
Torque
|
YJ-280
|
|
|
Drive pump
|
CDXaf3016-IL
|
|
|
Flow
|
16ml/r
|
|
|
Work pump
|
CBGj2063
|
|
|
Flow
|
63ml/r
|
|
|
Steering system
|
|
|
|
Type
|
articulated hydraulic steering
|
|
|
Model of steering control valve
|
BZZ5-250
|
|
|
Model of turning control valve
|
YSF25S-00
|
|
|
Steering angle
|
36±1°left or right 36±1°
|
|
|
Minimum turning radius
|
5018(mm)
|
|
|
Axles
|
|
|
|
Main transmission type
|
single reduction
|
|
|
Wheel reduction type
|
wheel reduction
|
|
|
Wheel
|
|
|
|
Tire size
|
16/70-20
|
|
|
Front wheel pressure
|
0.22Mpa
|
|
|
Rear wheel pressure
|
0.20Mpa
|
|
|
Service braking
|
air over hydraulic disc on 4 wheels
|
|
|
Parking brake
|
manual parking brake
|
|
|
Refill Capacity
|
|
|
|
Fuel tank
|
80L
|
|
|
Transmission
|
25L
|
|
|
Front axle
|
9KG
|
|
|
Rear axle
|
9KG
|
|
|
Hydraulic tank
|
140L
|
|
TIDER Industrial Co.,Ltd. is a manufacturer, whichis specialized in the development and production of streamlined engineering machinery.
TIDER wheel loader factory has a production scale of more than 50,000 square meters with annual production capacity of 2000 units wheel loader
After-services:
All the products purchased from Tider enjoy
one year or 2000 hours
(which occurs first) warranty. During the warranty period, if there is any part broken because of quality problem (except easy-damaged parts), the defective parts will be repaired or replaced free of charges
.
1. What Certificate do you have?
TIDER workshop meet with the
ISO9001:2008 Quality System
. All of our products with CE certificate. Some of our products meets the EPA requirements. TIDER never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
TIDER will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally
1 year or 2000 working hours whichever occurs first
. Details to see the TIDER warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can
OEM
for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
6. Delivery time?
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 90 days
