Quick Details
-
Brand Name:
-
RGP
-
Model Number:
-
W4-P2W
-
Operating Temperature:
-
-10℃ ~85 ℃
-
IP level:
-
IP65
-
Product name:
-
water flow switch
-
Usuage:
-
water flow sensor
-
Material material:
-
PP
-
Color:
-
white or black (customized)
-
Approvels:
-
Rohs CE
-
Warrenty:
-
One year
-
working voltage:
-
3~24 VDC
-
Fit for:
-
liquid like water or waste water oil,gas
-
OEM:
-
available
-
Sensing pressure:
-
above 0.3kgf/cm2
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
≥0.3kgf/cm2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RGP
-
Model Number:
-
W4-P2W
-
Operating Temperature:
-
-10℃ ~85 ℃
-
IP level:
-
IP65
-
Product name:
-
water flow switch
-
Usuage:
-
water flow sensor
-
Material material:
-
PP
-
Color:
-
white or black (customized)
-
Approvels:
-
Rohs CE
-
Warrenty:
-
One year
-
working voltage:
-
3~24 VDC
-
Fit for:
-
liquid like water or waste water oil,gas
-
OEM:
-
available
-
Sensing pressure:
-
above 0.3kgf/cm2

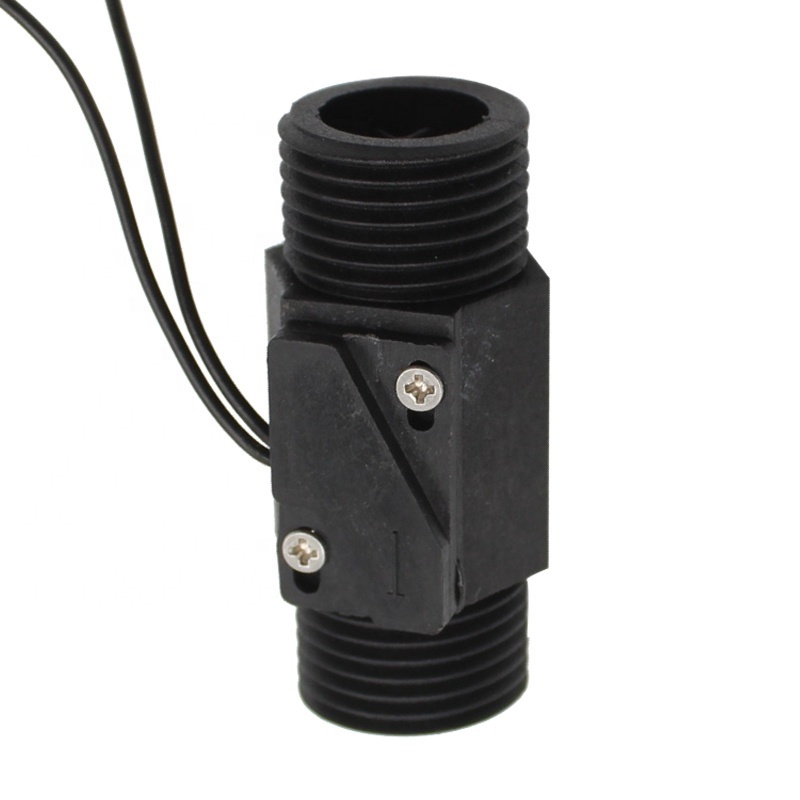

G1/4'' Threading Type Plastic Water Flow Switch For Water Treatment
Figure 1 Figure 2
Parameter of water tank flow controller
|
W4-P2p |
Small power | High power |
| Rated power | 10W | 50W |
| Working voltage | 3 ~24V DC | 220VAC/DC |
| Working carry current | 0.5A | 1.0A |
| Breakdown current | 1A | 1.5A |
| Temperature range | -10 ℃ ~+85 ℃ | |
| Material | PP | |
| Sensing water voltage | above 0.3gf/cm2 | |
| Type of interface | 1/2' (thread cusotmized) | |
| Installation Angle | horizontal,vertical,lean | |
The low price plastic magnetic water tank flow controller are installed on the water pipe through series connection or parallel connection,It is used hydraulic pressure (air pressure) to drive magnetic induction and convey switch signals.
The flow switch send on or off signal according to the flow volume, it is an important component of the fluid flow controls system.If the flow in the pipe is lager than start-up volume, the magnetic valve will be moved by the force of flow pressure, and then it will trigger the reed switch that same sealed in the vavle and send the signal . When the flow volume reduce lower than the start-up volume,magnetic valve core will be forced back to theoriginal place by the reset spring in the vavle.
