- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
World Standard
-
Model Number:
-
S-T568
-
Warranty:
-
12 Months
-
Product name:
-
Used T568 Model Truck Tire Changer for sale
-
Hydraulic pump motor:
-
1.5kw 380V-3Ph-50/60HZ (220V Optional)
-
Color:
-
Red ,Blue
-
Certification:
-
CE
-
Gearbox motor:
-
1.8kw 380V-3Ph-50/60HZ (220V Optional)
-
Weight:
-
635 kgs
-
BEAD BREAKER FORCE:
-
2500kgs
-
Outside Clamping:
-
10"-24"/250-609mm
-
Max.wheel weight:
-
500kg
Quick Details
-
Motor Power:
-
1.5kw
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
220v/110v
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
World Standard
-
Model Number:
-
S-T568
-
Warranty:
-
12 Months
-
Product name:
-
Used T568 Model Truck Tire Changer for sale
-
Hydraulic pump motor:
-
1.5kw 380V-3Ph-50/60HZ (220V Optional)
-
Color:
-
Red ,Blue
-
Certification:
-
CE
-
Gearbox motor:
-
1.8kw 380V-3Ph-50/60HZ (220V Optional)
-
Weight:
-
635 kgs
-
BEAD BREAKER FORCE:
-
2500kgs
-
Outside Clamping:
-
10"-24"/250-609mm
-
Max.wheel weight:
-
500kg

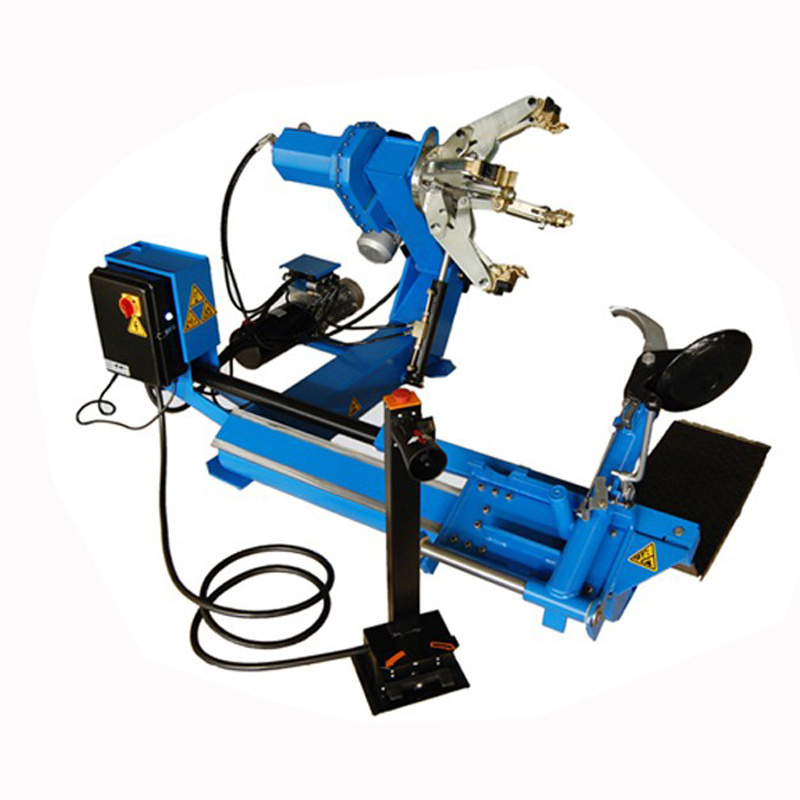

Used S-T568 Model Truck Tire Changer for sale
Product Detail of S-T568 Tire Changer
| Model | S-T568 |
| Rim diameter | 14”-26" |
| Max.wheel weight | 500kg |
| Max.wheel width | 780mm |
| Max.tyre diameter | 1600mm |
| Hydraulic pump motor | 1.5kw 380V-3Ph-50/60HZ (220V Optional) |
| Gearbox motor | 1.8kw 380V-3Ph-50/60HZ (220V Optional) |
| Bead breaker force | 2500kg |
| Operation control voltage | 24V |
| Machine weight approx | 570kg |
| Power | 220/400V 50/60Hz 1P/3P Optional |
| Overall dimensions approx | 2500*2000mm |
| Gross Weight | 647KG |
Operating voltage is 24V, it is safe and stable.
It is suitable for 14 "-26" rims.
Optional Accessories
Standard Accessories
Packing
L×W×H(mm):2030×1580×1000
