Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haida
-
Model Number:
-
HD-G815
-
Focal Length:
-
1.30 Million pixel HD CCD
-
Wavelength Range:
-
S-U
-
Sample cavity size:
-
300*300*80mm
-
Element range:
-
S-U
-
Measuring scope:
-
1ppm-99.99%
-
Sample type:
-
Solid, powder and liquid
-
Measuring time:
-
120-400s ( software auto adjustment )
-
Filter sheet:
-
8 compound filter sheet switch automatically
-
CCD observation:
-
1.30 Million pixel HD CCD
-
Sample micro scope:
-
XY8mm
-
Rated power:
-
Rated power 350W
-
Name:
-
xrf machine
Quick Details
-
Warranty:
-
1 year
-
Size:
-
640*450*412mm
-
Weight:
-
Approx 48Kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haida
-
Model Number:
-
HD-G815
-
Focal Length:
-
1.30 Million pixel HD CCD
-
Wavelength Range:
-
S-U
-
Sample cavity size:
-
300*300*80mm
-
Element range:
-
S-U
-
Measuring scope:
-
1ppm-99.99%
-
Sample type:
-
Solid, powder and liquid
-
Measuring time:
-
120-400s ( software auto adjustment )
-
Filter sheet:
-
8 compound filter sheet switch automatically
-
CCD observation:
-
1.30 Million pixel HD CCD
-
Sample micro scope:
-
XY8mm
-
Rated power:
-
Rated power 350W
-
Name:
-
xrf machine

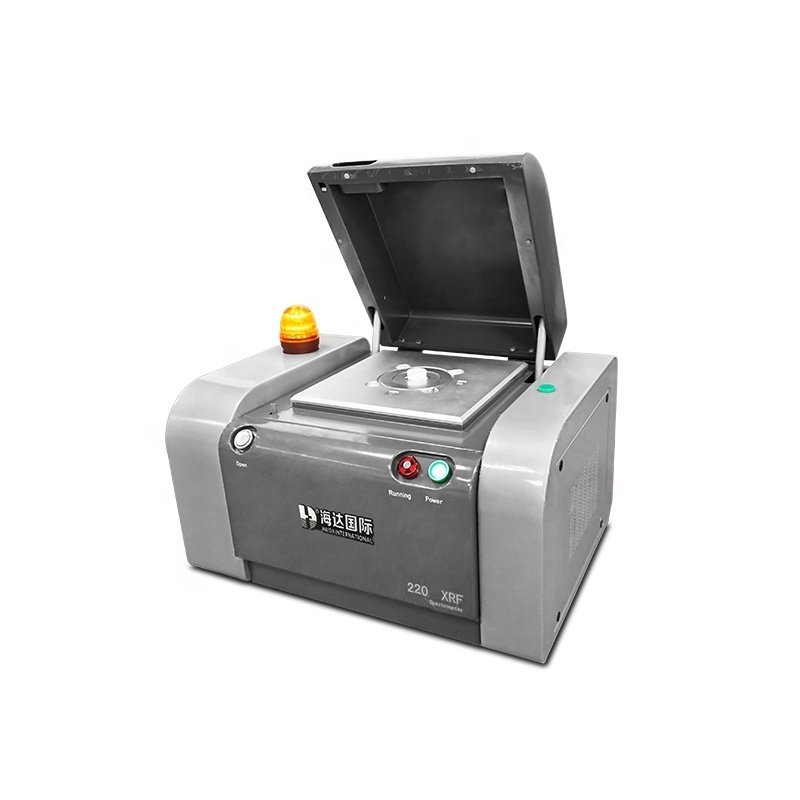

XRF Metal Testing Machine
This machine has advantages of triple radiation protection system, humanized operation interface; comprehensive application of empirical coefficient method & fundamental parameter method V8.0 analysis software. Element measuring range is from Na to U, which can test Pb, Cd, Hg and PBB in the RoHS regulations; Br in PBDE; Cr in Cr6+; Cl and Br in the Halogen-free regulations. It can completely meet the control demand of RoHS/WEEE/Halogen-free. Our machine with spectrum comparison function is used for real time tracing material change and warning in time. It has the incomparable advantage for RoHS/Halogen-free control.
Standard Features
xrf gold testing machine
|
Item |
Description |
|
Sample cavity size |
300*300*80mm |
|
Element range |
S-U |
|
Measuring scope |
1ppm-99.99% |
|
RoHS test limit |
Pb≤5ppm,Cd/Cr/Hg/Br≤2ppm,Cl≤50ppm |
|
Sample type |
Solid, powder and liquid |
|
Measuring time |
120-400s ( software auto adjustment ) |
|
Collimator |
Φ2mm,Φ5mm |
|
Filter sheet |
8 compound filter sheet switch automatically |
|
CCD observation |
1.30 Million pixel HD CCD |
|
Sample micro scope |
XY8mm |
|
Stability |
Repeatability error<0.1% for multi-measurement |
|
Input power |
1-PH, AC220V~240V,50/60Hz |
|
Rated power |
350W |
|
Weight |
approx 48Kg |
|
Instrument size |
640(W)x450(D)x412(H)mm |
xrf gold testing machine
XRF Machine's
Main Configuration of Instrument
XRF Machine's Software
Instrument Features rf gold testing machine
1. Triple radiation protection system (software, hardware, Labyrinth design) protect operator from radiation harm;
2. Adapting new design with optical path, which maximally solves negative effect of air optical path for Cl element measurement to guarantee Cl element stability;
3. The new optimized V8.0 analysis software can auto set the ray tube power according to the sample material, shape and size. It can prolong the life time of ray tube and also fully play detector’s function and increase measurement precision greatly;
4. Combined with series of advanced spectrum processing method including FFT, precise background deductive method, automatic peak search and Quasi-Newton optimize calculation etc;
5. International advance d XRF analysis software which combines with several traditional analysis method such as empirical coefficient method and the fundamental parameter method (FP method), theoretical α coefficient method and so on, guarantees the precision of measuring data;
6. Software can issue report by format Excel, PDF ;
